KING BUS

2-way distributor (Kingbus system) with 15cm cables.

2-way distributor (Kingbus system) with 15cm cables. This distributor can be used to expand the Kingbus system with new light modules. It works like a multiple socket in the home. This 2-way distributor is very suitable for connecting two rear light modules and the infrared transmitter module at the rear of a tractor unit. This means that only one twin cable leads to the front to the central module. This distributor is available with different cable lengths: 15, 30 and 50 cm.

Available immediately, delivery time: 1-4 days

Product number: 10937

8,50 €

Subscriptions

4 distribution board (Kingbus system) with 15cm cables

4-way distributor (Kingbus system) with 15cm cables. This distributor can be used to expand the Kingbus system with new light modules. It works like a multiple socket in the home. This 4-way distributor is very suitable for connecting two rear light modules and the infrared transmitter module at the rear of a tractor unit. This means that only one twin cable leads to the front to the central module. This distributor is available with different cable lengths: 15, 30 and 50 cm.

Available immediately, delivery time: 1-4 days

Product number: 10875

9,50 €

Subscriptions

Steerable kingpin for semi-trailers (Tamiya). For KingBus

Steerable kingpin for semi-trailers (Tamiya). For KingBus system. Measures the articulation angle of the tractor unit and semi-trailer. This kingpin measures the articulation angle/steering angle between the tractor unit and the semi-trailer. It is designed for installation in the Goldhofer low-loader semi-trailer from Veroma/Carson. Of course, it can also be used for custom builds! To mount this steerable kingpin (LKB) on the model, the hole for the pin must be drilled out larger. Otherwise, no further modifications to the semi-trailer are necessary. The connecting cables with plugs are designed for operation with the trailer module with additional functions (IRAM), item 11703. Technical data: Cable length: 150 mm, Potentiometer value: 5 kOhm, Connection: Cable with plug

Available immediately, delivery time: 1-4 days

Product number: 11702

59,00 €

Subscriptions

4 distribution board (Kingbus system) with 50cm cables

4-way distributor (Kingbus system) with 50cm cables. This distributor can be used to expand the Kingbus system with new light modules. It works like a multiple socket in the home. This 4-way distributor is very suitable for connecting two rear light modules and the infrared transmitter module at the rear of a tractor unit. This means that only one twin cable leads to the front to the central module. This distributor is available with different cable lengths: 15, 30 and 50 cm.

Available immediately, delivery time: 1-4 days

Product number: 10876

10,50 €

Subscriptions

Trailer module for the Pistenking Kingbus system. IRAM module

Trailer module to the Pistenking Kingbus system. IRAM module. This trailer module is a true all-rounder. It is connected to the tractor unit via infrared. For data transmission, an infrared transmitter module must be installed in the tractor. (Article 11704). In addition to the normal Kingbus light modules, two motors can also be connected to this trailer module. This allows, for example, the supports or ramps on the trailer are operated. Each motor can also be equipped with an end position switch. The necessary preparations have already been made. Only the limit switches have to be connected to the supplied cable. The module has an input for a potentiometer. This measures the articulation angle between the tractor and the semi-trailer. We offer a separate parts kit (11702) for this purpose. The steering axle control can be switched between "caster" and "reverse" (by pressing a button on the Kingpad). It is also possible to manually control the axles to the desired steering angle - also by pressing a button on the Kingpad! Furthermore, up to 16 LEDs (side marker lights) can be connected in series to the module. The luminosity can be continuously dimmed using the potentiometer on the module. The LEDs switch on with the parking lights. With an additional Kingpad, which is mounted on the trailer, the motors (supports/ramps) can be operated even without an infrared connection to the tractor unit. This is helpful if, for example, the tractor has already been stowed away after a day of driving, but the ramps on the trailer still need to be folded in. All of these special functions can be operated via the existing Kingpad. The "S key" can be used to switch to a second level. The buttons for the light functions are used for the special functions (supports, ramps, fifth wheel plate, steering axles). To explain the second level keys, a narrow sticker is included that describes their functions. This is glued to the Kingpad between the upper and lower row of keys. For more detailed explanation, a sticker in the original Kingpad size is also included. This can be stuck to a free space on the remote control. Please also note the connection plan. In addition to the infrared receiver unit, all cables and plugs are also included. Kingbus systems purchased from November 2015 already support the trailer functions! For "older" modules, we can install a software update on the Kingbus central module! Contact us... Inputs / Outputs: 2x Kingbus outputs for light modules, 2x motor drivers (speed controller on/off/on, with soft start) up to 5A load capacity, end position cut-off for motor drivers, 1x rotating beacon, input for fifth wheel potentiometer (measures articulation angle between tractor and semi-trailer), servo control for steered axles on the trailer, Kingpad input on the trailer (for controlling motor drivers without connection to the tractor), up to 16 side marker lights in series without series resistor (parking lights), dimmable side marker lights, infrared receiver. Technical data: Operating voltage: 6-12 volts, module dimensions: 42 x 34 mm (L x W), cable lengths on the module: 200 mm

Available immediately, delivery time: 1-4 days

Product number: 11703

119,00 €

Subscriptions

Taillight Boards (Pair) for the 7 chamber taillights v

Rear light boards (pair) for the 7-chamber rear lights from Veroma/Carson. Kingbus system. Rear light modules for the 7-chamber rear lights from Veroma/Carson with just two cables. The light modules are delivered fully assembled and tested. They only need to be installed in the model. No adjustments to the housing are necessary! The lights can be controlled via the Kingpad (not included). The central module & Kingpad are not required for remote control systems from the brands Brixl, ScaleArt Commander and Blauzahn. Instead, the Kingbus interface is connected to the assigned receiver slot. This controls the light functions via the standard Kingbus cable!The Kingpad is not required in this case, as the light functions can be operated via switches and buttons on the remote control.Expanding the lighting system with new light modules is simple - just plug them in!Features:- Parking light- Rear fog light- Brake light via driving channel or Kingpad- Reversing light via driving channel or Kingpad- Left / right indicator- Indicator reset via steering channel- Hazard warning lightsScope of delivery:- 2 light modules (cable length 150mm each)Matching rear light housing (not included): Article 1905.

Available immediately, delivery time: 1-4 days

Product number: 10939

78,99 €

Subscriptions

4-way distributor (Kingbus system) with 30cm cables.

4 distribution board (Kingbus system) with 30cm cables.

Available immediately, delivery time: 1-4 days

Product number: 11263

10,00 €

Subscriptions

Kingbus lighting module Universal HECK. Kingbus system.

Kingbus lighting module Universal REAR. Kingbus system. 2 universal modules (1x left, 1x right)

Available immediately, delivery time: 1-4 days

Product number: 11493

56,00 €

Subscriptions

Infrared transmitter module for Pistenking Kingbus system.

Infrared transmitter module for the Pistenking Kingbus system. The infrared transmitter module is easily connected to the central module or a distribution box using a standard Kingbus cable. It transmits data wirelessly from the truck to the trailer via infrared. A servo for unlocking the fifth wheel/trailer hitch can be connected to the second output. It can later be operated via the Kingpad. Kingbus systems purchased from November 2015 onwards already support the trailer functions! A software update can be installed on "older" modules! Please contact us! Outputs: Connected infrared transmitter diode; Connection for fifth wheel/trailer hitch unlocking. Technical data: Module dimensions: 34 x 12 mm (L x W); Cable lengths: 150 mm

Available immediately, delivery time: 1-4 days

Product number: 11704

38,00 €

Subscriptions

Kingbus lighting set for the VOLVO FH16 / Tamiya model

Kingbus lighting set for the VOLVO FH16 model from Tamiya. Kingbus system. Complete set of central module, light boards, various cables and distributors and accessories. The light modules are delivered fully assembled and tested. They only need to be installed in the model. Adjustments to the housing may be necessary!Light boards for the Volvo FH16 from Tamiya with only two cables.The light modules are delivered fully assembled and tested. They only need to be installed in the model. Little or no adjustments to the housing are necessary!The lights can be controlled via the Kingpad (not included).The central module & Kingpad are not required for remote control systems from the brands Brixl, ScaleArt Commander and Blauzahn.Instead, the Kingbus interface is connected to the assigned receiver slot. This controls the lighting functions via the standard Kingbus cable!The Kingpad is not required in this case, as the lighting functions can be operated via switches and buttons on the remote control.Expanding the lighting system with new lighting modules is simple - just plug them in!Features:L-shaped parking lightDipped beam (only with parking light)High beam (latching only with dipped beam)High beam flasherFog light and rear fog lightBrake light via driving channelReversing light via driving channel or KingpadWiper indicators left / right and front / rearIndicator reset via steering channelAutomatic hazard warning lights Cornering light when steering or blinkingXenon effect!Scope of delivery:1 Kingbus central module dimensions: 34x23,5x8mm2 patch cable for connecting the central module to the receiver1 Kingbus 4-way distributor 50cm1 Kingbus 4-way distributor 15 cm6 light modules (cable length 150mm each)1 universal module DACH2 headlight inserts with light guidesTechnical data:Operating voltage: 5V via BECCurrent consumption: approx. 20mA (at rest)

Available immediately, delivery time: 1-4 days

Product number: 11711

269,00 €

Subscriptions

Kingpad for the Kingbus system for mounting on the remote control transmitter

Kingpad for the Kingbus system for mounting on the remote control transmitter. A Kingbus lighting system is required on the vehicle side. (not included).This pad enables the control of the Kingbus lighting system in the model. The various lights can be switched on and off at the touch of a button. Installation is very simple.In the current version, the Kingpad has 2 levels between which you can switch back and forth using the S button.Level 1 controls all light functions, level 2 controls special functions such as ramps, supports, axle steering, fifth wheel plate (unlock) and special functions.Technical data:Operating voltage: 3,3 - 5V (depending on the transmitter)Connection cable: 3-pinButtons: 12Dimensions: 63 x 25 x 4mmFeatures:11 buttons for light control1 button for level switching11 buttons for special functionsWorks parallel to the steering channel (in the middle position!)No additional channel required22 control functions are possible

Available immediately, delivery time: 1-4 days

Product number: 12281

40,00 €

Subscriptions

Kingbus lighting module Universal DACH. Kingbus system.

Kingbus lighting module Universal DACH. Kingbus system. 1 universal module with instructions.

Available immediately, delivery time: 1-4 days

Product number: 11705

32,00 €

Subscriptions

Central module of the Pistenking Kingbus system

Central module of the Pistenking Kingbus system. The Kingbus is a two-wire bus system that enables multiple lighting functions via just two wires. The power supply for the lighting modules is also provided via these two wires. The central module receives commands from the Kingpad (remote control), evaluates them and sends the desired lighting functions to the lighting modules. In order to reproduce functions such as brake and reversing lights as well as indicators and cornering lights as faithfully as possible, the steering and driving channels are connected to the central module. The steering and driving channels are looped from the receiver to the central module using servo patch cables. The speed controller and steering servo are then connected to the outputs of the central module.Features:Parking lightDipped beam (only with parking light)High beam (latching only with dipped beam)High beam flasher (always possible)Automatic short beam when indicating or steeringFog light and rear fog lightBrake light via driving channelReversing light via driving channel or KingpadIndicator reset via steering channelHazard warning lights, rotating beacon/li>automatic. Cornering light when steering or flashingWork lights (front/rear)Xenon effect with the light functions!Scope of delivery:1 Kingbus central module dimensions: 34x23,5x8mm3 patch cables for connecting the central module to the receiver1 Kingbus patch cable 50cm1 Kingbus 4-way distributor 15 cmDetailed instructionsTechnical data:Operating voltage: 5V via BECDimensions: 34 x 23,5 x 8mmCurrent consumption: approx. 20mA (at rest)Max. current consumption 750mAInputs:1x driving channel1x steering channel1x KingPad10x light functions (ground switching)Outputs:1x driving channel1x steering channel1x KindPad (optional)3x Kingbus (max. 750mA short-circuit proof)2x switching outputs (max. 1A each short-circuit proof)

Available immediately, delivery time: 1-4 days

Product number: 12446

108,99 €

Subscriptions

4-way distributor (Kingbus system) without cable.

Available immediately, delivery time: 1-4 days

Product number: 12449

6,50 €

Subscriptions

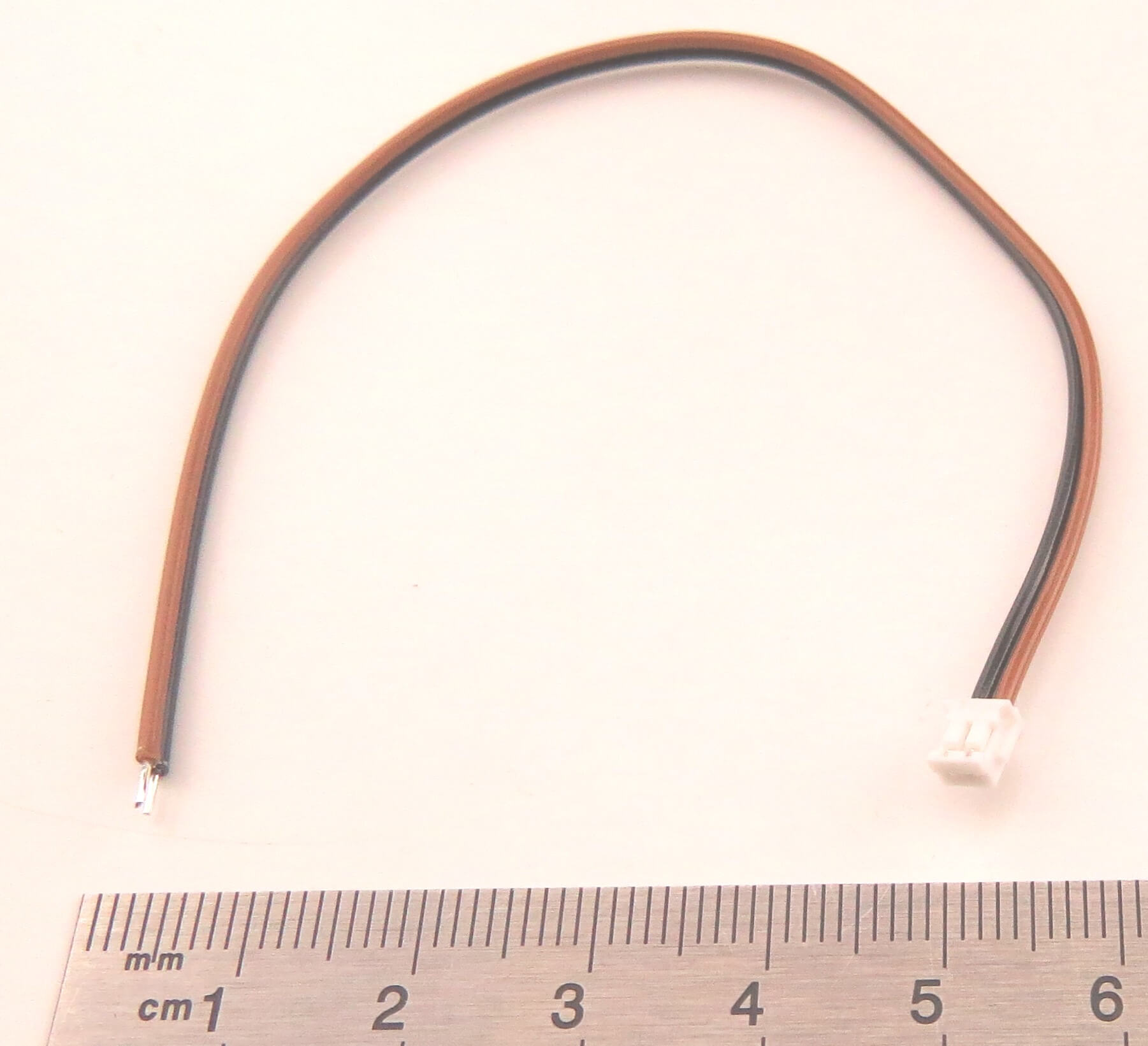

Kingbus connector with 15 cm wire. Suitable for the Kingbus system

Kingbus connector with 15 cm wire. 2-pin. Suitable for the Kingbus system.

Available immediately, delivery time: 1-4 days

Product number: 13314

1,99 €

Subscriptions

Kingbus lighting module universal roof with indicator

Kingbus lighting module universal DACH with indicator. Kingbus system. 1 universal module with instructions.

Available immediately, delivery time: 1-4 days

Product number: 12447

32,00 €

Subscriptions

Infrared receiver diode for the Pistenking Kingbus system 3-pin

Infrared receiver diode for the Pistenking Kingbus system. Original spare part with 3-pin SH socket. 1 piece. Replacement diode for the IRAM module.

Available immediately, delivery time: 1-4 days

Product number: 13319

7,15 €

Subscriptions

Kingbus lighting set Univeral Cockpit Kingbus system. To the

Kingbus lighting set UniversalCockpit Kingbus system. For installation in the cockpit. Individual LEDs are used (series resistor NOT necessary). Universal modules, e.g. for lighting a complete cockpit. Individual LEDs can be connected to this module. No additional series resistors are required for this, as these are already integrated in the module. The color of the LEDs to be connected is color-coded on the module. One LED can be connected to each output. Several LEDs (up to 100 mA total) can be connected to the outputs marked "HC". However, the series resistor must be calculated and installed between the universal module and the LED (only with HC output!). The light modules are delivered fully assembled and tested. They only need to be installed in the model. No adjustments to the housing are necessary!The modules are delivered fully assembled and tested.The lights can be controlled via the Kingpad (not included).Features of cockpit module outputs:Parking lightWorking light frontHigh beamIndicator left / rightHazard warning lightParking light (HC output)+5V connectionTechnical data:Dimensions: 27x15x8mmCable length: 300mmScope of delivery:1 universal module with instructions

Available immediately, delivery time: 1-4 days

Product number: 11439

32,00 €

Subscriptions

Kingbus lighting set for the ACTROS model from Tamiya

Kingbus lighting set for the ACTROS model from Tamiya. Kingbus system. Complete set of central module, light boards, various cables and distributors and accessories. The light modules are delivered fully assembled and tested. They only need to be installed in the model. No adjustments to the housing are necessary!Light boards for the Mercedes-Benz Actros GigaSpace from Tamiya with only two cables.Suitable for Actros 1851 and 3363.The light modules are delivered fully assembled and tested. They only need to be installed in the model. No adjustments to the housing are necessary!The lights can be controlled via the Kingpad (not included).The central module & Kingpad are not required for remote control systems from the brands Brixl, ScaleArt Commander and Blauzahn.Instead, the Kingbus interface is connected to the assigned receiver slot. This controls the lighting functions via the standard Kingbus cable! The Kingpad is not required in this case, as the lighting functions can be operated via switches and buttons on the remote control. Expanding the lighting system with new lighting modules is simple - just plug them in! Features: - Parking light - Low beam (only with parking light) - High beam (latching only with low beam) - Headlight flasher - Fog light - Left / right indicator - Indicator reset via steering channel - Hazard warning lights - Automatic. Cornering light when steering or blinking - Xenon effect!Scope of delivery:- 1 Kingbus central module dimensions: 34x23,5x8mm- 2 patch cables for connecting the central module to the receiver- 1 Kingbus patch cable 50cm- 1 Kingbus 4-way distributor- 4 light modules (cable length 150mm each)- 4 LEDs for indicators and position lights (pluggable)- Fiber optic cable for daytime running lights- 2 fiber optic cable housingsTechnical data:Operating voltage: 5V via BECCurrent consumption: approx. 20mA (at rest)

Available immediately, delivery time: 1-4 days

Product number: 10935

219,00 € 229,00 € (4.37% saved)

Subscriptions

Taillight Boards (Pair) for AROCS 3348 by Tamiya.

Rear light boards (pair) for AROCS 3348 from Tamiya. Kingbus system. Rear light modules for the Mercedes-Benz Arocs 3348 from Tamiya with just two cables. (Rear tipper).The light modules are delivered fully assembled and tested.They only need to be installed in the model. No adjustments to the housing are necessary!The lights can be controlled via the Kingpad (not included).The central module & Kingpad are not required for remote control systems from the brands Brixl, ScaleArt Commander and Blauzahn.Instead, the Kingbus interface is connected to the assigned receiver slot. This controls the light functions via the standard Kingbus cable!The Kingpad is not required in this case, as the light functions can be operated via switches and buttons on the remote control.Expanding the lighting system with new light modules is simple - just plug them in!Features:- Parking light- Rear fog light- Brake light via driving channel- Reversing light via driving channel or Kingpad- Left / right indicator- Indicator reset via steering channel- Hazard warning lightsScope of delivery:- 2 light modules (cable length 150mm each)

Available immediately, delivery time: 1-4 days

Product number: 11059

78,99 €

Subscriptions

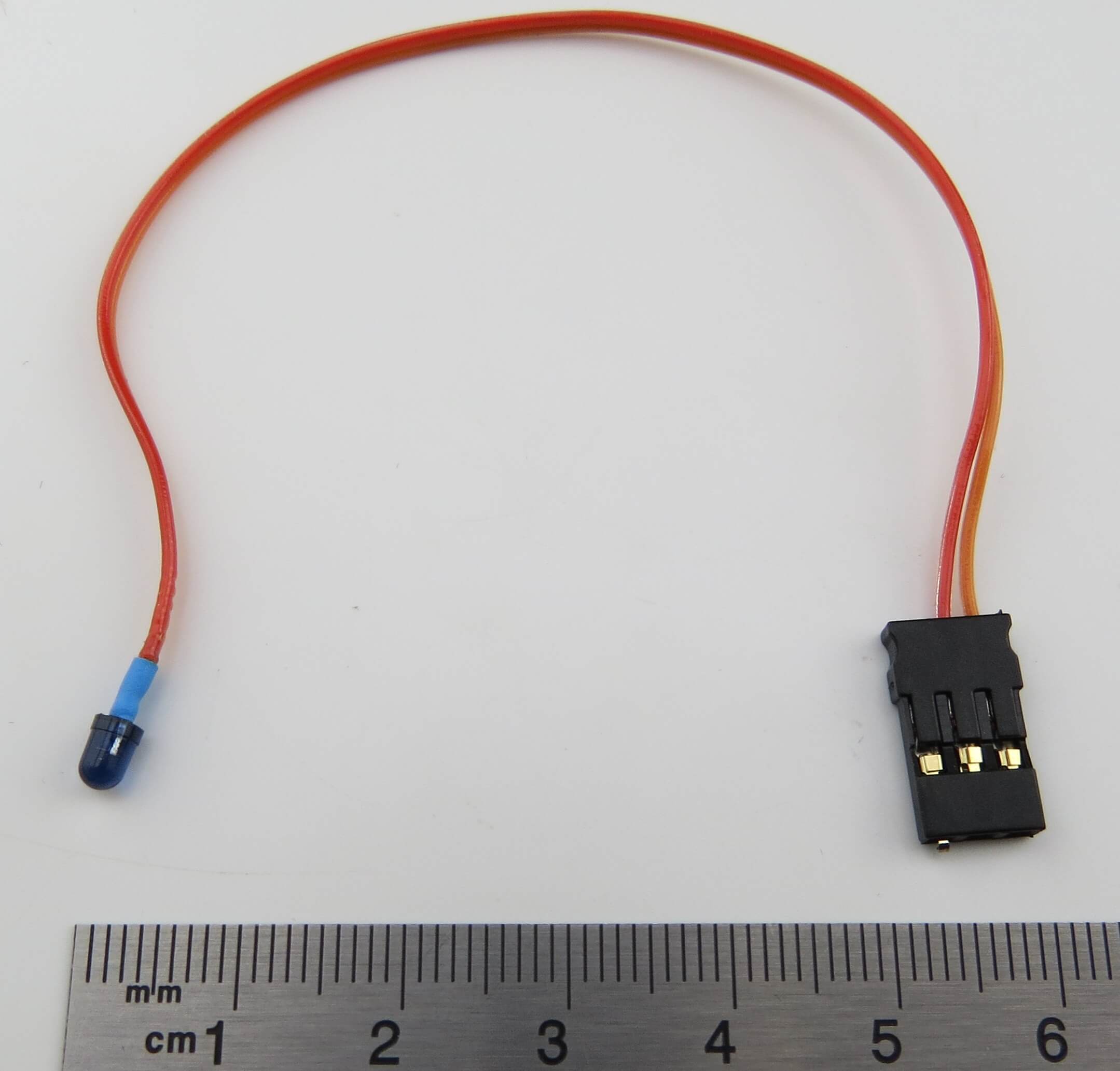

Infrared transmitter diode for Pistenking Kingbus system with plug

Infrared transmitter diode for the Pistenking Kingbus system. Original spare part with IR servo plug. 1 piece. Replacement diode for the infrared transmitter module from Pistenking.

Available immediately, delivery time: 1-4 days

Product number: 13318

7,15 €

Subscriptions

Front headlight circuit boards (pair) for AROCS by Tamiya

Headlight circuit boards (pair) for Tamiya Arocs models. Kingbus system. Headlight modules for the Tamiya Mercedes-Benz Arocs with only two wires. The light modules are delivered fully assembled and tested. They simply need to be installed in the model. No modifications to the body are necessary! The lights can be controlled via the Kingpad (not included). For Brixl, ScaleArt Commander, and Bluetooth radio control systems, the central module and Kingpad are not required. Instead, the Kingbus interface is connected to the designated receiver port. This controls the lighting functions via the standard Kingbus cables! The Kingpad is not required in this case, as the lighting functions can be operated via switches and buttons on the remote control. Expanding the lighting system with new light modules is simple – just plug them in! Features: Parking lights, Low beam (only with parking lights), High beam (latching, only with low beam), Flash-to-pass, Fog lights, Left/right turn signals, Turn signal cancellation via steering channel, Hazard lights, Automatic cornering lights when steering or indicating, Xenon effect! Scope of delivery: 2 light modules (cable length 150mm each), 4 LEDs for turn signals and position lights (pluggable), Fiber optic cable for daytime running lights, 2 fiber optic cable housings

Ready to ship in 5 days, delivery time 1-4 days

Product number: 11057

98,00 €

Subscriptions

Headlight boards (pair) for MAN from Tamiya. Kin

Headlight boards (pair) for MAN from Tamiya. Kingbus system. Headlight modules for the Mercedes-Benz Actros GigaSpace from Tamiya with just two cables.The light modules are delivered fully assembled and tested. They only need to be installed in the model. No adjustments to the housing are necessary!The lights can be controlled via the Kingpad (not included).The central module & Kingpad are not required for remote control systems from the brands Brixl, ScaleArt Commander and Blauzahn.Instead, the Kingbus interface is connected to the assigned receiver slot. This controls the light functions via the standard Kingbus cable!The Kingpad is not required in this case, as the light functions can be operated via switches and buttons on the remote control.Expanding the lighting system with new light modules is simple - just plug them in!Features:- Parking light- Low beam (only with parking light)- High beam (latching only with low beam)- Headlight flasher- Fog light- Left / right indicator- Indicator reset via steering channel- Hazard warning lights- Automatic cornering light when steering or blinking- Xenon effect!Scope of delivery:- 2 light modules (cable length 150mm each)- 4 LEDs for indicators and position lights (plug-in)

Available immediately, delivery time: 1-4 days

Product number: 11056

98,00 €

Subscriptions

Kingbus lighting module universal FRONT Kingbus system. M.

Kingbus lighting module Universal FRONT Kingbus system. With xenon effect. 2 universal modules (1x left, 1x right). Universal modules for mounting on the front bumper of the model. Individual LEDs can be connected to the module. No additional series resistors are required as these are already integrated in the module!The color of the LED to be connected is marked on the module with a colored dot. One LED can be connected per output.Several LEDs (up to 100mA total) can be connected to the outputs marked "HC". However, the series resistor must be calculated and installed between the universal module and the LED (only with HC output)!The modules are delivered ready for installation and tested. The connection to the Kingbus lighting system is simple - just plug it in!Please also note the connection plan in the picture series.Design:The modules are available in two versions. These differ in the xenon effect (flashing) when the individual light functions are switched on. Depending on the model type, you can choose whether your model has xenon or halogen headlights (without flashing). Outputs:Parking lightDipped beam (only with parking light)High beam (latching only with dipped beam)Fog lightIndicator left / rightHazard warning lightsAutomatic cornering light when steering or blinking+5 voltsTechnical data:Module dimensions: 27 x 15 x 8mm (LxWxH)Cable length: 150mmScope of delivery:2 universal modules (left and right)

Available immediately, delivery time: 1-4 days

Product number: 12079

56,00 €

Subscriptions

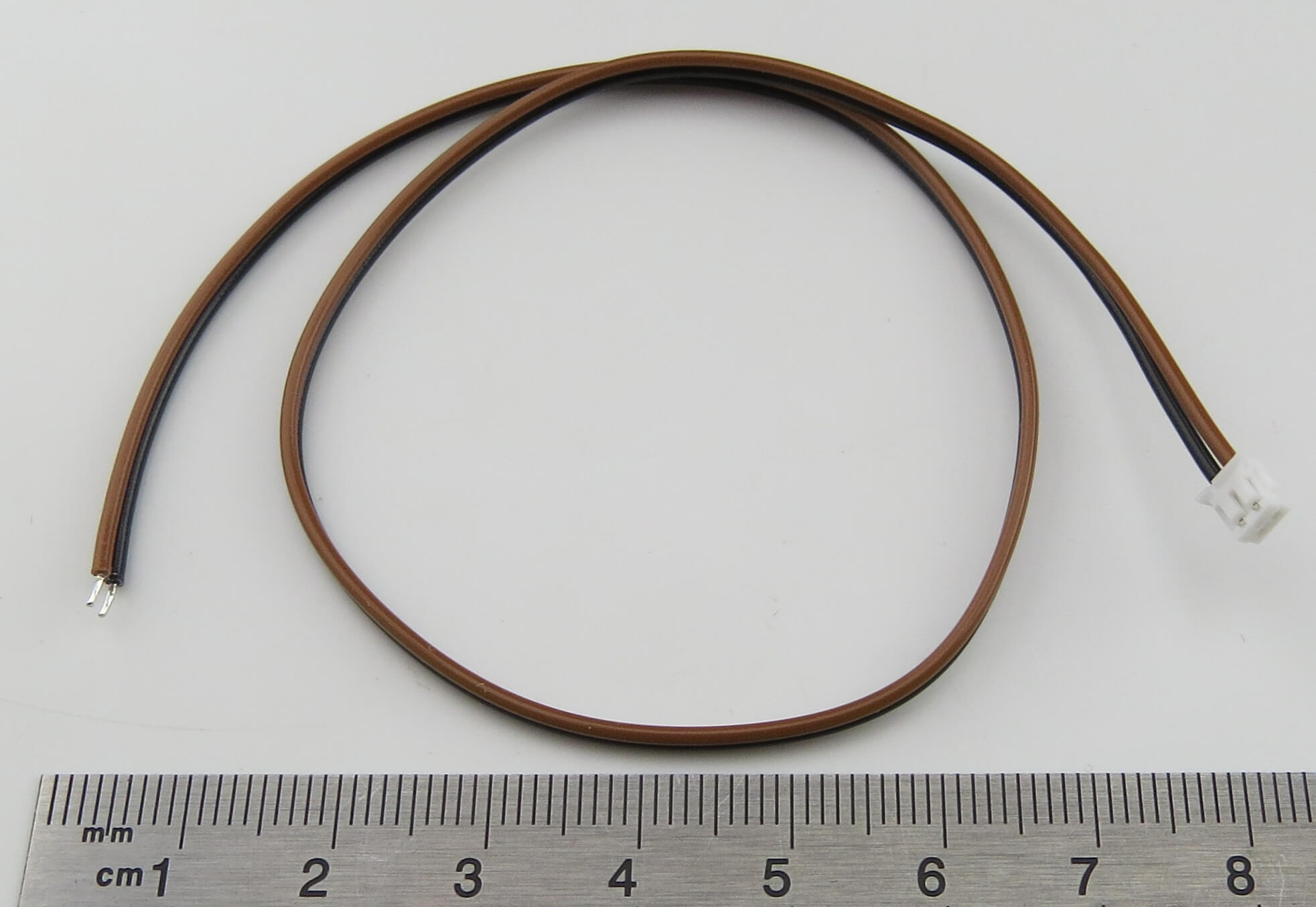

Kingbus connector with 30 cm wire. Suitable for the Kingbus system

Kingbus connector with 30 cm wire. 2-pin. Suitable for the Kingbus system.

Available immediately, delivery time: 1-4 days

Product number: 13315

2,50 €

Subscriptions

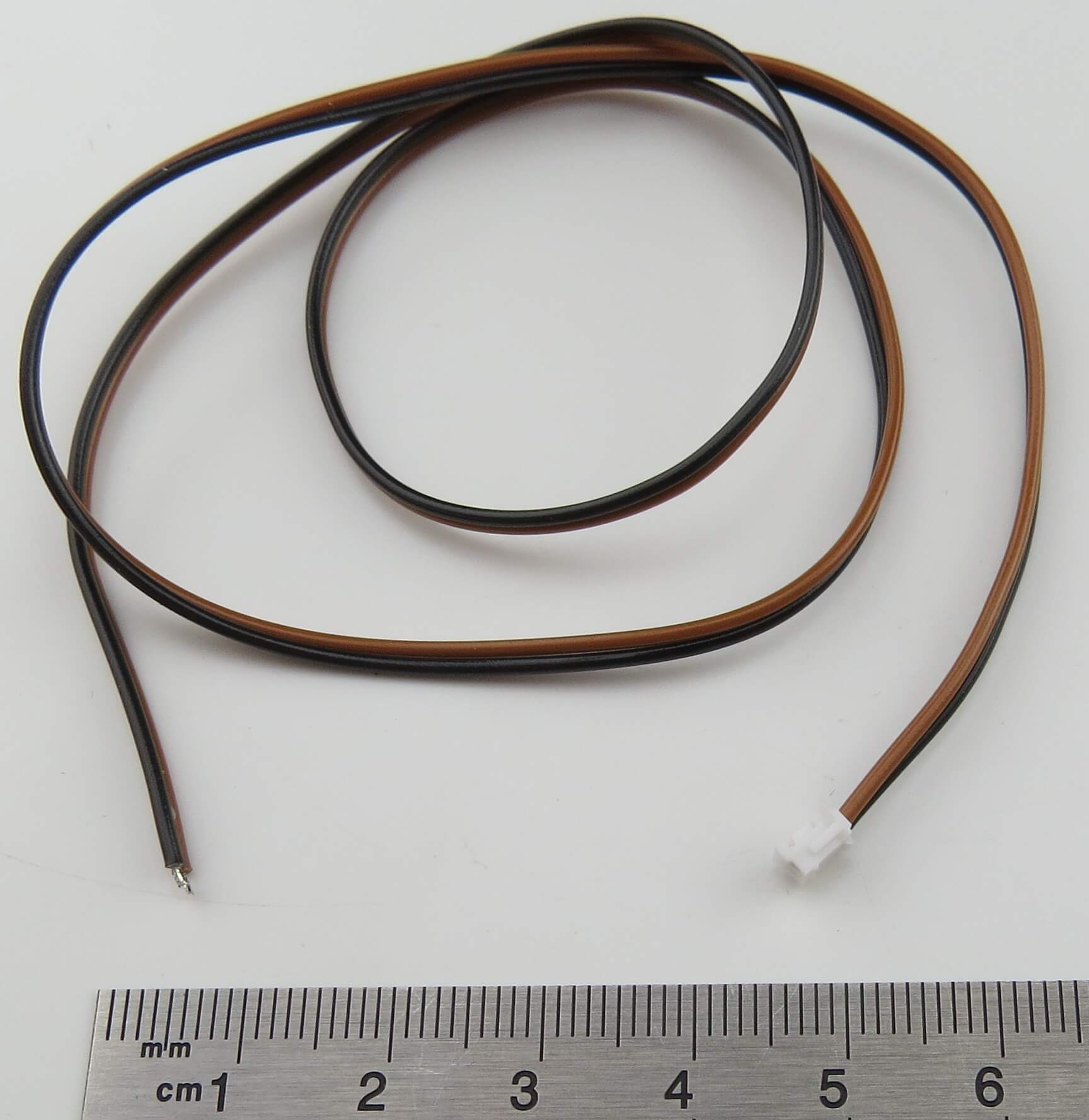

Kingbus connector with 50 cm wire. Suitable for the Kingbus system

Kingbus connector with 50 cm wire. 2-pin. Suitable for the Kingbus system.

Available immediately, delivery time: 1-4 days

Product number: 13316

2,99 €

Subscriptions

Rear light circuit boards (pair) for the 6-chamber rear lights

Rear light boards (pair) for the 6-chamber rear lights from Veroma/Carson. Kingbus system. Rear light modules for the 6-chamber rear lights from Veroma/Carson with just two cables. The light modules are delivered fully assembled and tested. They only need to be installed in the model. No adjustments to the housing are necessary! The lights can be controlled via the Kingpad (not included). The central module & Kingpad are not required for remote control systems from the brands Brixl, ScaleArt Commander and Blauzahn. Instead, the Kingbus interface is connected to the assigned receiver slot. This controls the light functions via the standard Kingbus cable!The Kingpad is not required in this case, as the light functions can be operated via switches and buttons on the remote control.Expanding the lighting system with new light modules is simple - just plug them in!Features:- Parking light- Rear fog light- Brake light via driving channel or Kingpad- Reversing light via driving channel or Kingpad- Left / right indicator- Indicator reset via steering channel- Hazard warning lightsScope of delivery:- 2 light modules (cable length 150mm each)Matching rear light housing (not included): Article 3134.

Available immediately, delivery time: 1-4 days

Product number: 10938

78,99 €

Subscriptions

Kingbus lighting set Univeral.XENON. Complete set Univers

Kingbus lighting set universal.XENON. Complete universal set. Kingbus system. Complete set of central module, light boards, various cables and distributors and accessories. Universal modules for lighting a complete model. Individual LEDs can be connected to each module. No additional series resistors are required for this, as these are already integrated in the module. The color of the LEDs to be connected is marked on the module with a colored dot. One LED can be connected to each output. Several LEDs (up to 100 mA total) can be connected to the outputs marked "HC". However, the series resistor must be calculated and installed between the universal module and the LED (only with HC output!). The light modules are delivered fully assembled and tested. They only need to be installed in the model. No adjustments to the housing are necessary!These modules are available in 2 versions: WITH Xenox effect (flashes when switched on) or as halogen headlights (without flashing).The modules are delivered fully assembled and tested.The lights can be controlled via the Kingpad (not included).Features of front module outputs:Parking lightDipped beam (only with parking light)High beam (latching only with dipped beam)High beam flasherFog lightIndicator left / rightHazard warning lightsautomatic. Cornering light when steering or blinkingXenon effect!+5V connectionRear module outputs:Parking lightRear fog lightBrake light via driving channelReversing light via driving channel or KingpadLeft/right indicatorHazard warning light+5V connectionTechnical data:Dimensions per module: 27x15x8mmCable length per module: 150mmScope of delivery:1 Kingbus central module dimensions: 34x23,5x8mm3 patch cables for connecting the central module to the receiver1 Kingbus patch cable 50cm1 Kingbus 4-way distributor2 universal modules for the front (left/right)2 universal modules for the rear (left/right)

Available immediately, delivery time: 1-4 days

Product number: 11092

198,99 €

Subscriptions

Kingbus lighting module Universal FRONT Kingbus system

Kingbus Universal Front Lighting Module for the Kingbus System. With halogen effect, 2 universal modules (1x left, 1x right). Universal modules for mounting on the model's front bumper. Individual LEDs can be connected to the module. No additional resistors are required, as these are already integrated into the module! The color of the LED to be connected is indicated on the module with a colored dot. One LED can be connected to each output. Multiple LEDs (up to 100mA total) can be connected to the outputs marked "HC". However, the resistor must be calculated and installed between the universal module and the LED (only for HC outputs)! The modules are delivered ready for installation and tested. Connection to the Kingbus lighting system is simple - just plug it in! Please also refer to the connection diagram in the image gallery. Version: The modules are available in two versions. These differ in the xenon effect (flashing) when the individual lighting functions are switched on. Depending on the model type, you can select whether your vehicle has xenon or halogen headlights (without flashing). Outputs: Parking lights, Low beam (only with parking lights), High beam (latching, only with low beam), Headlight flasher, Fog lights, Left/right turn signals, Hazard warning lights, Automatic cornering lights when steering or indicating, +5 volts. Technical data: Module dimensions: 27 x 15 x 8 mm (L x W x H), Cable length: 150 mm. Scope of delivery: 2 universal modules (left and right).

Available immediately, delivery time: 1-4 days

Product number: 12670

56,00 €

Subscriptions

Kingbus lighting set for the AROCS model from Tamiya. K

Kingbus lighting set for the AROCS model from Tamiya. Kingbus system. Complete set of central module, light boards, various cables and distributors and accessories. The light modules are delivered fully assembled and tested. They only need to be installed in the model. No adjustments to the housing are necessary!Light boards for the Mercedes-Benz Arocs 3363 from Tamiya with just two cables.The light modules are delivered fully assembled and tested. They only need to be installed in the model. No adjustments to the housing are necessary!The lights can be controlled via the Kingpad (not included).The central module & Kingpad are not required for remote control systems from the brands Brixl, ScaleArt Commander and Blauzahn.Instead, the Kingbus interface is connected to the assigned receiver slot. This controls the lighting functions via the standard Kingbus cable!The Kingpad is not required in this case, as the lighting functions can be operated via switches and buttons on the remote control.Expanding the lighting system with new lighting modules is simple - just plug them in!Features:Parking lightDipped beam (only with parking light)High beam (latching only with dipped beam)High beam flasherFog lightBrake light via driving channelReversing light via driving channel or KingpadIndicator left / rightIndicator reset via steering channelHazard warning lightsautomatic. Cornering light when steering or blinkingXenon effect!Scope of delivery:1 Kingbus central module dimensions: 34x23,5x8mm2 patch cable for connecting the central module to the receiver1 Kingbus patch cable 50cm1 Kingbus 4-way distributor4 light modules (cable length 150mm each)4 LEDs for indicators and position lights (pluggable)2 housings for daytime running lightsTechnical data:Operating voltage: 5V via BECCurrent consumption: approx. 20mA (at rest)

Ready to ship in 5 days, delivery time 1-4 days

Product number: 11060

229,00 €

Subscriptions

Taillight boards (pair) for MAN from Tamiya. Kingbus-Sys

Rear light boards (pair) for MAN from Tamiya. Kingbus system. Rear light modules for the MANs from Tamiya with just two cables. The light modules are delivered fully assembled and tested. They only need to be installed in the model. No adjustments to the housing are necessary! The lights can be controlled via the Kingpad (not included). The central module & Kingpad are not required for remote control systems from the brands Brixl, ScaleArt Commander and Blauzahn. Instead, the Kingbus interface is connected to the assigned receiver slot. This controls the light functions via the standard Kingbus cable!The Kingpad is not required in this case, as the light functions can be operated via switches and buttons on the remote control.Expanding the lighting system with new light modules is simple - just plug them in!Features:- Parking light- Rear fog light- Brake light via driving channel- Reversing light via driving channel or Kingpad- Left / right indicator- Indicator reset via steering channel- Hazard warning lightsScope of delivery:- 2 light modules (cable length 150mm each)

Available immediately, delivery time: 1-4 days

Product number: 11058

78,99 €

Subscriptions

Headlight PCBs (Pair) for ACTROS from Tamiya

Headlight circuit boards (pair) for ACTROS from Tamiya. Kingbus system. Suitable for Actros 1851 and 3363. Headlight modules for the Mercedes-Benz Actros GigaSpace from Tamiya with just two cables. Suitable for the Actros 1851 and Actros 3363. The light modules are delivered fully assembled and tested. They simply need to be installed in the model. No modifications to the housing are necessary! The lights can be controlled via the Kingpad (not included). The central module and Kingpad are not required for remote control systems from the Brixl, ScaleArt Commander, and Bluetooth brands. Instead, the Kingbus interface is connected to the designated receiver slot. This controls the lighting functions via the standard Kingbus cable! The Kingpad is not required in this case, as the lighting functions can be operated via switches and buttons on the remote control. Expanding the lighting system with new light modules is simple - simply plug it in! Features: - Parking light - Low beam (only with parking light) - High beam (latching only with low beam) - High beam flasher - Fog light - Left/right indicator - Indicator reset via steering channel - Hazard warning lights - Automatic cornering light when steering or signaling - Xenon effect! Scope of delivery: - 2 light modules (cable length 150mm each) - 4 LEDs for indicators and position lights (pluggable) - Fiber optic cable for daytime running light - 2 fiber optic cable housings

Available immediately, delivery time: 1-4 days

Product number: 10873

98,00 €

Subscriptions

Taillight boards (pair) for ACTROS from Tamiya

Rear light circuit boards (pair) for the ACTROS 1851/3363 and AROCS 3363 from Tamiya. Kingbus system. Rear light modules for the Mercedes-Benz Actros GigaSpace and the Arocs 3363 from Tamiya with just two cables. The light modules are delivered fully assembled and tested. They simply need to be installed in the model. No modifications to the housing are necessary! The lights can be controlled via the Kingpad (not included). The central module and Kingpad are not required for remote control systems from the Brixl, ScaleArt Commander, and Bluetooth brands. Instead, the Kingbus interface is connected to the designated receiver slot. This controls the lighting functions via the standard Kingbus cable! The Kingpad is not required in this case, as the lighting functions can be operated via switches and buttons on the remote control. Expanding the lighting system with new light modules is simple - simply plug them in! Features: - Parking light - Rear fog light - Brake light via drive channel - Reversing light via drive channel or Kingpad - Left/right turn signals - Turn signal reset via steering channel - Hazard warning lights Scope of delivery: - 2 light modules (cable length 150mm each)

Available immediately, delivery time: 1-4 days

Product number: 10874

78,99 €

Subscriptions

Kingpad-IRAM for the Kingbus system for mounting on the trailer

Kingpad-IRAM for the Kingbus system, for mounting on the semi-trailer/trailer. This module is NOT attached to the remote control! This Kingpad with 4 buttons (2 functions) is attached to the semi-trailer/trailer, not to the remote control! This allows the ramps and supports (or individual special functions) to be operated even without the remote control. The semi-trailer/trailer only needs to be connected to the battery; it does not require a radio connection to the tractor unit! This can be very useful, for example, during the construction phase. This Kingpad is also very helpful at an event, for example, if the tractor unit is already stowed in the car during loading in the evening and the ramps on the semi-trailer still need to be retracted because it was forgotten earlier. Technical data: Dimensions: 43 x 13 x 4 mm, Cable length: 100 mm, Connection: Cable with plug, Voltage: Supplied by connecting to the IRAM module, Buttons: 4 (2 functions)

Available immediately, delivery time: 1-4 days

Product number: 13634

24,99 €

Subscriptions

Kingbus lighting set for the MAN model from Tamiya. Kin

Kingbus lighting set for the MAN model from Tamiya. Kingbus system. Complete set of central module, light boards, various cables and distributors and accessories. The light modules are delivered fully assembled and tested. They only need to be installed in the model. No adjustments to the housing are necessary!Light boards for the MANs from Tamiya with only two cables.The light modules are delivered fully assembled and tested. They only need to be installed in the model. No adjustments to the housing are necessary!The lights can be controlled via the Kingpad (not included).The central module & Kingpad are not required for remote control systems from the brands Brixl, ScaleArt Commander and Blauzahn.Instead, the Kingbus interface is connected to the assigned receiver slot. This controls the lighting functions via the standard Kingbus cable! The Kingpad is not required in this case, as the lighting functions can be operated using switches and buttons on the remote control. Expanding the lighting system with new lighting modules is simple - just plug them in! Features: - Parking light - Low beam (only with parking light) - High beam (latching only with low beam) - Headlight flasher - Fog light and rear fog light - Brake light via driving channel - Reversing light via driving channel or Kingpad - Left / right indicator - Indicator reset via steering channel - Hazard warning lights - Automatic. Cornering light when steering or blinking - Xenon effect!Scope of delivery:- 1 Kingbus central module dimensions: 34x23,5x8mm- 2 patch cables for connecting the central module to the receiver- 1 Kingbus patch cable 50cm- 1 Kingbus 4-way distributor- 4 light modules (cable length 150mm each)- 4 LEDs for indicators and position lights (hard-wired)Technical data:Operating voltage: 5V via BECCurrent consumption: approx. 20mA (at rest)

Ready to ship in 5 days, delivery time 1-4 days

Product number: 11061

229,00 €

Subscriptions

Kingbus lighting set for SCANIA R470/R620 from Tamiya

Kingbus lighting kit for the Tamiya SCANIA model. Kingbus system. Complete set consisting of a central module, light circuit boards, various cables, distributors, and accessories. For the R470 and R620 models. The light modules are delivered fully assembled and tested. They simply need to be installed in the model. No modifications to the body are necessary! Light circuit boards for the Tamiya SCANIA R470 and R620 with only two wires. The light modules are delivered fully assembled and tested. They simply need to be installed in the model. No modifications to the body are necessary! The lights can be controlled via the Kingpad (not included). The central module and Kingpad are not required for Brixl, ScaleArt Commander, and Bluetooth radio control systems. Instead, the Kingbus interface is connected to the designated receiver port. This controls the lighting functions via the standard Kingbus cables! The Kingpad is not required in this case, as the lighting functions can be operated via switches and buttons on the remote control. Expanding the lighting system with new light modules is simple - just plug them in! Features: Parking lights, Low beam (only with parking lights), High beam (latching, only with low beam), Flash-to-pass, Fog lights, Left/right turn signals, Turn signal cancellation via steering channel, Hazard warning lights, Automatic cornering lights when steering or indicating, Xenon effect! Scope of delivery: 1 Kingbus central module, Dimensions: 34 x 23,5 x 8 mm, 2 patch cables for connecting the central module to the receiver, 1 Kingbus patch cable 50 cm, 1 Kingbus 4-way splitter, 4 light modules (cable length 150 mm each), White inserts for taillights. Technical data: Operating voltage: 5 V via BEC, Current consumption: approx. 20 mA (standby)

Available immediately, delivery time: 1-4 days

Product number: 10936

229,00 €

Subscriptions

Headlight boards (pair) for SCANIAs from Tamiya.

Headlight boards (pair) for SCANIAs from Tamiya. Kingbus system. Headlight modules for the Scanias from Tamiya with just two cables.The light modules are delivered fully assembled and tested. They only need to be installed in the model. No adjustments to the housing are necessary!The lights can be controlled via the Kingpad (not included).The central module & Kingpad are not required for remote control systems from the brands Brixl, ScaleArt Commander and Blauzahn.Instead, the Kingbus interface is connected to the assigned receiver slot. This controls the light functions via the standard Kingbus cable!The Kingpad is not required in this case, as the light functions can be operated via switches and buttons on the remote control.Expanding the lighting system with new light modules is simple - just plug them in!Features:- Parking light- Low beam (only with parking light)- High beam (latching only with low beam)- Headlight flasher- Fog light- Left/right indicator- Indicator reset via steering channel- Hazard warning lights- Automatic cornering light when steering or blinking- Xenon effect!Scope of delivery:- 2 light modules (cable length 150mm each)

Available immediately, delivery time: 1-4 days

Product number: 11062

98,00 €

Subscriptions

Taillight circuit boards (pair) for SCANIA 470/620 by Tamiya

Taillight circuit boards (pair) for Tamiya Scania models. Kingbus system. For Tamiya Scania R470 and R620. Taillight modules for the Tamiya Scania 470 and 620 with only two wires. The light modules are delivered fully assembled and tested. They simply need to be installed in the model. No modifications to the body are necessary! The lights can be controlled via the Kingpad (not included). For Brixl, ScaleArt Commander, and Bluetooth radio control systems, the central module and Kingpad are not required. Instead, the Kingbus interface is connected to the designated receiver port. This controls the lighting functions via the standard Kingbus cables! The Kingpad is not required in this case, as the lighting functions can be operated via switches and buttons on the remote control. Expanding the lighting system with new light modules is simple – just plug them in! Features: Parking lights, rear fog light, brake light (via driving channel), reversing lights (via driving channel or Kingpad), left/right turn signals, turn signal cancellation (via steering channel), hazard warning lights. Scope of delivery: White inserts for taillights, 2 light modules (cable length 150mm each).

Available immediately, delivery time: 1-4 days

Product number: 11063

78,99 €

Subscriptions

Kingbus Universal Rear Lighting Module Unimod-RRL

Kingbus Universal Rear Lighting Module. Kingbus System. Unimod-RRL. 1 universal module for Verkerk show truck taillights. Universal module for mounting on the model's rear bumper. This module was developed to control Verkerk show truck taillights. The distribution board, to which the individual taillights are connected, can be connected to this universal module according to the instructions. This allows the taillights to be controlled via the Kingbus system. The color of the connecting wires is indicated on the module with a colored dot. One wire is connected from the distribution board to each output. Several LEDs (up to 100mA total) can be connected to the output marked "HC". However, the series resistor must be calculated and installed between the universal module and the LED (only for the HC output)! The module is delivered ready for installation and tested. Connecting it to the Kingbus lighting system is simple – just plug it in! Please also refer to the connection diagram in the image gallery. Outputs: Required outputs for taillights, parking light output up to 100mA. Voltage: +5 volts. Technical data: Module dimensions: 27 x 15 x 8 mm (L x W x H). Cable length: 150 mm. Scope of delivery: 1 universal module with instructions.

Available immediately, delivery time: 1-4 days

Product number: 13876

32,00 €

Subscriptions
