Crane (WDC u. TAM)

1 wood grapple kit. Fully assembled. Gripper kit for

1 wood grapple kit. Fully assembled. Grapple kit for loading crane. Complete with hydraulic cylinder. 09431N. We recommend item 6697 for realistic operation of attachments.

Ready to ship in 8 days, delivery time 1-4 days

Product number: 6701

€ 339,00 *

Subscriptions

1x clamshell kit. Gripper Kit for loading crane

1x clamshell grab kit. Grab kit for loading crane. Complete with hydraulic cylinder. 09432. We recommend item 6697 for realistic operation of attachments.

Ready to ship in 8 days, delivery time 1-4 days

Product number: 6702

€ 260,00 *

Subscriptions

1 hydraulic swivel drive, small. With universal joint

1 hydraulic swivel drive, small. With cardan joint with 4mm bore and cross split pin. Drive made of aluminum. This article is used in the swivel drive from Leimbach. Total diameter: 29mm. Height: 18mm without connections. Suspension with M2 screw, clear width 5mm. Output shaft 4mm (with cardan). Cardan outer diameter: 6,5mm. Cardan length 18mm (pitch 9/9mm). Hydraulic connection: 2x angled screw nipples 8985 (H034). Matching hydraulic hose: article 7829.

Ready to ship in 8 days, delivery time 1-4 days

Product number: 10224

€ 279,00 *

Subscriptions

1 supporting-kit for loading crane. Supplement to crane

1 support kit for the loading crane. Supplement to the loading crane for stable support during crane operation. For TAMIYA frame width and height! 09403T. Scope of delivery:Aluminum parts for extension2 hydraulic support cylinderHydraulic extension cylinder 75mm2-fold control valveHydraulic hoseSmall partsInstructionsAs an alternative, the special FORST support design is available under item number 11836.

Ready to ship in 8 days, delivery time 1-4 days

Product number: 7838

€ 630,00 *

Subscriptions

Folding loading crane basic kit, Tamiya-scale 7,2V

Folding loading crane basic kit, M 1:14,5. 1 folding loading crane basic kit, aluminum, for Tamiya scale. Approx. 80 mm space is required for assembly. Hydraulically operated. For 7,2V. 09401T A remote control with at least 4 channels is required for operation. Included in the scope of delivery of the basic version: - all sheets/molded parts - screws - hydraulic pump for 7,2V - 4 hydraulic cylinders - 1 swivel cylinder - 4-way control valve block - hydraulic hose - hydraulic oil - hose connectors, small parts - detailed, illustrated assembly instructions - all parts unpainted Equip your model with this multifunctional model that greatly increases the fun and play factor of your truck. Three different grippers can be mounted on this crane. It is optionally possible to equip the vehicle with hydraulic supports to ensure the necessary stability. Figure 1 shows the loading crane with optional rotary union and wood grapple - both options are not included in the basic kit!Also required: (not included)4x Servo DS-218BB (item 13208)Optional additional components (not included):Item 6697, hydraulic swivel drive for attachmentsItem 6700, hydraulic pallet grapple kitItem 6701, hydraulic wood grapple (fully assembled)Item 6702, hydraulic 2-shell grapple kitItem 9065, hydraulic scrap grapple (fully assembled)Item 7838, side hydraulic supportIf a multifunctional model consisting of a folding loading crane and roll-off structure is to be created, the extended frame kit (item 8516, not included) is available. With this combination, a tipping and roll-off vehicle with the option of self-loading can be created - all-round fun!

Ready to ship in 8 days, delivery time 1-4 days

Product number: 9095

€ 1.765,00 *

Subscriptions

Pallet gripper kit. Gripper kit for loading crane

Pallet gripper kit. Gripper kit for loading crane. Complete with hydraulic cylinder. 09430. We recommend item 6697 for realistic operation of attachments.

Available immediately, delivery time: 1-4 days

Product number: 6700

€ 259,00 *

Subscriptions

1 hydraulic rotary actuator. Expansion of cargo cranes

1 Hydraulic slewing drive. Extension for loading cranes when operating with grapples. 09402 The extension kit includes: Hydraulic slewing drive, 2-way valve, hose guide, quick couplings, hoses, fastenings, small parts, instructions. We recommend using this item for realistic operation of the optional attachments: 6700 Slab grapple, 6701 Timber grapple, 6702 Clamshell grapple, 9065 Scrap grapple.

Ready to ship in 8 days, delivery time 1-4 days

Product number: 6697

€ 595,00 *

Subscriptions

1 frame set for the construction of vehicles with Tamiya

1 frame set for building TAMIYA vehicles with folding loading crane and roll-off tipper. Frame length 605mm. 09404. With this combination of folding loading crane and roll-off structure, the play value of the vehicle increases enormously! The truck can now be loaded and unloaded independently. This frame set allows all necessary components to be accommodated.Scope of delivery:Pair of frames (left/right), each 605mm longSide panels to match the MAN TGX from TAMIYARaising for mounting the folding craneEngine mount for a GM32xxx gear motorAdditionally recommended or necessary accessories (not included):Gear motor: item 6182 (for 12V) or item 7378 (for 7,2V)Cardan shaft or cardan joints depending on the installation situationImage 2 shows a built-up sample vehicle in which this set was installed.

Available immediately, delivery time: 1-4 days

Product number: 8516

€ 152,00 *

Subscriptions

1x Mounting kit for folding loading crane on TAMIYA vehicles

1x Mounting kit for folding loading crane on TAMIYA vehicles. Increasing the construction position. 09405.

Ready to ship in 8 days, delivery time 1-4 days

Product number: 8517

€ 55,00 *

Subscriptions

1x scrap grab for crane, fully assembled. Complete with

1x scrap grab for crane, fully assembled. Complete with hydraulic cylinder. 09433. We recommend item 6697 for realistic operation of attachments.

Ready to ship in 8 days, delivery time 1-4 days

Product number: 9065

€ 279,00 *

Subscriptions

Penz loading crane, kit for Tamiya Volvo short timber loading crane

Penz loading crane, kit. Unpainted. Short wood loading crane, hydraulic. Incl. all necessary hydraulic accessories to match the Tamiya Volvo FH-16 short wood loading crane (for VOLVO FH-16 from TAMIYA). To match the timber transporter newly developed by TAMIYA, the Leimbach-Modellbau company has adapted the PENZ short wood loading crane. The kit contains a specially made mounting plate for the crane and the support, with which these can be easily attached to the truck using a clamp (without drilling). To attach the hydraulic pump and the control valve to the side of the vehicle frame, attachments may have to be removed and holes drilled. The support cylinders were also specially made for this model and, due to the frame height, require a longer stroke length in order to be able to support themselves on the ground. Scope of delivery: All sheet metal parts, screws, support, timber grapple, hydr. Swivel drive for grab, double swivel cylinder, all required hydraulic components (without servos). Delivered as an unpainted kit. Technical data Crane swivel range: approx. 360 degrees Grab swivel range: 270 degrees The support can be extended 100 mm to the side. The telescope can also be extended 100 mm. Lifting capacity depending on pump pressure: approx. 400 grams Vehicles, optional accessories, paintwork, load, etc. are NOT included in the scope of delivery, they are for illustration purposes only. An additional 8 servos (item 13208) are required to control all functions. Accordingly, a remote control with at least 8 functions is recommended in crane mode (not included). As part of our painting service, we can also offer individual painting of the crane structure. Simply ask for a quote for this.

Ready to ship in 8 days, delivery time 1-4 days

Product number: 11431

€ 3.450,00 *

Subscriptions

1x supporting-kit for loading crane. Supplement to crane

1x support kit for the loading crane. Supplement to the loading crane for stable support during crane operation. For Wedico frame width and height! 09403. Scope of delivery:Aluminium parts for extension2 hydraulic support cylindersHydraulic extension cylinder 75mm2-way control valveHydraulic hoseSmall partsInstructionsAs an alternative, the special FOREST support design is available under item number 11836.

Available immediately, delivery time: 1-4 days

Product number: 6698

€ 630,00 *

Subscriptions

Penz loading crane, short timber loading crane with forestry support

Penz loading crane, kit. Unpainted. Short log loading crane, hydraulic. Includes all necessary hydraulic accessories compatible with the Tamiya Volvo FH-16. With special forestry support. Short log loading crane (for the Tamiya Volvo FH-16) with forestry support. At the customer's request, the Leimbach short log loading crane, which has been adapted to the newly developed Tamiya timber transporter, is also available with a special "forestry support." This support was developed by us specifically for this vehicle, as this type of support is also used in the original forestry vehicles. The outriggers on the right and left sides are each folded in and out separately via a valve. Due to the smaller hydraulic cylinders and the leverage ratios, this outrigger has slightly less force than our "normal" outrigger. Just like the version with the "standard" outrigger, the kit includes a mounting plate specially made for this model for the crane and outrigger, allowing them to be easily attached to the truck using a clamp (without drilling). For mounting the hydraulic pump and control valve to the side of the vehicle frame, some attachments may need to be removed and holes drilled. Scope of delivery: all sheet metal parts, screws, outrigger, log grapple, hydraulic... Swivel drive for gripper, double swivel cylinder, all necessary hydraulic components (without servos). Supplied as an unpainted kit. Technical data: Crane swivel range: approx. 360 degrees; Gripper swivel range: 270 degrees; The outrigger extends laterally by 100 mm; The telescopic arm also extends by 100 mm; Lifting capacity depending on pump pressure: approx. 400 grams; Control valves (included as 1 x 8-valve block): 8 pieces. For full functionality of all hydraulic functions, 8 servos are required (item 1708).

Ready to ship in 8 days, delivery time 1-4 days

Product number: 11432

€ 3.374,99 *

Subscriptions

Building material folding loading crane, kit. Unpainted. For Tamiya

Folding loading crane, kit. Unpainted. Hydraulic folding loading crane for construction materials. Includes all necessary hydraulic accessories compatible with Tamiya chassis. Folding loading crane for construction materials (TAMIYA chassis). This folding loading crane is compatible with Tamiya chassis and suitable for construction vehicles or trains. The kit is not compatible with the Volvo FH16 Timber Truck. The kit includes a specially designed frame extension for mounting on the rear of the vehicle, with a platform, ladders, checker plate, underride guard, and taillight housings (without circuit boards). A control station is also included. Mounting the hydraulic pump and control valve to the side of the vehicle frame may require the removal of existing parts and drilling of holes. Compared to the "normal" folding loading crane, this construction material version comes with a 360° swivel cylinder. (However, this means the folding loading crane can no longer be folded up, but must be laid down on the loading platform.) The outrigger cylinders were also specially manufactured for this model, as they require a greater stroke length to be able to brace themselves against the ground due to the frame height. Scope of delivery: all sheet metal parts, screws, outriggers, pallet grab, hydraulic swivel drive for grab, 360° swivel cylinder, all necessary hydraulic components (without servos). The kit is delivered unpainted. Technical data: Crane swivel range: approx. 360 degrees; Grab swivel range: 270 degrees; The outriggers are extendable laterally; The telescopic arm can be extended by approx. 100 mm; Lifting capacity depending on pump pressure: approx. 300 grams, with the arm fully extended; The crane's 360° swivel cylinder has a swivel range of 1 x 360° (this means it is NOT endless). (Rotatable) Vehicles, vehicle parts, cargo, and course equipment shown in the product photos are NOT included in the kit and are for illustrative purposes only. Eight servos (item 1708) are required to control all functions. Therefore, a remote control with at least eight functions is recommended for crane mode (not included).

Ready to ship in 8 days, delivery time 1-4 days

Product number: 12430

€ 3.545,00 *

Subscriptions

Penz crane, kit. Unpainted. Short-log-loading crane,

Penz loading crane, kit. Unpainted. Short wood loading crane, hydraulic. Incl. all necessary hydraulic accessories. (Wedico size). The new short wood loading crane, based on the Penz model, is attached to a Wedico frame (713). (Not included in delivery). The support can be extended to the side. The crane telescope can be extended 100 mm. Included in delivery of the basic version: all sheet metal parts, screws, hydraulic support, underrun protection (without lamps), wood grapple, and all hydraulic components (without servos). Delivered unpainted. Technical data: Crane swivel range: approx. 360 degrees Grab swivel range: 270 degrees Lifting capacity depending on pump pressure: approx. 400 grams Length when stretched min. 385mm / max. 485mm max. Height above frame: 212mm Construction width: 175mm Construction depth: approx. 60mm Support (Wedico size): 175/250mm Support (Tamiya size): 185/285mm Support height each: 11/102mm To control all functions, 8 additional servos (item 1708) are required. Accordingly, a remote control with at least 8 functions is recommended in crane mode (not included).

Ready to ship in 8 days, delivery time 1-4 days

Product number: 6699

€ 3.425,00 *

Subscriptions

Forestry support kit (hydraulic) for Wedico- / Tamiya

Hydraulic forestry support kit suitable for Wedico and Tamiya scales. 09413. "Forestry" support kit (universal for WEDICO or TAMIYA). We now offer the "Forestry" support kit, previously only available in combination with the short-log loading crane for the TAMIYA Volvo timber truck, as a standalone purchase, allowing you to build your desired model yourself. The kit includes two "short" and two "long" side sections, as well as support legs. This selection allows the support to be optimally adapted to your vehicle and frame height (for example, for WEDICO or TAMIYA chassis/frame height). Images and dimensioned drawings show or include dimensions of the "short" version. The "long" side panels are approximately 20mm longer than the "short" version, and the "long" support feet are approximately 2mm higher. Due to the smaller hydraulic cylinders and the leverage ratio, this support has less force than our "standard" support. Included in delivery: all sheet metal parts, screws, small parts, 2x hydraulic cylinders. Also included (not pictured): hose, dual control valve, 2x additional side panels and support feet (see description above for details).

Ready to ship in 8 days, delivery time 1-4 days

Product number: 11836

€ 575,00 *

Subscriptions

1:14 Loading Crane v2 with Support Kit

1:14 Scale Loading Crane v2 with Outriggers Kit. Made of stainless steel, unpainted. thicon-models. Precisely manufactured loading crane superstructure with metal outriggers and hydraulics. The kit is made of stainless steel and is unpainted. This folding loading crane is a technical highlight! The folding loading crane can be extended in 3 stages and, when retracted, fits behind the cab. The front and rear outriggers are also extended hydraulically. All functions, except for rotating the crane, are hydraulically operated. A pump and a 7-way control valve operate 13 hydraulic cylinders. A rear support crossmember for Tamiya chassis is included for the rear outriggers; this is simply inserted into the existing frame and screwed in place. Required for operation: Hydraulic oil, remote control with at least 11 channels, 7,4V or 11,1V LiPo battery, charger, suitable Tamiya vehicle model. Scope of delivery: Unpainted loading crane kit, front outriggers, rear outriggers with crossmember, hydraulic system with brushless pump, 7-way control valve, brushless controller, slewing controller, 7 servos, attachments, LED light system, assembly instructions. Dimensions: Telescopic arm length: 204-460mm, height: 630mm, tilt angle: 61°, length with outriggers: 535mm, stroke stage 1: 87,6mm, stroke stage 2: 83,7mm, stroke stage 3: 85,7mm, extended width: 284mm, retracted width: 185mm, outrigger stroke: 93mm, operating pressure Approx. 20 bar. Optionally, we can also deliver the loading crane powder-coated and fully assembled. Please do not hesitate to contact us.

Ready to ship in 5 days, delivery time 1-4 days

Product number: 13137

€ 2.590,00 * € 2.690,00 * (3.72% saved)

Subscriptions

Folding loading crane basic kit, Wedico-scale 12V

1x folding loading crane basic kit, M 1:14,5. 1 folding loading crane basic kit, aluminum, for Wedico scale. Approx. 80 mm of space is required for assembly. Hydraulically operated. For 12V. 09401 A remote control with at least 4 channels is required for operation. Included in the scope of delivery of the basic version: - all sheets/molded parts - screws - hydraulic pump for 12V - 4 hydraulic cylinders - 1 swivel cylinder - 4-way control valve block - hydraulic hose - hydraulic oil - hose connectors, small parts - detailed, illustrated assembly instructions - all parts unpainted Equip your model with this multifunctional model that enormously increases the fun and play factor of your truck. Three different grippers can be mounted on this crane. It is optionally possible to equip the vehicle with hydraulic supports to ensure the necessary stability. Figure 1 shows the loading crane with optional rotary union and wood grapple - both options are not included in the basic kit!Additionally required: (not included)4x Servo DS-218BB (item 13208)Optional additional components (not included):Item 6697, hydraulic swivel drive for attachmentsItem 6700, hydraulic pallet grapple kitItem 6701, hydraulic wood grapple (fully assembled)Item 6702, hydraulic 2-shell grapple kitItem 9065, hydraulic scrap grapple (fully assembled)Item 7838, side hydraulic support

Ready to ship in 8 days, delivery time 1-4 days

Product number: 6696

€ 1.765,00 *

Subscriptions

Penz loading crane, kit. Unpainted. Short timber loading crane, hydra

Penz loading crane, kit. Unpainted. Short wood loading crane, hydraulic. Incl. all necessary hydraulic accessories. (Tamiya size). 9408T. The new short wood loading crane (2020), based on the Penz model, suitable for the Tamiya chassis. (Not included).The support can be extended to the side.The crane telescope can be extended 100 mm.Included in the scope of delivery of the basic version:all sheet metal parts, screws, hydraulic support, wood grapple, and all hydraulic components (without servos).Parts for the frame extension are included in the scope of delivery. The delivery is unpainted.Technical data:Crane swivel range: approx. 360 degreesGrapple swivel range: 270 degreesLifting load depending on pump pressure: approx. 400 gramsLength stretched min.385mm / max.485mmmax. Height above frame: 212mm Construction width: 175mm Construction depth: approx. 60mm Support (Tamiya size): 185/285mm Support height each: 11/102mm Vehicles shown are NOT included in the scope of delivery! To control all functions, 8 additional servos (item 1708) are required. Accordingly, a remote control with at least 8 functions is recommended in crane mode (not included).

Ready to ship in 8 days, delivery time 1-4 days

Product number: 12093

€ 3.498,01 *

Subscriptions

Short timber stanchion superstructure, kit. Unpainted. Aluminum. For T

Short timber stanchion superstructure, kit. Unpainted. Aluminum. For Tamiya vehicles. Incl. 4 stanchions (can be positioned individually).

Ready to ship in 8 days, delivery time 1-4 days

Product number: 12094

€ 405,00 *

Subscriptions

Short wood trailer kit, Tamiya scale. Suitable for the Ar

Short wood trailer kit, Tamiya scale. Suitable for items 12093, 12094. With parking brake that is operated by a servo. (9409T). Short wood trailer (for TAMIYA vehicles)We are now offering a short wood trailer to match the short wood loading crane (PENZ) (item 12093). The trailer has a "tool box" with a flap that can be opened on both sides.An ON/OFF switch or part of the electronics can be housed in this if necessary. The fenders that are optionally available for other trailers are already included in the scope of delivery of the short wood trailer.The short wood trailer is equipped with a parking brake that is operated by a servo (not included).If the brake is applied, the supply voltage to the trailer can be switched off. The parking brake remains applied. This is particularly interesting if the trailer is parked for a longer period of time or on sloping terrain. The cargo and towing vehicles shown are NOT included in the kit!

Ready to ship in 8 days, delivery time 1-4 days

Product number: 12096

€ 845,99 *

Subscriptions

telescopic hanger for loading crane

Telescopic hanger for loading crane. JXModel telescopic hanger made of unpainted stainless steel. The crane boom can be extended in length. Dimensions: Length min: 185 mm, Length extended: 297 mm, Weight: approx. 160 g. Scope of delivery: 1x unpainted telescopic hanger, lifting cable, storage stand

Available immediately, delivery time: 1-4 days

Product number: 13110

€ 92,90 * € 99,95 * (7.05% saved)

Subscriptions

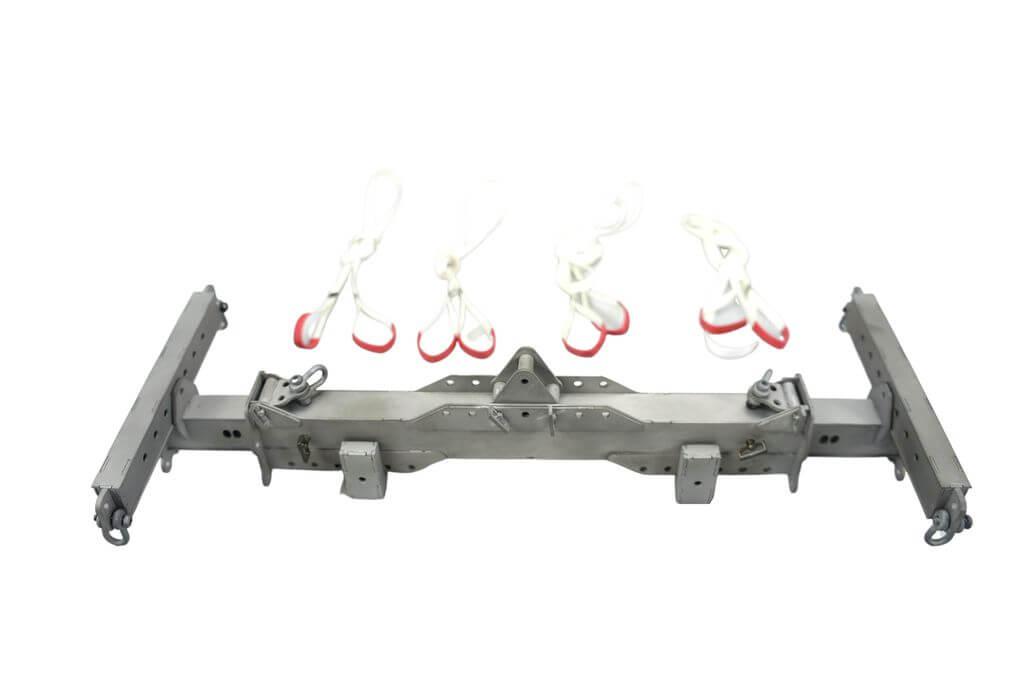

Telescopic Hanger Multifunctional for Loading Crane

Multifunctional telescopic crane hanger. JXModel multifunctional telescopic crane hanger made of unpainted stainless steel with spreader. The crane boom can be extended linearly in two stages or simply extended with crossbeams. Dimensions: Length min: 180mm, Length stage 1: 276mm, Length stage 2: 372mm, Boom width: 90mm, Weight: 180g. Scope of delivery: 1x unpainted telescopic crane hanger, support cables, stand.

Available immediately, delivery time: 1-4 days

Product number: 13109

€ 129,00 * € 139,95 * (7.82% saved)

Subscriptions

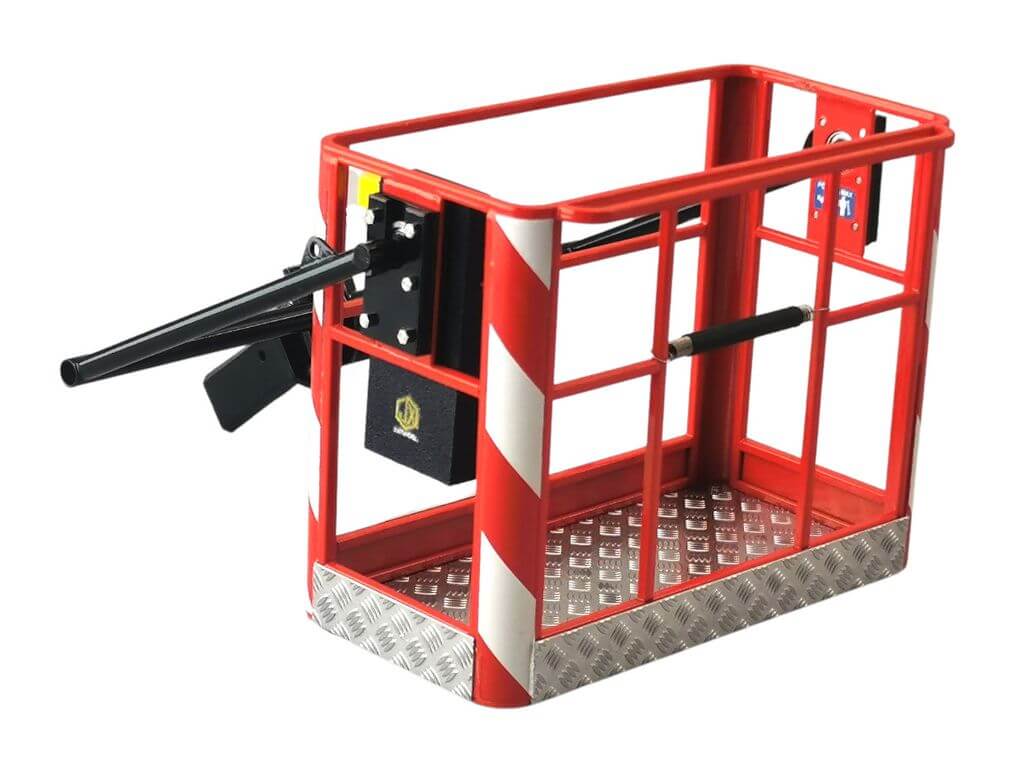

Metal personnel basket for loading crane, JXModel

Metal personnel basket for loading crane. JXModel high-quality metal basket, painted red. Thanks to a true-to-life suspension with ball bearings, the basket remains horizontal in any crane position. Dimensions: Width: 102 mm, Depth: 56 mm, Height: 82 mm, Weight: 152 g. Scope of delivery: 1x basket, painted and assembled with mounting parts and bearings.

Ready to ship in 20 days, delivery time 1-4 days

Product number: 13108

€ 129,00 * € 139,95 * (7.82% saved)

Subscriptions
