1 piece 5-pin miniature cable connector. Plug, 2-part, reverse polarity protected. 8mm diameter, solder connection. Load capacity 60V/3A per contact. This article is only available in the new version as a 2-part article! Matching counterpart: Article 7643, 7630 (not included).

1 pc. 5-pin miniature cable coupler. Coupling, 2-piece, protected against polarity reversal. 8mm diameter, solder connection. cable box. Load capacity 60V/3A per contact. Matching counterpart: Article 7624, 7644 (not included).

1 x 5-pin miniature plug connection. Installation socket (socket), reverse polarity protected. Approx. 8x8x17mm with solder connection. Load capacity 60V/3A per contact. Diameter for mounting hole: 6,2mm. Matching counterpart: Article 7642 (not included).

BEC socket, loose, 1 piece. 2 pole. Reverse polarity protected.

1x AMP socket gold-plated, white, 2-pin. 1 piece. Scope of delivery: 1 socket housing, 2 crimp/solder contacts (socket). Weight: 1,8g. Contact resistance: 3,6 milliOhm Current load: 15A (continuous), 30A (max. 2 minutes) Dimensions: 22x14x9mm Max. cable cross-section: 1,5qmm, AWG15

1x AMP connector, gold-plated, white, 2-pole. 1 piece. Scope of supply: 1 connector housing, 2 crushing / solder contacts (pin).

1 x 5-pin miniature plug connection. Installation socket (plug), reverse polarity protected. Approx. 8x8x17mm with solder connection. With fastening nut. Load capacity 60V/3A per contact. Diameter for fastening hole: 6,2mm. Matching counterpart: Article 7643 (not included).

1 10 pin strip-pole (2x5) just contacts. PLUG. To activate / soldering. Pitch 2,54mm (RM2,54). RoHS Compliant. Approximately 12x5mm. THT. Gold plated contacts.

1 pair of T-connectors. Approx. 25x13x8mm when plugged together. 5gr. With solder connection. Max. cable cross-section 4 sqmm. Red-brown plastic housing. Current carrying capacity: Continuous: 36A2 min.: 50A Pulse: 70A

1 10 pin strip-pole (2x5) just contacts. JACKS. To activate / soldering. Pitch 2,54mm (RM2,54). RoHS Compliant. Approximately 12x5mm. THT. Gold plated contacts.

1 piece 4 pin miniature cable connector. Plug, 3-piece, reverse polarity protected. 8mm diameter, solder connection. Load capacity 60V/3A per contact. With strain relief. Matching counterpart: Item 9030 (not included).

1 MPX high current socket, green, 6-pin original multiplex, 1 piece.

1 3 St.-pole miniature connector. Plug, 3-part, reverse polarity protected. 8mm diameter solder connection. Endurance 60V / 3A per contact. With strain relief.

1 x 3-pin miniature plug connection. Installation socket (socket), reverse polarity protected. Approx. 8x8x17mm with solder connection. Load capacity 60V/3A per contact. Diameter for mounting hole: 6,2mm

1 x 4-pin miniature plug connection. Installation socket (socket), reverse polarity protected. Approx. 8x8x17mm with solder connection. Load capacity 60V/3A per contact. Diameter for mounting hole: 6,2mm. Matching counterpart: Article 9031, 11804 (not included).

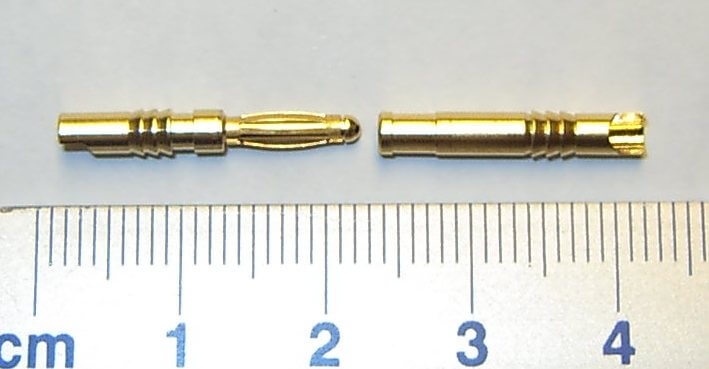

Gold connector 2,0mm plug and socket 1 pair. (1 plug and 1 socket).

Servo connector JR/Graupner, socket, 3-pin. 10 pieces. Electrical SOCKET (female). Matching counterpart is item 1844!

1x BEC battery connector cable 2x 0,5qmm, 30cm, silicone strand flat.

1 pair of micro connectors. Approx. 24x6x6 mm when plugged together. 1gr. With solder connection. Max. cable cross-section 0,5 mm². Red-brown plastic housing. Supplied with 1x plug and 1x socket. Current carrying capacity: Continuous: 6A2 min.: 10A Pulse: 15A

1 pin strip 3-pin (1x3), straight contacts. PLUG. For soldering in/on. Pitch 2,54mm (RM2,54). RoHS Compliant. Approx. 7x2mm. tht Touch gold plated contacts.

1 pcs. 4 miniature miniature cable connector. Coupling, 2-part, reverse polarity protected. 8mm diameter, solder connection. Cable box. Load capacity 60V / 3A per contact. Matching counterpart: Article 9031 (not included).

1x BEC battery counter cable 2x 0,5qmm, 30cm flat silicone wire.

1 pcs. 3 miniature miniature cable connector. Coupling, 2-part, reverse polarity protected. 8mm diameter, solder connection. Cable box. Load capacity 60V / 3A per contact. Matching counterpart: Article 11141.

81324-60 plug. Yellow housing. 2 poles. Load capacity continuous: 35A, 2min: 45A, pulse: 60A. Approx. 21x16x8mm. Max. cable cross-section: 2,5qmm.

3x XT-60 socket. Yellow housing. 2 poles. Load capacity continuous: 35A, 2min: 45A, pulse: 60A. Approx. 22x16x8mm. Max. cable cross-section: 2,5qmm.

1 MPX high-current connector, green, 6-pin, original Multiplex, 1 piece. M6-50. New version! Up to 50A continuous current.

Matching counterpart: Article 11142.

1 x 4-pin miniature plug connection. Installation socket (plug), reverse polarity protected. Approx. 8x8x17mm with solder connection. Load capacity 60V/3A per contact. Diameter for mounting hole: 6,2mm. Matching counterpart: Article 11160, 9030 (not included).

1 Tamiya socket with gold-plated contacts (2-pin). Socket housing made of plastic, white. Approx. 27x14x12mm. For crimping or soldering. Max. 2,5 mm². Current load: Continuous current: 15A up to 2 minutes: 30AImpulse: max. 60A Contact resistance: 3,6 mOhm Weight: 2,2 g.

1x Tamiya connector (male) with gold-plated contacts (2-pin). Connector housing made of white plastic. Approx. 27x14x10mm. For crimping or soldering. Max. 2,5 mm². Current load: Continuous current: 15A up to 2 minutes: 30A Pulse: max. 60A Contact resistance: 3,6 mOhm Weight: 2,1 g.

Servo coupling JR/Graupner, pin, 10 pieces. Electrical plug (male). Matching counterpart is item 1845!

1 mini Tamiya plug with gold-plated contacts (2-pin). Plug housing made of light-colored plastic. Approx. 23x10x8mm. For crimping or soldering. Max. 0,75 mm². Current load: Continuous current: 10A up to 2 minutes: 15AImpulse: max. 30A Contact resistance: 2,1 mOhm Weight: 1,1 g.

Tamiya socket gold-plated, white, 2-pin 10 pieces. Current load: Continuous current: 15A up to 2 minutes: 30AImpulse: max. 60A Contact resistance: 3,6 mOhm Weight: 2,2 g.

1 mini Tamiya socket with gold-plated contacts (2-pin). Socket housing made of light plastic. Approx. 23x10x9mm. For crimping or soldering. Max. 0,75 mm². Current load: Continuous current: 10A up to 2 minutes: 15AImpulse: max. 30A Contact resistance: 2,1 mOhm Weight: 1gr.

Tamiya connector gold-plated, white, 2-pin. 10 pieces. Current load: Continuous current: 15A up to 2 minutes: 30AImpulse: max. 60A Contact resistance: 3,6 mOhmWeight: 2,1 g.

1x 9-pin socket, solder connection, SUB-D, 2-row. 1 piece. Total 30x12,5mm.

1x 9-pin connector, solder joint, SUB-D, 2-row. Total 30x12,5mm.

1 6 pin strip-pole (2x3) just contacts. JACKS. To activate / soldering. Pitch 2,54mm (RM2,54). RoHS Compliant. Approximately 8x5mm. THT. Gold plated contacts.

1x 2-pin connection cable (female). PH. Silicone wire. RM 2,0mm. 30cm long. 2x 0,25qmm red/black. Matching counterpart: article 11085 (not included).

1x 15-pin connector, solder joint, 3-row, SUB-D, 1 piece. HD. Dimensions 30x12,5mm.

15-pin socket, solder connection, 3-row SUB-D, 1 piece. Total 30x12,5mm.

1x EC3 Gold Jack. 3,5mm gold socket, solderable. Max. 4qmm (AWG11). Load capacity 55A for 3sec, 50A for 2 minutes, 30A continuous operation (24h).

1x EC3 Gold Connector. 3,5mm gold connector, solderable. Max. 4qmm (AWG11). Load capacity 55A for 3sec, 50A for 2 minutes, 30A continuous operation (24h).

Gold connector 0,8mm plug and socket 1 pair. Continuous current: 6Amax. current up to 2 min.: 8Amax. current up to 3 sec.: 12AGold-platedmax. cable cross-section: 0,5qmm (AWG20)

1 socket 4mm for banana plug, red, insulated. Connection: soldering lug. Contact: brass, nickel-plated. For mounting hole 8,2mm. With mounting nut. Max. 10A, 60V DC.

1 gold connector 0,8mm socket. 1 piece. Successor item is item 3394!

1 socket 4mm for banana plug, black, insulated. Connection: soldering lug. Contact: brass, nickel-plated. For mounting hole 8,2mm. With mounting nut. Max. 10A, 60V DC.

1x 2-pin connection cable (male). Silicone strand. RM2,0mm. 30cm long. 2x 0,25qmm red / black. Matching counterpart: Article 11086 (not included).

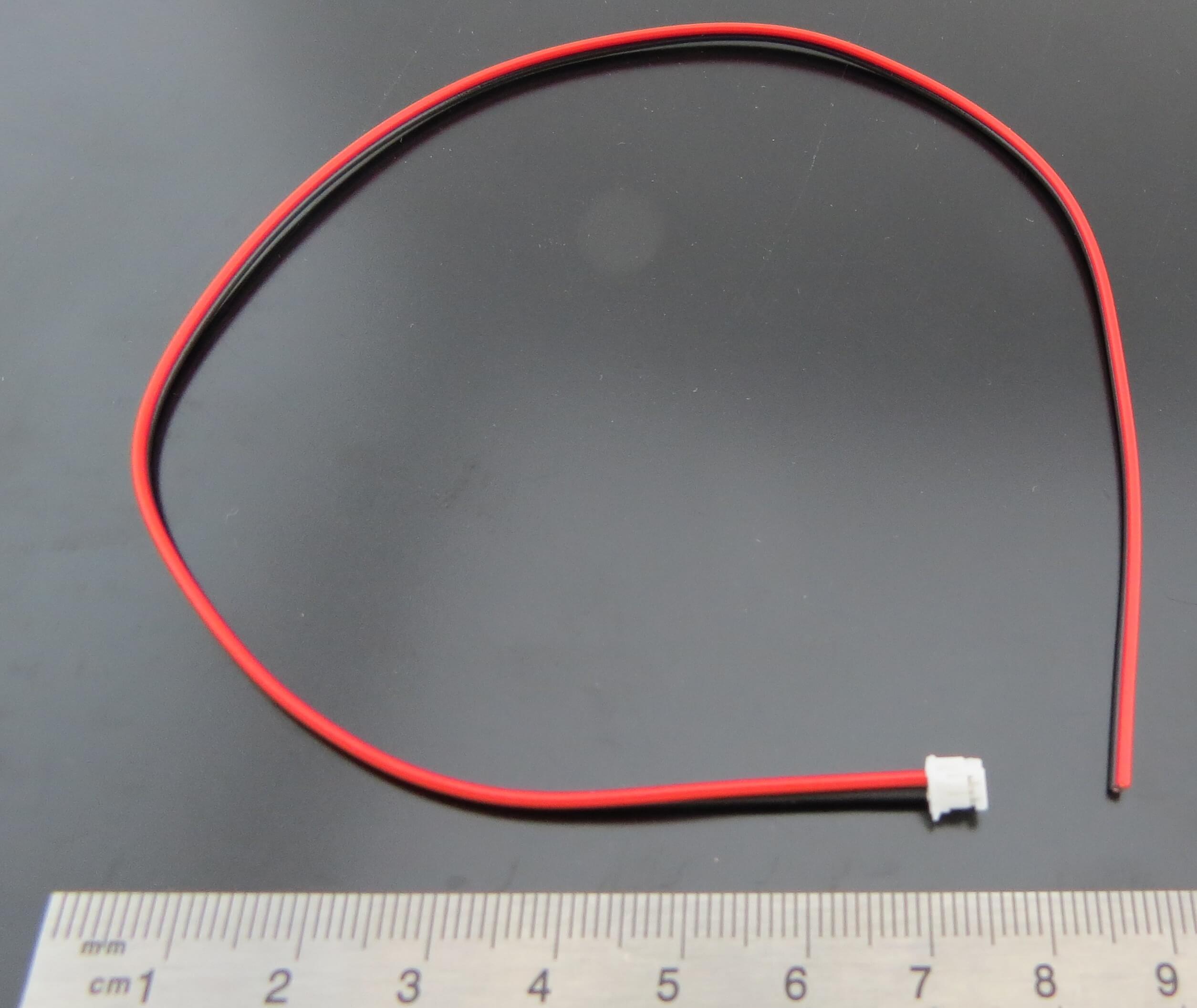

1x 2-pin connection cable (female). PVC wiring. RM1,5mm. 30cm long. 2x 0,14qmm red / black. Matching counterpart: Article 11084 (not included).

1x banana plugs, red, standard version, Bolt / solderable. Suitable for 4mm jacks.

1x banana plug, black, standard version, Bolt / solderable. Suitable for 4mm jacks.

1 laboratory socket, 2mm socket contact, 1-pin. Black housing. Solder connection. Total length 15/21mm. Diameter 6,5mm. Max. 60V/6A. Mounting nut M5. Spring-loaded socket contact for 2mm plug

1 laboratory socket, 2mm socket contact, 1-pin. Red housing. Solder connection. Total length 15/21mm. Diameter 6,5mm. Max. 60V/6A. Mounting nut M5. Spring-loaded socket contact for 2mm plug

1x 2-pin connection cable (male). PVC wiring. RM1,5mm. 30cm long. 2x 0,14qmm red / black. Matching counterpart: Article 11083 (not included).

1x installation frame for high-current plug or high-current socket. Plastic, black. Long version. Delivery without plug or socket. Height: 12mmOverall dimensions of flange: 28x13mm
