1 servo HS-645MG (Hitec). Powerful standard servo. Dimensions: 40x20x37mm. 55gr. Metal gear. 2 ball bearings. 77/96Ncm. 0,24s/60°. Uni/JR connector. Powerful standard servo. Ideal as a steering servo. Scope of delivery: 1 servo 5 control discs/levers Fastening material Gearing: 24T Ball bearing: yes Waterproof: no Torque at 4,8V: 8kgcm Torque at 6,0V: 10kgcm Gear: metal Motor type: brushed Electronic type: analog

1x standard servo CS-3 with JR connector. Dimensions: 38,5x19x32mm. 4,8-6V voltage. Actuating torque at 4,8V: 31Ncm. Actuating time approx. 0,17sec./60°. Weight 39 g. Accessories: 2 rudder levers and screws.

1 Servo HS-40 (Hitec). Analogue nano servo. Dimensions: 20x8,6x17mm. 4,8gr. Nylon gear. 6 / 7,6Ncm. 0,12s / 60 °. Uni / JR plug. Power is supplied with 4 different servo arms.

1x power servo CS-9 MG with JR connector. Dimensions: 40x20x38mm. 4,8-6V voltage. Actuating torque at 4,8V: 85Ncm. Actuating time approx. 0,1sec./60°. Weight 50 g. Accessories: 2 rudder levers and screws. This powerful servo is equipped with ball bearings and metal gears. It is also splash-proof and is therefore ideal as a steering servo in vehicles that sometimes move in damp environments!

1 servo HS-85MG (Hitec). Analogue powerful mini servo. Dimensions: 29x13x30mm. 22g metal gear. 3/4kgcm. 0,14-0,16s/60° Uni/JR connector. Servo is supplied with various servo levers. Ball bearing. It is considered one of the most robust servos in this class. The analogue HS-85MG servo with its 3-pole brush motor offers unparalleled durability thanks to its exclusive metal gear and a ball bearing on the output shaft, which is particularly suitable when low play and high positioning precision are important. The HITEC servo HS-85MG delivers maximum performance with minimal weight and with these data is also a favorite for industrial applications. The long service life and the uniquely designed gear make it one of the most reliable and efficient mini servos on the market.Features:- Longlife potentiometer- High durability- Metal gear- Ball bearingTechnical dataWidth: 13 mmHeight: 30 mmLength: 29 mmWeight: 0.022 kgServo type: standardSpecial features: analogMotor type servos: brushedGear: metalOperating voltage in V: 4,8-6,0 V

1 servo HS-81 (Hitec). Analogue standard micro servo. Dimensions: 29,8x12x29mm. 17gr. Nylon gear. 2,6/3Ncm. 0,11s/60°. Uni/JR connector. Servo is supplied with various servo levers. The HS-81 impresses with its good price-performance ratio. The analogue HS-81 servo is equipped with a 3-pole brush motor and elastic nylon gears.Technical dataWidth: 12 mmHeight: 30 mmLength: 30 mmWeight: 0.017 kgServo type: standardSpecial features: analogMotor type servos: brushedGear: nylonOperating voltage in V: 4,8-6,0 V

1x standard servo CS-6 with JR connector. Dimensions: 38,5x19x32mm. 4,8-6V voltage. Actuating torque at 6V: 60Ncm. Actuating time approx. 0,2sec./60°. Weight 50 g. Accessories: rudder lever and screws. The CARSON CS-6 servo is a powerful and fast servo in standard size. The robust metal gear ensures a long service life of the servo. Ideal for use in models that require a strong steering or positioning servo.

1 servo HS-65MG (Hitec). Analogue powerful micro servo. Dimensions: 24x12x24mm. 12g metal gear. 2Ncm. 0,11-0,14s/60°. Uni/JR connector. Servo is supplied with various servo levers.

Servo SES 640 2BB MG. 28,2x14,2x32,1mm. 64Ncm. 0,1sec./40°. 27 gr. 4,8-6,0V. Nominal values ​​measured at 6,0V. Incl. various servo arms and mounting material.

1x metal horn for servo, half arm. HITEC, output lever. Cyan. 4 holes 1,6mm. Teeth T24. Suitable for servos: HS-5245 / 5625 / 5645 / 5925 / 5945MG / 7235 / 7245MH / 5085GM.

1 servo HS-5645MG (Hitec). Powerful digital servo. Dimensions: 41x20x38mm. 60gr. Metal gear. 2 ball bearings. 103/121Ncm 0,23s/60°. Uni/JR connector. For 4,8-6V! Very powerful digital servo. Also suitable as a steering servo. Scope of delivery: 1 servo 4 control discs/levers 1 metal half-arm servo lever Fastening material

1 servo DES-707 BB,MG, Graupner. With metal gear and 2 ball bearings. Voltage 4,8-6,0V. Dimensions: 40x39x19,5mm without mounting flanges. Weight 53g. Torque 133/150 Ncm (4,8/6,0V). Very powerful digital servo - ideal as a steering servo. Actuating torque 133 Ncm at 4,8V or 150 Ncm at 6,0V. Actuating time 0,17s/40° at 4,8V or 0,14s/40° at 6,0V. Current consumption max. 1,6A (4,8V) / 1,95A (6,0V). Toothing: 25Z. Supplied with various control discs and fastening material.

AGF-RC A73BHLW digital servo with ball bearings. Dimensions: 40 x 20,0 x 37,5mm. Weight: 73,5 g. Brushless servo. 29kg at 4,8V. Digital servoClassification: StandardMotor: Brushless motorGearbox: TitaniumHousing: Solid aluminumNumber of ball bearings: 2Operating voltage: 4,8 - 8,4V HV-capablePositioning time (sec) to 60 degrees: 0,10sPositioning force (kg): 29 at 4,8 V, 40 at 8,4VWeight (g): 73,5Dimensions L/W/H (mm): 40 x 20,0 x 37,5Waterproof: yes, according to IP67Positioning: by magnetic, wear-free encoder Scope of delivery: Servo including servo lever and fastening materialApplication area: Airplane, car, boatPossible application examples: particularly suitable as a steering servo.Packaging: Blister, largeThis servo can be programmed with the optionally available USB interface. Of course, these are optional features. The servo can be operated normally straight out of the package and does not need to be set up beforehand.

AGF-RC B9DLM digital servo with ball bearing. Dimensions: 23 x 12,0 x 21,4mm. Weight: 11 gr. Mini digital servo. Digital servoClassification: MiniMotor: Brush motorGearbox: MetalHousing: PlasticNumber of ball bearings: 1Operating voltage: 4,8 - 6,0VSetting time (sec) to 60 degrees: 0,11 at 4,8 V and 0,10 at 6,0 VSetting force (kg): 2,2 at 4,8 VWeight (gr): 11Dimensions L/W/H (mm): 23 x 12,0 x 21,4Scope of delivery: Servo including servo lever and fastening screwsArea of ​​application: Airplane, car, boatPossible application examples: Special functions for functional models, operation of tow bar/differential locks for truck models, fifth wheel operation.Packaging: Blister, small

1 servo HS-225MG (Hitec). Analogue mini servo. Dimensions: 32,4x16,8x31mm. 31gr. Metal gear. 39/48Ncm. 0,14s/60°. Uni/JR connector. Servo is supplied with 4 different servo arms. Servo with 1 ball bearing. When a lot of torque and high speed is required despite low weight and small dimensions!

1 Servo DES-577, Graupner. Universal standard servo for price-conscious model builders. Voltage 4,8-6,0V. Dimensions: 38x19x37mm without mounting flanges. Weight 39g. Torque 40 Ncm (at 6,0V). The new, optimized digital successor to the well-known standard servo C577. Dimensions of the mountings in relation to the output are the same as for the servo C577, thus ensuring easy replacement. Ball bearings. Carbonite gear. Info: DES servo (Digital Eco servo) - A new product range from the digital servo segment. The DES servos represent a product line that provides the right servo with a wide range of specifications for almost every application. Different sizes, gear designs, actuating forces and actuating times designed for beginners through to competition pilots. Some completely sealed variants (housing screws, housing parts and output gear) increase the operational reliability of the models.Servos with double ball-bearing precision gears made of metal and aluminum guarantee the most precise positioning processes.High-quality Atmel microcontrollers are used to process the control signals and position the servos.Technical data:Acting torque 4,8V approx. [Ncm]: 42 NcmWidth [mm]: 19,5 mmActing time 4,8V approx. [sec / 40°]: 0,135 sec/40°Holding torque 6,0V approx. [Ncm]: 54 NcmMax. current consumption at 4,8V approx.: 710 mAHeight [mm]: 39 mmActing time 6,0V approx. [sec / 40°]: 0,1 sec/40°Weight [g]: 36 gRotation range with trim approx.: 2 x 45 °No-load current consumption approx. [mA]: 6 mASetting torque 6,0V approx. [Ncm]: 52 NcmLength [mm]: 39,5 mmCurrent consumption max. at 6,0V approx.: 840 mADimensions [LxWxH in mm]: 39,5 x 19,5 x 39 mmHolding torque 4,8V approx. [Ncm]: 44 NcmToothing: 25ZBearing: Ball bearingGear: CarbonitOperating voltage [V]: 4,8 ... 6,0 VNeutral pulse: 1,5 msMax. control frequency [ms / Hz]: 5,0 / 200 ms / HzBrushless: NoHigh-voltage: NoServo type: digitalServo series: DES Servo

Servo HS-82MG (Hitec). Analogue standard micro servo. Dimensions: 30x12x30mm. 19gr. Metal gear. 2,8/3,4 kgcm. 0,12s/60° Uni/JR connector. Servo is supplied with various servo arms. It is considered one of the most robust servos in this class. The analogue HS-82MG servo with its new powerful motor offers unparalleled durability thanks to its exclusive metal gear. The HS-82MG delivers maximum performance with minimal weight and with these data is also a favorite for industrial applications. The HITEC servo HS-82MG delivers maximum performance with minimal weight and with these data is also a favorite for industrial applications. The long service life and the uniquely designed gear make it one of the most reliable and efficient mini servos on the market.Features:- Longlife potentiometer- High durability- Metal gearTechnical dataWidth: 12 mmHeight: 30 mmLength: 30 mmWeight: 0.019 kgServo type: standardSpecial features: analogMotor type servos: brushedGear: metalOperating voltage in V: 4,8-6,0 V

Digital servo Classification: Standard Motor: Brush motor Gearbox: Metal Number of teeth on output pinion: 25 Housing: Plastic Number of ball bearings: 2 Operating voltage: 4,8 - 6,0V Setting time (sec) to 60 degrees: 0,20 at 4,8 V and 0,18 at 6,0 V Setting force (kg): 13,0 at 4,8 V and 16,0 at 6,0 V Weight (g): 61,0 Dimensions L/W/H (mm): 40,7 x 19,6 x 42,4 Scope of delivery: Servo including servo lever and fastening screws Area of ​​application: Airplane, car, boat Possible application examples: Steering servo in 1/8 scale buggies and truck models, 50s model aircraft, steering axle control of low-loader trailers. Packaging: Blister, large

Digital servo Classification: Mini Motor: Brush motor Gearbox: Plastic Number of teeth on output pinion: 21 Housing: Partial metal/plastic Number of ball bearings: 1 Operating voltage: 4,8 - 6,0V Setting time (sec) to 60 degrees: 0,13 at 4,8 V and 0,09 at 6,0 V Setting force (kg): 1,8 at 4,8 V and 2,2 at 6,0 V Weight (g): 13,6 Dimensions L/W/H (mm): 22,8 x 12,0 x 25,4 Scope of delivery: Servo including servo lever and fastening screws Area of ​​application: Airplane, car, boat Possible application examples: Swashplate for smaller helicopters, tow bar/differential lock operation on truck models, fifth wheel coupling operation. Packaging: Blister, small

Servo Futaba P-S3115 Micro. Micro servo. 13mm servo 17gr., 28Ncm, 0,11sec/45° 28 x 13,0 x 29,7 mm. 4,8 - 6,0V. Incl. mounting material and various rudder horns/discs. Servo for mast adjustment of the robbe forklift!Popular 13mm servo with plastic gear.Powerful analog servo with plastic gearLow-wear potentiometerRobust plastic housingHigh resolutionHigh positioning accuracy

1x Waterproof-Servo CS-13 MG with JR connector. Dimensions: 41x20x38mm. 4,8-6V voltage. Actuating torque at 6V: 135Ncm. Actuating time approx. 0,12sec./60°. Weight 49 g. Accessories: 2 rudder levers and screws. The CARSON CS-13 MG servo is a powerful and fast servo in standard size. Ball bearings and the metal gear ensure a long service life of the servo. Ideal for use in models that require a strong steering or positioning servo.

1x Servo Futaba P S3003, analog, standard servo universally. 19,8mm thick 32Ncm 0,18sec / 45 ° 40,4x19,8x36mm, 4,8 - 6V, 37,2gr.

1 servo HS-646WP (Hitec). Powerful analog servo. Dimensions: 41x20x40mm metal gear. 2 ball bearings. 70/90Ncm 0,26s/60°. Uni/JR connector. For 4,8-8,4V! The waterproof analog standard servo is tested according to the industry standard IP67. The HS-646WP offers what it should: it is 100% waterproof, unparalleled durability thanks to its exclusive metal gear, with 2 ball bearings on the output shaft. It is particularly suitable when high positioning precision and low play are important. The HITEC servo HS-646WP delivers maximum performance with minimal weight and with these data is sure to be a favorite for industrial applications. The long service life and the uniquely designed gear make it one of the most reliable and efficient analog servos on the market. The waterproof HS-646WP is ideal for ship and submarine model building, as well as off-road cars. Technical data: Width: 21 mm Height: 40 mm Length: 41 mm Weight: 0.058 kg Servo type: Standard Special features: Wide-voltage analog Motor type servos: brushed Gearbox: Metal Operating voltage in V: 4,8-8,4 V Setting time s/60° at 4,8 volts: 0.26 Setting time s/60° at 6,0 volts: 0.22 Torque in kgcm at 4,8 volts: 7 Torque in kgcm at 6,0 volts: 9 Gearing: 24T Ball bearings: Yes Waterproof: Yes Recommended flight: No Recommended helicopter: No Recommended car: Yes Recommended boat: Yes

1 servo DES-708 BB,MG, digital.Graupner. With metal gear and 2 ball bearings. Voltage 4,8-6,0V. Dimensions: 40x39x19,5mm without mounting flanges.Weight 53g. Torque 88/105 Ncm (4,8/6,0V). Graupner digital servo DES 708.Standard servo from Graupner.Toothing: 25ZThis Graupner servo is supplied with 4 servo disks and mounting material.

1x standard servo CS-5 with JR connector. Dimensions: 38,5x19x32mm. 4,8-6V voltage. Actuating torque at 4,8V: 50Ncm. Actuating time approx. 0,17sec./60°. Weight 39 g. Accessories: 2 rudder levers and screws.

1x Low-Profile-Servo CS-3 with JR connector Dimensions: 38,5x19x25mm. 4,8-6V voltage. Actuating torque at 4,8V: 31Ncm. Actuating time approx. 0,17sec./60°. Weight 39 g. Accessories: 2 rudder levers and screws. Low-Profile-Servo, waterproof. Splashproof.

Extremely powerful digital servo Classification: Standard Motor: Bell-type armature Gearbox: Steel Number of teeth on output pinion: 25 Housing: Solid metal Number of ball bearings: 2 Operating voltage: 4,8 - 6,0V Setting time (sec) to 60 degrees: 0,16 at 4,8 V and 0,13 at 6,0 V Setting force (kg): 25 at 4,8 V and 30 at 6,0 V Weight (g): 80 Dimensions L/W/H (mm): 40,8 x 20,2 x 36,4 Scope of delivery: Servo including servo lever and fastening screws Area of ​​application: Airplane, car, boat Possible application examples: Steering servo for trucks (also off-road), linkages with high power requirements. Packaging: Blister, large

Micro servo SES 85. 23x10x21,8mm. 8,5Ncm 0,08sec./40°. 6 gr. 4,8-6,0V. Nominal values ​​measured at 6,0V. Incl. various servo arms and mounting material.

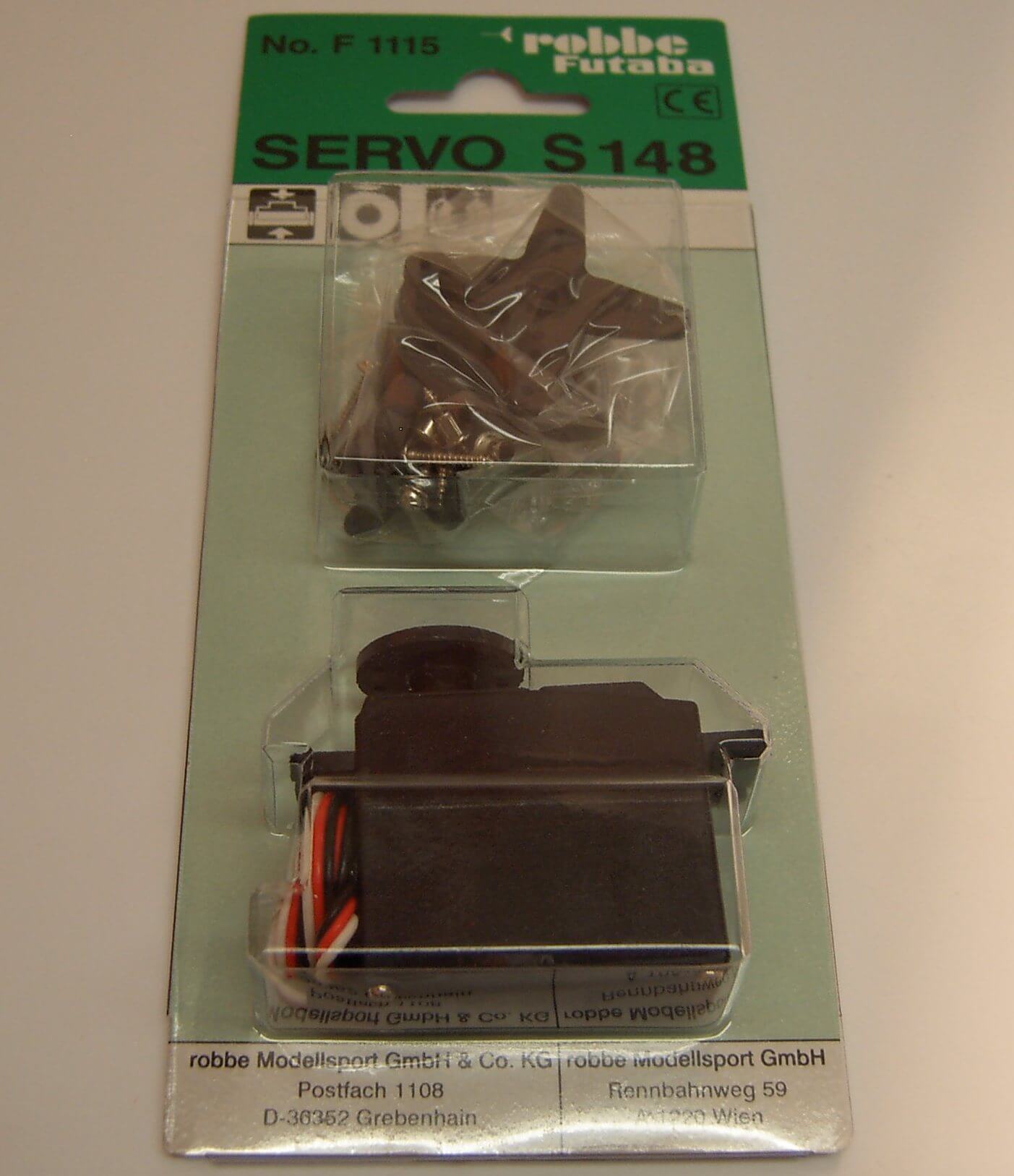

Servo Futaba P S148. Universal servo. Standard servo universally 20,0mm thick 30Ncm 0,16sec / 45 ° 41x20x36mm, 4,8 - 6V, 44gr. Incl. Assembly parts / Servo Arm.

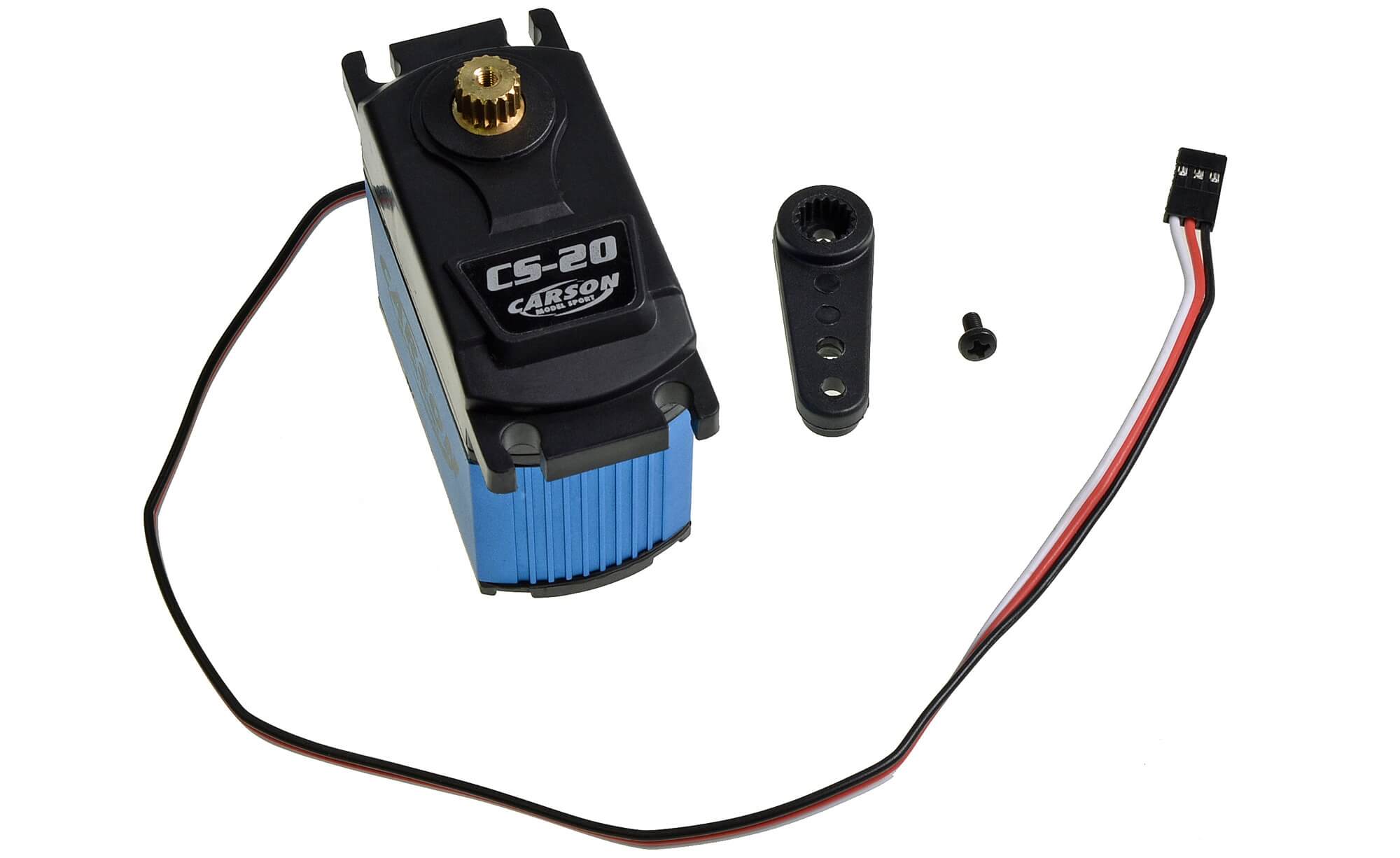

1x power servo CS-20 with JR connector. Dimensions: 76x54x32mm. 4,8-6V voltage. Actuating torque at 4,8V: 207Ncm. Actuating time approx. 0,2sec./60°. Weight 143g. Accessories: 2 rudder levers and screws. Powerful large model servo with metal gears. Technical data: Operating voltage 4,8-6V Actuating time at 6V 0,2 sec/60° Actuating time at 6V: 0,2 sec/60° Actuating torque: at 4,8V - 207 Ncm, at 6V - 225 Ncm Dimensions: 75,8 x 53,9 x 32,1mm Weight 143g.

Digital servo Classification: Mini Motor: Brush motor Gearbox: Plastic Number of teeth on output pinion: 21 Housing: Partial metal/plastic Number of ball bearings: 1 Operating voltage: 4,8 - 6,0V Actuating time (sec) to 60 degrees: 0,16 at 4,8 V and 0,13 at 6,0 V Actuating force (kg): 3,1 at 4,8 V and 3,9 at 6,0 V Weight (g): 15,8 Dimensions L/W/H (mm): 22,8 x 12,0 x 29,4 Scope of delivery: Servo including servo lever and fastening screws Area of ​​application: Airplane, car, boat Possible application examples: Swashplate for smaller helicopters, actuation of tow bar/differential locks on truck models, fifth wheel actuation. Actuation of hydraulic valves (not suitable for every manufacturer!) Packaging: Blister, small

HITEC Servo D-625MW digital servo Dimensions: 40x20x38mm. 68g. Metal gear. 6,3/8,8/10,0kgcm. 0,20s/0,15s/0,13S/60°. Voltage 4,8-7,4Volt. Connector JR-UNI

1 servo HS-5625MG (Hitec). Powerful digital servo. Dimensions: 41x20x38mm. Metal gear. 2 ball bearings. 80/100Ncm 0,17s/60°. Uni/JR connector. For 4,8-6V! For applications that require a fast standard digital servo, the HS-5625MG is an excellent choice. The HS-5625MG servo is fully programmable and offers unparalleled durability thanks to its exclusive metal gear, which is particularly suitable when low backlash and high positioning precision with moderate mechanical shock are important. The HITEC servo HS-5625MG delivers maximum performance with minimal weight and with these data is sure to be a favorite for industrial applications. The long service life and the uniquely designed gear make it one of the most reliable and efficient mini servos on the market. The HS-5625MG servos for the demanding model sports enthusiast, whether in the aircraft, car or boat sector. Features: Digital MOS-FET amplifier Longlife potentiometer High holding power Two ball bearings Metal gear Technical data: Width: 20 mm Height: 38 mm Length: 41 mm Weight: 0.06 kg Servo type: Standard Special features: Digital Servo motor type: brushed Gear: Metal Operating voltage in V: 4,8-6,0 V Setting time s/60° at 4,8 volts: 0.17 Setting time s/60° at 6,0 volts: 0.14 Torque in kgcm at 4,8 volts: 8 Torque in kgcm at 6,0 volts: 10 Gearing: 24T Ball bearings: Yes Waterproof: No Recommended flight: Yes Recommended helicopter: Yes Recommended car: Yes Recommended boat: Yes

1x special servo HSR-2645CR (Hitec). 360° servo. Dimensions: 41x20x38mm. 53gr. Endlessly rotating servo! 80/100Ncm metal gear. Uni/JR connector. For 4,8-7,4V! 46/72 rpm. Ball bearing. Endlessly rotating servo with 1 control disc (round) and fastening material. Servo rotates endlessly in both directions (suitable for drives), depending on the position of the control stick (encoder in the transmitter). Digital servo, programmable, wide-voltage: 4,8-7,4V. 2 ball bearings. 3 metal number wheels.

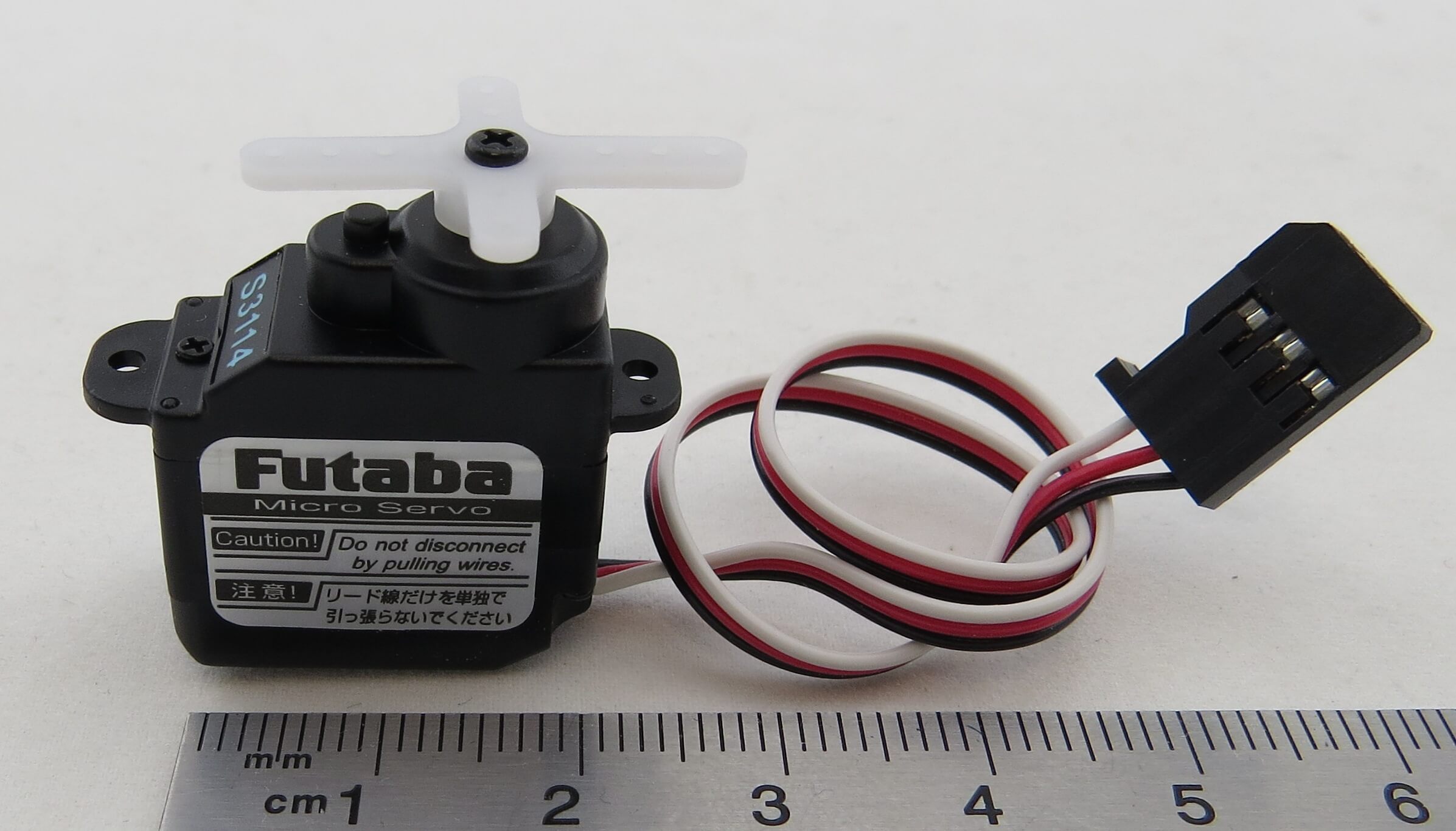

Servo Futaba S3114 nano, ultra-fast 11mm servo, 7,8gr., 17Ncm, 0,07sec/45° 22 x 11,0 x 20 mm. Incl. mounting material/servo arm. Operating voltage: 4,8 - 6,0VWeight: 7,8gr.Analog micro servo with plastic gearLow-wear potentiometerRobust plastic housingHigh resolutionHigh positioning accuracy

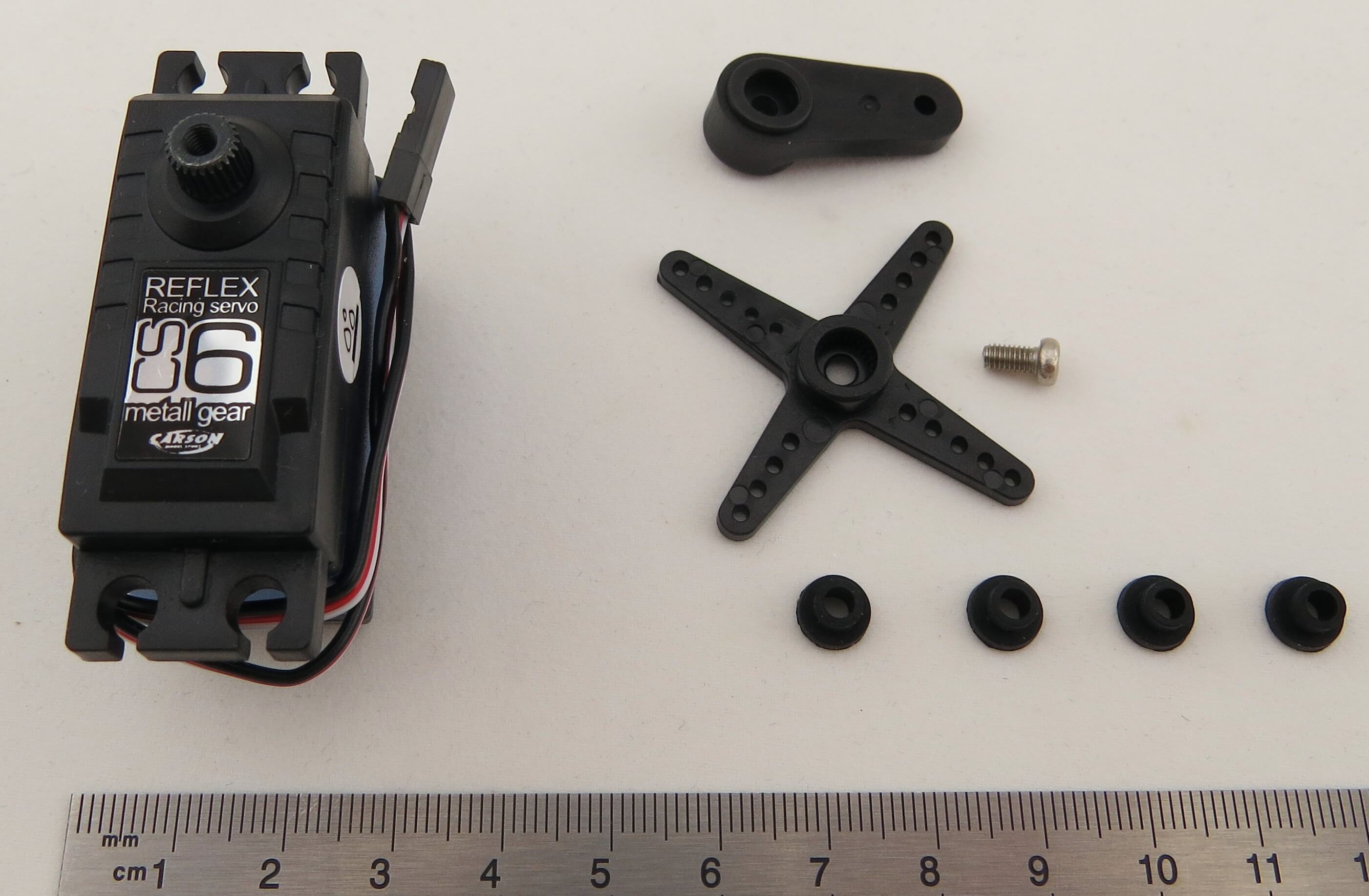

1x Waterproof servo CS-6MG with JR connector. Dimensions: 38,5x19x32mm. 4,8-6V voltage. Actuating torque at 6V: 60Ncm. Actuating time approx. 0,2sec./60°. Weight 50 g. Accessories: rudder lever and screws. The waterproof CARSON CS-6 MG servo is a powerful and fast servo in standard size for use in damp and wet environments (autumn/winter). The robust metal gear ensures a long service life of the servo. Ideal for use in models that require a strong steering or positioning servo.

1 servo HS-5585MH (Hitec). Powerful digital servo. Dimensions: 40x20x38mm. 59gr. Metal gear. 2 ball bearings. 114/117Ncm 0,17s/60°. Uni/JR connector. For 4,8-8,4V! Suitable for 2s operation! Powerful digital servo. Also suitable as a steering servo. Scope of delivery: 1 servo 4 control discs/levers Fastening material

1 servo HS-5565MH (Hitec). Powerful digital servo. Dimensions: 40x20x38mm. 59g. Metal gear. 2 ball bearings. 110/140Ncm 0,11s/60°. Uni/JR connector. For 6-8,4V! Powerful digital servo. Also suitable as a steering servo.Scope of delivery:1 servo4 control discs/leversFastening materialSuitable for 2S LiPo operation.Technical data:Width: 20 mmHeight: 38 mmLength: 40 mmWeight: 59 grServo type: standardSpecial features: wide-voltage digitalMotor type servos: brushedGearbox: metalOperating voltage in V: 4,8-8,4 VSetting time s/60° at 6,0 volts: 0.11Setting time s/60° at 7,4 volts: 0.09Torque in kgcm at 6,0 volts: 11Torque in kgcm at 7,4 volts: 14Gearing: 24TBall bearings: YesWaterproof: NoRecommendation for flight: YesRecommendation for helicopter: YesRecommendation for car: YesRecommendation for boat: Yes

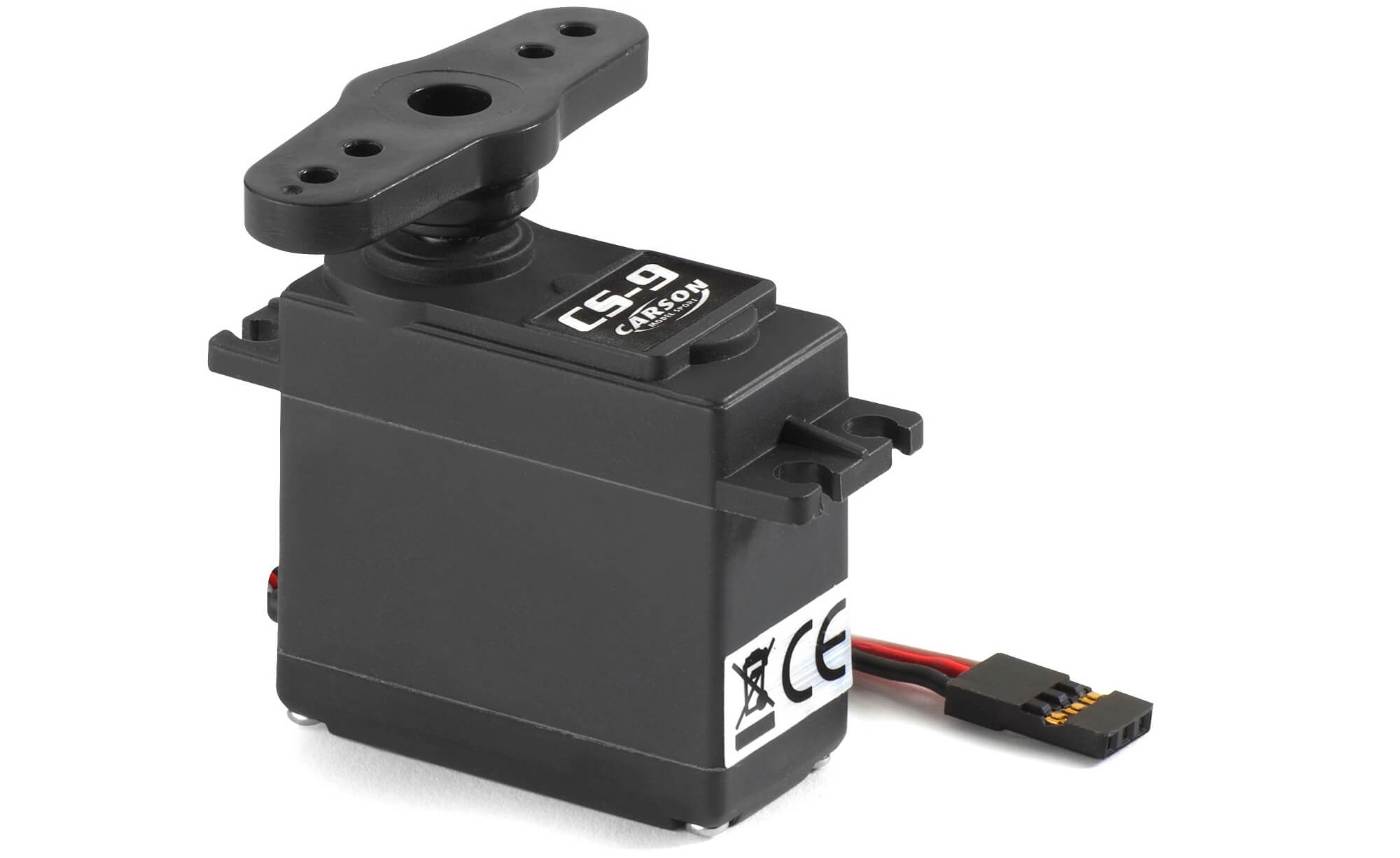

1x standard servo CS-9 with JR connector. Dimensions: 41x42x21mm. 4,8-6V voltage. Actuating torque at 4,8V: 80Ncm. Actuating time approx. 0,2sec./60°. Weight 58 g. Accessories: 2 rudder levers and screws. Servo with metal gear.

1 special servo HSR-1425CR (Hitec). 360° servo. Dimensions: 41x20x37mm. 42gr. Endlessly rotating servo! 28/34Ncm nylon gear. Uni/JR connector. For 4,8-6V! 44/52 rpm. 2 ball bearings. Endlessly rotating servo with 1 control disc (round) and mounting material. Servo rotates endlessly in both directions (suitable for drives), depending on the position of the control stick (encoder in the transmitter). Width: 20 mm Height: 37 mm Length: 41 mm

Servo MD250MW (Hitec). Digital 15mm servo. Dimensions: 35x15x33mm. 31gr. Metal gear. 4,9/8 kgcm. 0,16s/60° Uni/JR connector. Servo is supplied with aluminum servo arm. Magnetic encoder / Hall sensorHighest resolution of the servo travelSuper fine responseProgrammableHigh actuating forceExcellent holding forceMetal gear2 ball bearings MR106/MR8525 toothing on the servo outputServo is supplied with aluminum servo armTechnical data:Acting time: 0,2 sec/60° at 4,8V. 0,16 sec/60° at 6V0,13 sec/60° at 8,4VTriving force: 4,9 kgcm at 4,8V. 6kgcm at 6V. 8kgcm at 8,4V.Dimensions: 35x15x33 mm

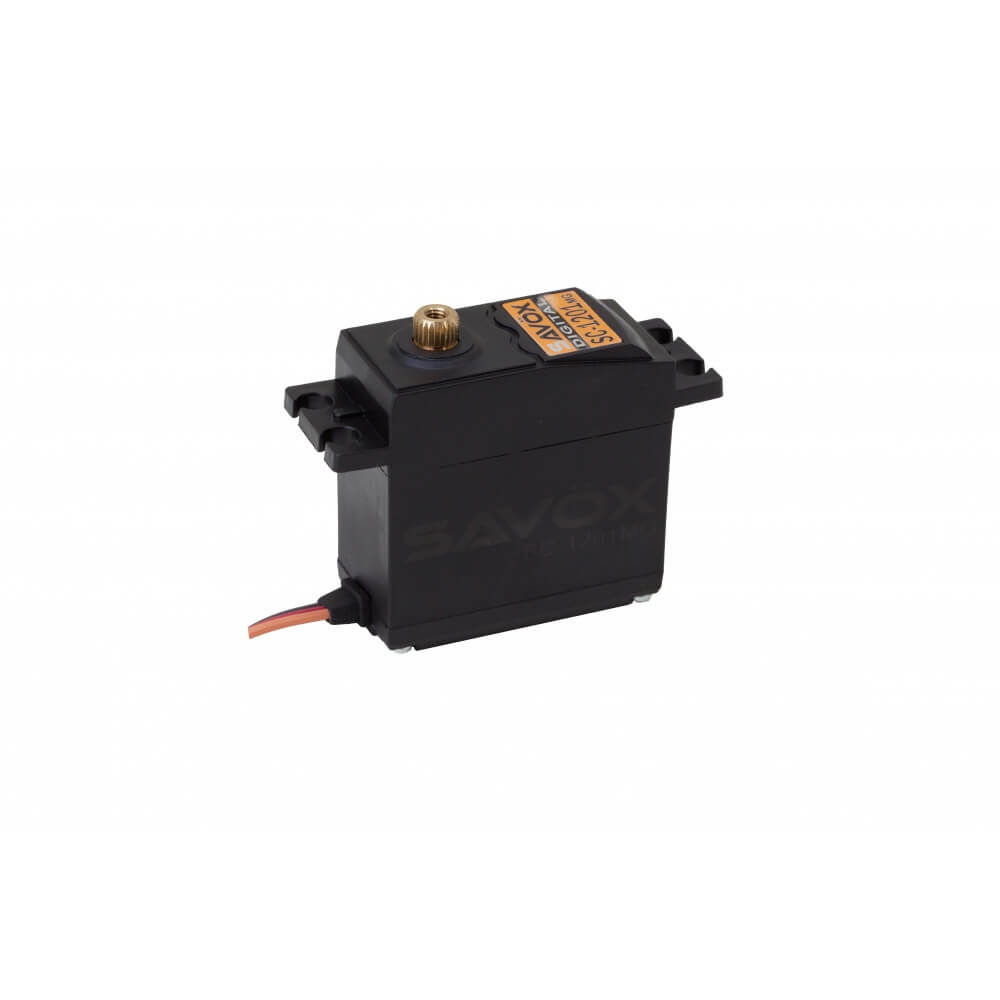

SAVÖX Servo SC-1201MG digital servo. Dimensions: 40,7 x 20 x 42,4mm. 69 grams. Strong digital servo. Digital servoClassification: StandardMotor: Bell-armature motorGearbox: MetalNumber of teeth on output pinion: 25Housing: Partial metal/plasticNumber of ball bearings: 2Operating voltage: 4,8 - 6,0VSetting time (sec) to 60 degrees: 0,15 at 6,0 VTriggering force (kg): 18,0 at 4,8 V and 25,0 at 6,0 VGearing (gr): 69,0Dimensions L/W/H (mm): 40,7 x 20 x 42,4Scope of delivery: Servo including servo lever and fastening screwsArea of ​​application: Airplane, car, boatPossible application examples: Steering servo in 1/8 scale buggies and truck models, 50s model aircraft, steering axle control of low-loader trailers.Packaging: Blister, large

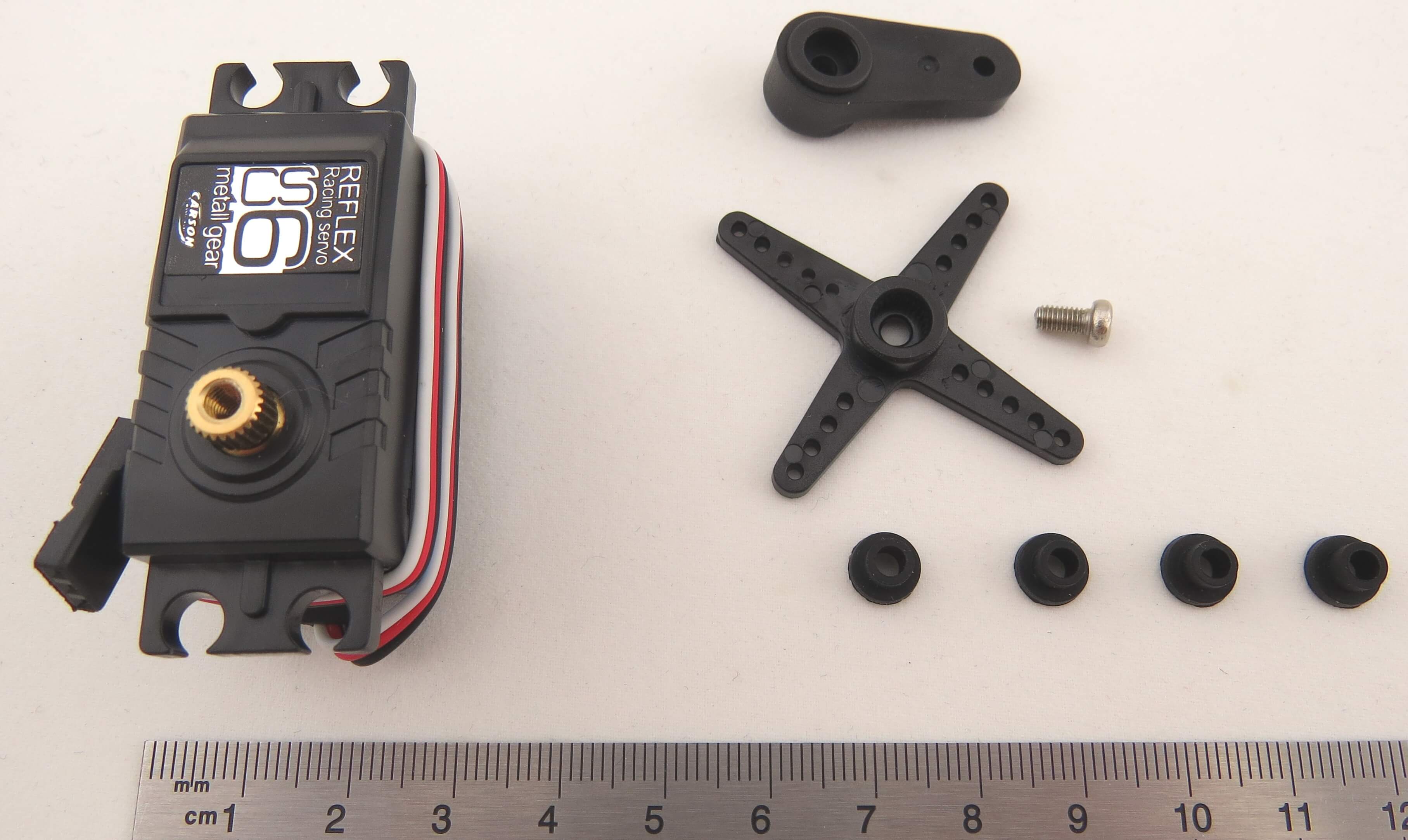

1x Waterproof servo CS-6 MG with JR connector. Dimensions: 38,5x19x32mm. 4,8-6V voltage. Actuating torque at 6V: 60Ncm. Actuating time approx. 0,2sec./60°. Weight 50 g. Accessories: rudder lever and screws. Servo in low-profile design - when less space is available.

1 servo HS-75BB (Hitec). Analogue, strong special servo. Dimensions: 44x23x25mm. 35g. Nylon gear. 6,7/8,4kgcm. 0,45s/60°. Uni/JR connector. Servo is supplied with various servo arms. Voltage 4,8-6 volts. Ball bearing output. Special servo: This servo does NOT work proportionally! It runs slowly - without interruption - from full deflection to full deflection. Low-profile servo of the <= 23 mm classThe robust HS-75BB low-profile servo especially for retractable landing gear or special functions.The servo does not work proportionally, but runs slowly from full deflection to full deflection (180 degrees) without interruption.The HS-75BB analog servo impresses with its three-pole brush motor, elastic nylon gears and a ball bearing on the output shaft, which is particularly suitable when low play and high positioning precision are important.Features:-Low profile design-High torque-Slow speed for realistic retraction action-Nylon gear-1 ball bearingTechnical dataWidth: 23 mmHeight: 25 mmLength: 44 mmWeight: 0.035 kgServo type: low profileSpecial features: analogMotor type servos: brushedGear: nylonOperating voltage in V: 4,8-6,0 VPositioning time s/60° at 4,8 Volt: 0.45Setting time s/60° at 6,0 Volt: 0.34Torque in kgcm at 4,8 Volt: 7Torque in kgcm at 6,0 Volt: 8Gearing: 24TBall bearings: YesWaterproof: NoRecommendation for flight: YesRecommendation for helicopter: NoRecommendation for truck: YesRecommendation for boat: Yes

Standard servo with UNI connection. Supplied with various control horns and mounting material. 45,5gr. 40,5x20,5x43,5mm. Analogue servo. 32/39 Ncm at 4,8/6,0V. 0,12sec./60°. Standard servo with UNI connectionServo in standard size. Universally applicable.Supplied with various servo horns and mounting material. Technical data:Weight 45,5 gHeight 43,5 mm Width 40,5 mmServo technology: Analog servoActuating torque at 20,5 / 4,8 V 6 / 32 NcmActuating time at 39 / 4,8 V 6 s (0,12°) / 60 s (0,1°)Gear: PolyamideBearing type: Plain bearingConnector system: JR/UniCable length: approx. 60 mmServo type: Standard servo

1 servo C-577, Graupner. Universal standard servo for price-conscious model builders. Voltage 4,8-6,0V. Dimensions: 38x19x37mm without mounting flanges. Weight 39g. Torque 40 Ncm (at 6,0V). Standard servo from Graupner. With 3 servo disks and mounting material. Graupner servo. Sold out! Successor article is: 10525

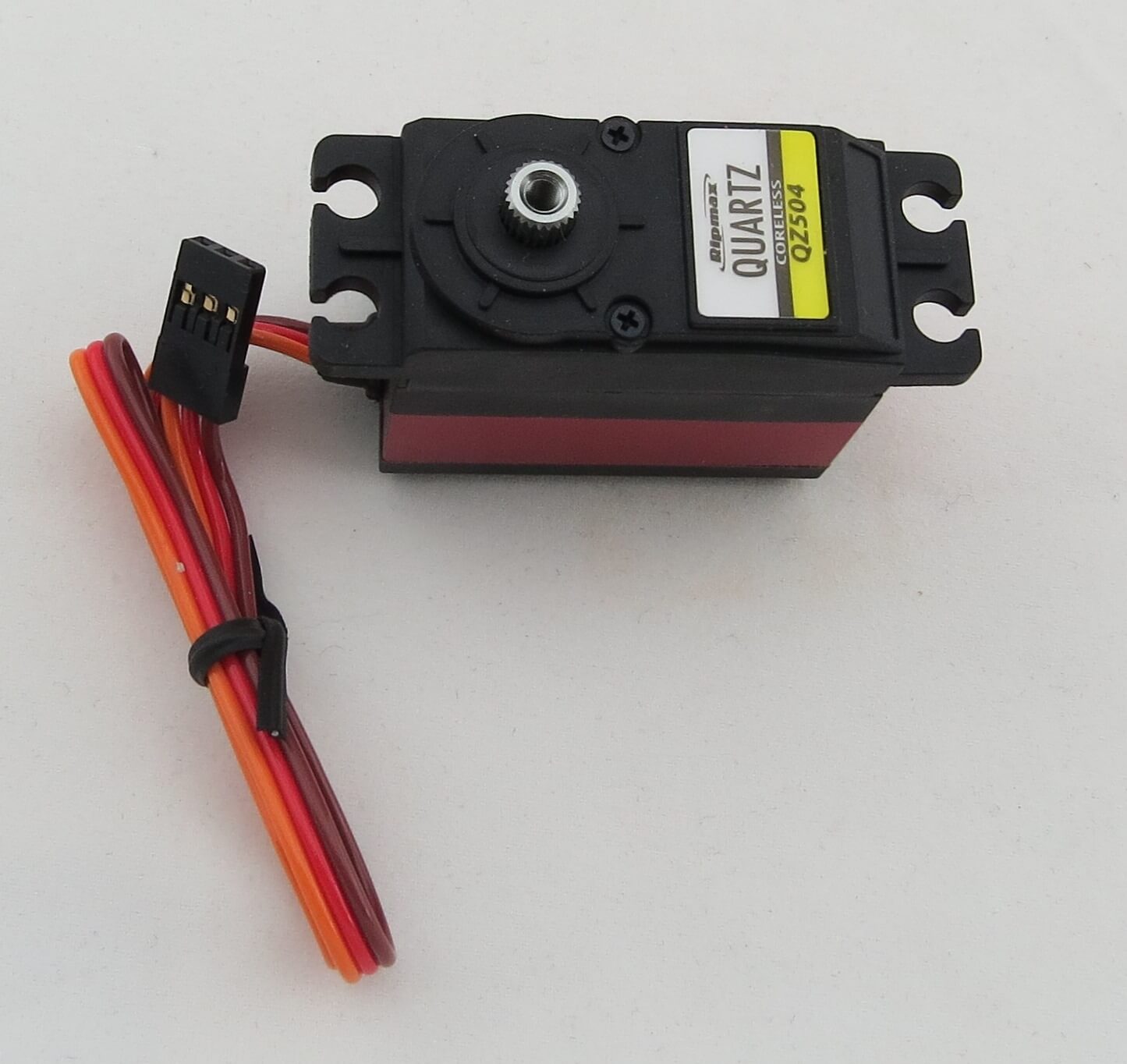

1 servo QUARTZ QZ504. High performance servo. Dimensions: 40,5x20,2x36,5mm, 61gr. Torque 115/138Ncm. 0,12s/60°. Uni/JR connector. Servo is supplied with 5 different servo arms. This high-quality high-performance servo was developed for the demanding model builder who only wants the best. The various combinations of composite and metal housings, ball bearings, coated metal gears, regular and coreless motors, as well as digital variants offer a wide variety of solutions for almost every application for which a servo is required. Are you looking for the right servos for scale models, jets, helicopters, boats or cars? In this line you will find at least one servo that meets your requirements. If you need high actuation speed, we have it! If you need power, we have it! If you want a slim or small servo, we have it! The servos with full metal housing are made of solid aluminum using CNC technology and offer maximum stability and rigidity. The gears vary depending on the specification, in combinations of nylon, brass and aluminum as the base material and have been coated where necessary for greater wear resistance and reduced friction. This usually means that titanium nitride coreless motors (bell armature) deliver speed and power, and standard motors offer incredible value. Check out the specs and performance and we're sure you'll agree.Specification:Case Center: AluminumMain Body: PlasticOperating Frequency: 1520æs/330HzWater Resistant: NoWeight: 61gBearings: 2 Ball BearingsGear Type: Aluminum w/TiCn + BrassSpeed: 0.12 sec @ 4.8vSpeed: 0.10 sec @ 6.0vTorque: 11.53 kg/cm @ 4.8vTorque: 13.83 kg/cm @ 6.0vVoltage: 4.8 - 6.0vDimensions: 40.5 x 20.2 x 36.5mmElectric Motor: Coreless (bell armature)

Servo Robbe FS 31 pico (8449). 8mm servo 4,7gr., 9Ncm, 0,15sec / 45 17 ° x x 22,0 8 mm. Incl. Assembly parts / Servohebel.

HITEC Servo D-955TW digital servo dimensions: 40x20x37mm. 66g. Titanium gear. 18/24/29kgcm. 0,19s/0,15s/0,12s/60°. Voltage 4,8-7,4Volt. Connector JR-UNI

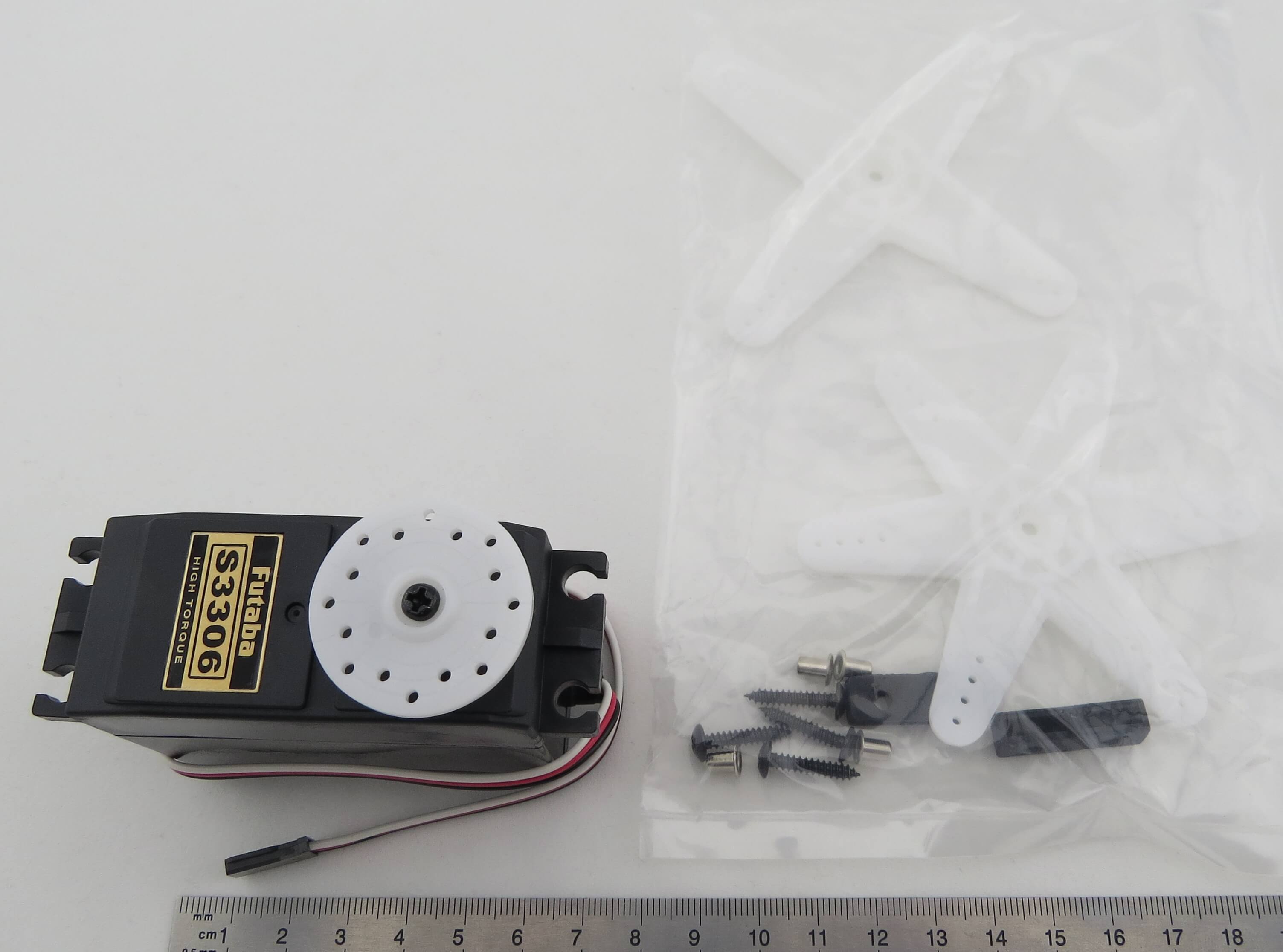

1x Servo Futaba P-S3306. Large servo. 30mm servo 128gr., 240Ncm, 0,2sec/45°, 66 x 30 x 57,1 mm. Incl. mounting material and various rudder horns/disks. Powerful analog servo with plastic gear Ball bearing Robust plastic housing High resolution High repeatability Low-wear potentiometer WaterproofTechnical specifications:Operating voltage: 4,8 - 6,0 VTegulation speed 60° (6,0 / 4,8 V): 0,16 / 0,20 sActuating torque (6,0 / 4,8 V): 24,0 / 19,2 kgcmControl frequency: 50...70 HzDimensions: 66x30x57,1 mmWeight: 128 gAnalog maxi servo with the enormous actuating force of 240 Ncm. The double ball bearing servo with powerful, 5-stage plastic gear is suitable for use in large aircraft models as well as in the truck sector.

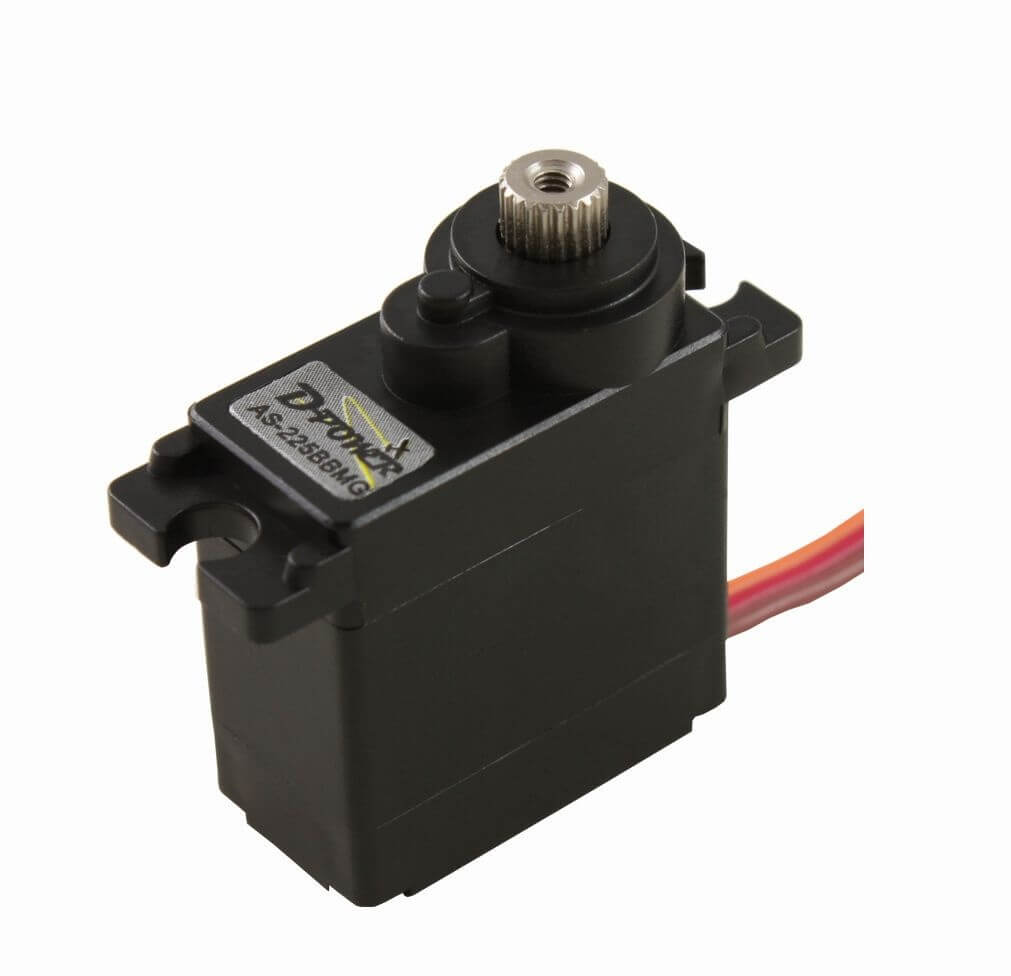

1 servo AS-225BB MG. Analogue strong micro servo. Dimensions: 22,5x11,5x24,6mm. 12g. Metal gear. 2,5kg/cm. 0,14-0,13s/60°. Uni/JR connector. Servo is supplied with 4 servo levers and mounting accessories. It is considered one of the most robust servos in the micro class. The AS-225BB MG servo offers unparalleled durability thanks to its exclusive metal gear and 2 ball bearings on the output shaft, which is particularly suitable when low play and high positioning precision are important.The AS-225BB MG servo delivers maximum performance with minimal weight and with these data is also a favorite for industrial applications.The AS-225BB MG is ideal for applications in small but demanding models, such as park flyer models, small electric helis or RC cars/trucks.Technical data: Width: 11,5 mm Height: 24,5 mm Length: 22,5 mm Weight: 12,5gr Servo Type: Micro Special features: Analog Motor type servos: brushed Gear: Metal Operating voltage in V: 4,8-6,0 V Positioning time s/60° at 4,8 volts: 0.14 Positioning time s/60° at 6,0 volts: 0.13 Torque in kg/cm at 4,8 Volt: 2,5 Torque in kg/cm at 6,0 Volt: 2,7 Gearing: Micro Ball bearings: Yes, 2 pieces Waterproof: No Recommended flight: Yes Recommended helicopter: Yes Recommended car: Yes Recommended boat: Yes

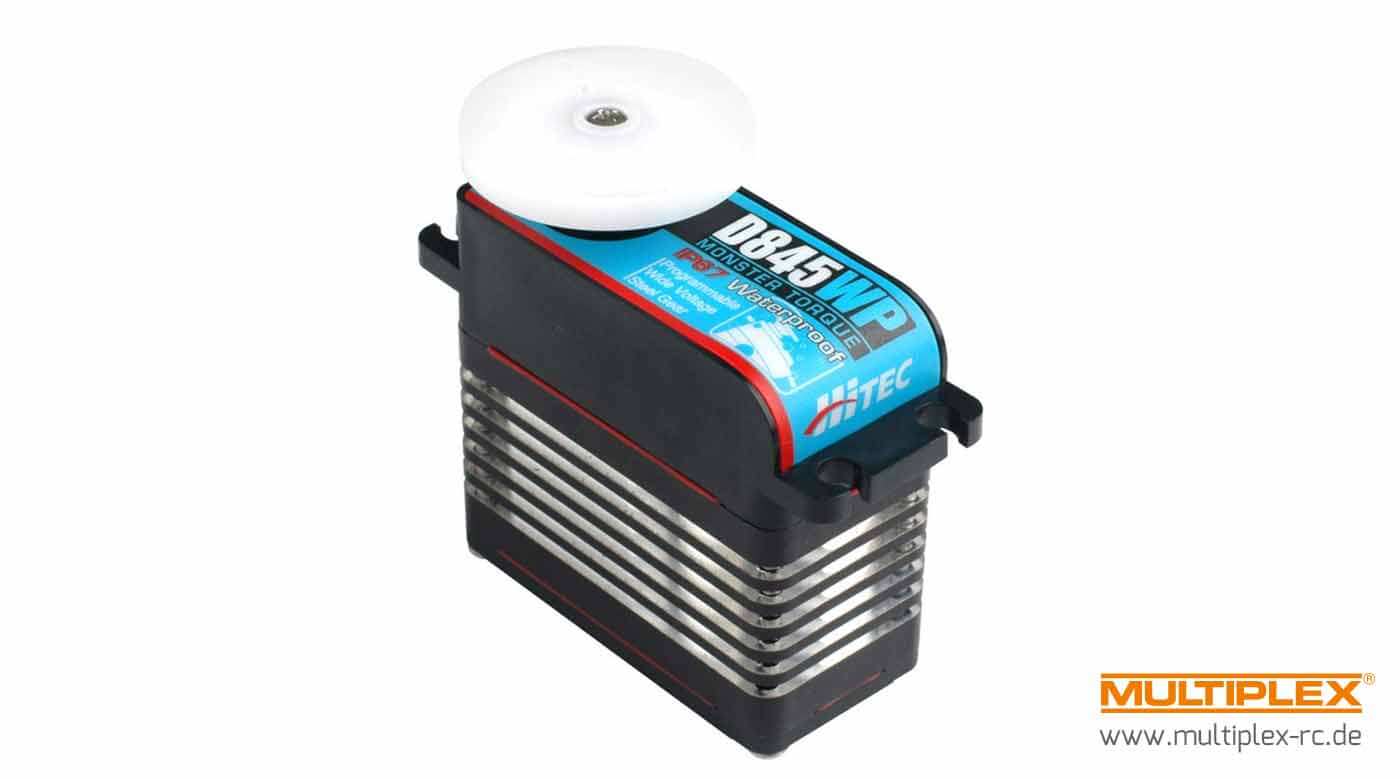

HITEC Servo D-845WP digital servo Dimensions: 66x32x32mm. 227g Waterproof to IP67. 32,5 / 40,5 / 50 kg cm 0,26s / 0,21s / 0,17s / 60 ° Spg. 4,8-7,4Volt. Plug JR UNI

1 servo FS-510BB MG. Double ball bearings. universal servo. metal gears. Toothing Z25. 40,5x20x38mm. 86/93Ncm. 0,15s/60°. 62gr. 4,8-6V.

1 Servo Tiger MG (Multiplex). Powerful standard servo. Dimensions: 40x20x40mm. 57gr. Metal gear. 2 ball bearings. 80/100Ncm. 0,16s/40°. Uni/JR connector. Powerful standard servo. Also suitable as a steering servo.Scope of delivery: 1 servo 8 control discs/levers Fastening material Instructions
