1x servo patch cable 10cm. Both sides JR connector. 0,14qmm. BEIER-Electronic Accessories.

Connection terminal for switching outputs For easy wiring of BEIER UFR-1230, SFR-1, UFR-1230D. AKL-8. Scope of delivery:10-pin connection terminal with spring contacts10-pin flat edge cable, color-coded, approx. 20cm long, with post couplings on both sidesOperating instructions

1x data cable K-USB-2. For live diagnosis, transfer of sound projects. Connection via USB interface. The data cable is NOT required. With the data cable K-USB-2, the sound modules SFR-1, SFR-1-D, USM-HL-2, light modules LM-xx, USM-RC-2 and USM-RC-3 as well as the speed controllers UFR-1230 /UFR-1230-D can be connected to a PC via a USB interface.The data cable has two functions:1. Live diagnosisWith the help of the data cable, the sound teacher can receive and display the current diagnostic data live (e.g. position of the proportional channels, status of the inputs and outputs, nautic values, etc.). This option is very helpful when troubleshooting.Note:The sound modules SFR-xx, USM-HL-2 and USM-RC-x can also save the diagnostic data on the SD card. This recorded data can be viewed without a data cable using the Sound Teacher's diagnostic function. However, the saved values ​​have the disadvantage that you only see the "past" and not what is currently happening (live) on the module. 2. Transferring the configurations and sounds from the Sound Teacher/Drive Teacher to the SFR-x, USM-HL-2, USM-RC-x and UFR-1230/UFR-1230-D modules If a sound or a setting in the configuration is to be changed, the SD card must normally be unplugged from the module, plugged into the PC's card reader, the project data saved to the SD card using the Sound Teacher and the card plugged back into the sound module. However, if changes are made frequently, which occur particularly when the device is first put into operation or when testing new functions, unplugging and plugging can quickly become annoying. Using the data cable, all changes can be easily transferred to the sound module without having to keep re-plugging the SD card. However, transferring sounds using the data cable is relatively slow! A sound that is 10 seconds long takes around 60 seconds to transfer using the data cable. Therefore, transferring long sounds or large, new projects using the data cable is only advisable to a limited extent. The data cable is not absolutely necessary for setting up the sound module, but is often very helpful if you want to work a lot with the various setting options of the sound module.

1x servo patch cable 30 cm. Both sides JR servo connector. 0,14qmm. BEIER-Electronic Accessories.

1x Beier sound module USM-RC-2 WITH DVD. Individually programmable sound, light and movement module. Over 140 finished sound projects. Comes with DVD and instructions. The sound module was specially developed for RC model making in order to create authentic and speed-dependent sounds, extensive lighting options and additional servo movements. Functional scope: -Individually programmable sound, light and movement module -Over 140 finished sound projects with preset and customizable sounds and noises -Use of your own noises, sounds and songs possible -Speed-dependent motor and movement sounds -Optimal sound thanks to powerful amplifier -12 outputs for switching LEDs, lamps, relays etc. -Freely adjustable light sequences, e.g. for an all-round light-2 programmable servo outputs-Easy updating of the sound teacher and the firmware-Easy transfer of all settings via micro SD card The USM-RC-2 sound module is characterized by its high adaptability. All settings are saved on a micro SD card and can therefore be easily changed. All you need is a reader and the "Sound Teacher" software. There are 3 different operating modes: - Digital operation (connection to the receiver) The connection is made using a servo patch cable directly to the receiver and parallel to the speed controller. - Analogue operation (connection directly to the motor) - Mixed operation (combination of digital and analogue operation) These modes are used for speed controllers with special functions, such as cruise control. The speed of the model is measured directly from the motor. The functions can be controlled in various ways. The remote control is assigned using the sound teacher. Sound functions: - Driving and engine sounds for two motors (speed-dependent) - Additional sounds (horns, hydraulic and compressed air noises, etc.) - Random sounds (chain squeaking, animal and ambient noises) Detailed: - Starting noises (cold/warm start) - Stopping noises - Starting noises - Stopping noises - Standing noises - Braking noises - Reversing noises Only up to 2 loudspeakers need to be connected to the sound module. Light functions: The sound module offers 12 switching outputs. The individual outputs can be configured in the Sound Teacher. This enables functions such as frequent flashing, flickering or on/off control. Movement functions: The USM-RC-2 sound module also offers 2 outputs for connecting servos. Technical data: - Supply voltage: 5-14V DC - Quiescent current: approx. 90mA operation: (sound only) max. 3A, (sound and switching outputs) max. 6A-Switching inputs: 5-Switching outputs: 12-Proportional inputs: 4-Proportional outputs: 2 servo outputs-Recommended speakers: 4-8 Ohm-Volume adjustment: Via external potentiometer or remote control-Supported sound data: WAV format 8/16 bit mono/stereo, 22/44kHz-Sound output: 16 bit, mono, 44kHz-Weight: 25g-Dimensions: 66x44x17 mmScope of delivery:-Sound module USM-RC-2-Micro SD card (4GB) + adapter (item 9818)-2 pieces connection cable for speakers (25cm) (item 9814)-2 pieces servo patch cable (30cm) for connection to a receiver, item 9812-Ribbon cable (40cm) for connecting the switching outputs (item 9815)-Fuse holder + fuse 4A (item 9817)-DVD-ROM with software (sound teacher) and sounds-Operating instructions (manual, German)Sounds are available for the following vehicles:-Car - Ford F-350 (V8)-Car - Landrover Discovery TD-Car - Mercedes 320 CDI_1-Car - Mercedes 320 CDI_2-Car - Mercedes C63 AMG-Car - Mercedes G (diesel)-Car - Mercedes Sprinter-Car - V8-Car - VW Bus-Car - VW Golf GTI-Car - VW Beetle-Excavator - Liebherr-Excavator - Volvo-Airplane - Focke Wulf 190-Airplane - Me 109 G10-Airplane - Wright radial engine helicopter - Huey helicopter - Rescue helicopter dump truck - Volvo A25C crawler loader - Caterpillar locomotive - Climax locomotive - Steam locomotive - Steam locomotive_1 locomotive - Diesel locomotive - Electric locomotive - GP38 motorcycle - Harley Davidson tank - Elephant tank - Gepard tank - Gepard_1 tank - Jagdpanther tank - Jagdpanther_1 tank - KV-1 tank - Kanonenjagdpanzer tank - King Tiger tank - King Tiger_1 tank - Leopard 1 tank - Leopard 1_1 tank - Leopard 2 tank - Leopard 2A6 tank - M1 tank - M26 tank - M41 Walker Bulldog tank - MARS tank - Panther tank - Panther G tank - Panther G_1 tank - Panther_1 tank - Panzer III tank - Panzer III_1 tank - Panzer IV tank - Piranha IIIH tank - Sd.Kfz. 7-Tank - Sherman Tank - T-34 Tank - T-55 Tank - Tiger Tank - Tiger_1 Tank - Tiger_2 Tank - Tiger_3 Snowcat - PB300 Snowcat - PB600 Snowcat - PB600_2 Snowcat - Prinoth Beast Wheel Loader - Liebherr Wheel Loader - Liebherr L586 Crawler - DET250 Crawler - Liebherr PR734 Crawler - T100 Ship - Barge Ship - Steamship Ship - Steamship SS

1x volume potentiometer. For BEIER electronic modules. To adjust the volume. Wire length: 20cm. Resistance 100 kOhm. For SFR-1, USM-RC-2, USM-RC-3, USM-xx.

1x Beier sound module USM-RC-2 Individually programmable sound, light and motion module. Over 140 finished sound projects. Delivery without DVD and instructions. The sound module was specially developed for RC model making to create authentic and speed-dependent sounds, extensive lighting options and additional servo movements. Functional scope: - Individually programmable sound, light and movement module - Over 140 ready-made sound projects with preset and customizable sounds and noises - Use of your own noises, sounds and songs possible - Speed-dependent motor and movement sounds - Optimal sound thanks to powerful amplifier - 12 outputs for switching LEDs, lamps, relays etc. - Freely adjustable light sequences, e.g. for an all-round light-2 programmable servo outputs-Easy updating of the sound teacher and the firmware-Easy transfer of all settings via micro SD card The USM-RC-2 sound module is characterized by its high adaptability. All settings are saved on a micro SD card and can therefore be easily changed. All you need is a reader and the "Sound Teacher" software. There are 3 different operating modes: - Digital mode (connection to the receiver) The connection is made using a servo patch cable directly to the receiver and parallel to the speed controller. - Analog mode (connection directly to the motor) - Mixed mode (combination of digital and analog mode) These modes are used for speed controllers with special functions, such as cruise control. The speed of the model is measured directly from the motor. The functions can be controlled in various ways. The remote control is assigned using the sound teacher. Sound functions: - Driving and engine sounds for two motors (speed-dependent) - Additional sounds (horns, hydraulic and compressed air noises, etc.) - Random sounds (chain squeaking, animal and ambient noises) Detailed: - Starting noises (cold/warm start) - Stopping noises - Starting noises - Stopping noises - Standing noises - Braking noises - Reversing noises Only up to 2 loudspeakers need to be connected to the sound module. Light functions: The sound module offers 12 switching outputs. The individual outputs can be configured in the Sound Teacher. This enables functions such as frequent flashing, flickering or on/off control. Movement functions: The USM-RC-2 sound module also offers 2 outputs for connecting servos. Technical data: - Supply voltage: 5-14V DC - Quiescent current: approx. 90mA operation: (sound only) max. 3A, (sound and switching outputs) max.

Connection terminal for switching outputs For easy wiring of BEIER UFR-1230, UFR-1230D, SFR-1. AKL-8-W connection terminal with slot for 8 series resistors. With 20cm flat cable

1x 10-pin ribbon cable for BEIER sound module USM-RC-2, USM-RC-3, as well as sound controllers of the SFR series, controllers of the UFR series, light modules LM-BT-16-4, LM-IR-16-4. Length: 100cm.

1x volume potentiometer Mini.BEIER electronic module. For adjusting the volume. Strand length: 20cm. Resistance 100 kOhm. For SFR-1, USM-RC-2, USM-RC, USM-xx. Mini version.

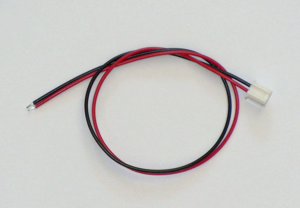

1x speaker cable. For connecting speakers. Suitable for BEIER sound module USM-RC-2. Length: 20 cm.

1x terminal for switching outputs For easy wiring of BEIER USM-RC-2 and 2 EXM.

1x Y-cable with fuse holder for connection to battery and speed controller with TAM plug connection, fuse (4A). For Beier sound module.

1x 10-pin ribbon cable for BEIER sound module USM-RC-2, USM-RC-3, sound speed controller of the SFR series, light modules LM-BT-16-4, LM-IR-16-4. Length: 40cm.

1x fuse holder 4A fuse to protect the Sound Module with a short circuit, Length: 30 cm. For BEIER-Electronic sound module.

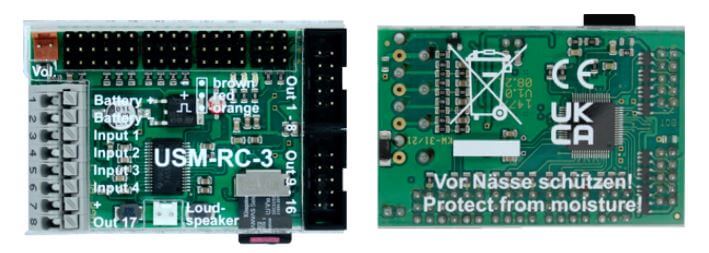

1x Beier sound module USM-RC-3 WITH USB stick. Individually programmable sound, light and movement module. Over 140 finished sound projects. Delivered with USB stick and instructions. The sound module was specially developed for RC model making in order to create authentic and speed-dependent sounds, extensive lighting options and additional servo movements. Functional scope: Individually programmable sound, light and movement module Over 140 ready-made sound projects with preset and customizable sounds and noises Use of your own noises, sounds and songs possible Speed-dependent motor and movement sounds Optimal sound thanks to powerful amplifier NF amplifier: 20W 16 outputs for switching LEDs, lamps, relays, etc. Freely adjustable light sequences, e.g. for an all-round light 4 programmable servo outputs Easy updating of the sound teacher and the firmware Easy transfer of all settings via micro SD card The USM-RC-3 sound module is characterized by its high adaptability. All settings are saved on a micro SD card and can therefore be easily changed. All you need is a reader and the "Sound Teacher" software. There are 3 different operating modes: - Digital operation (connection to the receiver) The connection is made using a servo patch cable directly to the receiver and parallel to the speed controller. - Analogue operation (connection directly to the motor) - Mixed operation (combination of digital and analogue operation) These modes are used for speed controllers with special functions, such as cruise control. The speed of the model is measured directly from the motor. The functions can be controlled in various ways. The remote control is assigned using the sound teacher. Sound functions: Driving and engine sounds for the motor (speed-dependent) Additional sounds (horns, hydraulic and compressed air noises, etc.) Random sounds (chain squeaking, animal and ambient noises) Detailed: Starting noises (cold/warm start) Stopping noises Starting noises Stopping noises Standing noises Braking noises Reversing noises Only 1 loudspeaker needs to be connected to the sound module. (4 Ohm/8 Watt is recommended.)Light functions:The sound module offers 16 switching outputs. The individual outputs can be configured in the Sound Teacher. This allows functions such as frequent flashing, flickering or on/off possible. Movement functions: The USM-RC-3 sound module also offers 4 outputs for connecting servos. Technical data: Supply voltage: 5-15V DC Quiescent current: approx. 80mA operating current: depends on volume and switched load Switching inputs: 4 Switching outputs: 16 Proportional inputs: 8 Proportional outputs: 4 Servo outputs Recommended loudspeakers: 4-8 Ohm Volume adjustment: via external potentiometer or remote control Supported sound data: WAV format 8/16 bit mono/stereo, 22/44kHz Sound output: 16 bit, mono, 44kHz Weight: 25g Dimensions: 65x43x17 mm Scope of delivery: Sound module USM-RC-3 Micro SD card (32GB) + adapter (item 9818) 1 piece connection cable for loudspeaker (25cm) (item 9814) 2 pieces servo patch cable (30cm) for connection to a receiver, item 9812 1x ribbon cable (40cm) for connecting the switching outputs (item 9815 1x Fuse holder + fuse 4A (item 9817) USB stick with software (Sound-Teacher USM-RC-3) and sounds Operating instructions (manual, German) Sounds are available for the following vehicles: Car - Ford F-350 (V8) car - Landrover Discovery TD car - Mercedes 320 CDI_1 car - Mercedes 320 CDI_2 car - Mercedes C63 AMG car - Mercedes G (diesel) car - Mercedes Sprinter car - V8 car - VW Bus car - VW Golf GTI car - VW Beetle excavator - Liebherr excavator - Volvo airplane - Focke Wulf 190 airplane - Me 109 G10 airplane - Wright radial engine helicopter - Huey helicopter - Rescue helicopter dump truck - Volvo A25C crawler loader - Caterpillar locomotive - Climax locomotive - Steam locomotive locomotive - Steam locomotive_1 locomotive - Diesel locomotive - Electric locomotive - GP38 motorcycle - Harley Davidson tank - Elefant tank - Gepard tank - Gepard_1 tank - Jagdpanther tank - Jagdpanther_1 tank - KV-1 tank - Kanonenjagdpanzer tank - Königstiger tank - Königstiger_1 tank - Leopard 1 tank - Leopard 1_1 tank - Leopard 2 tank - Leopard 2A6 tank - M1 tank - M26 tank - M41 Walker Bulldog tank - MARS tank - Panther tank - Panther G tank - Panther G_1 tank - Panther_1 tank - Panzer III tank - Panzer III_1 tank - Panzer IV tank - Piranha IIIH tank - Sd.Kfz. 7-Tank - Sherman Tank - T-34 Tank - T-55 Tank - Tiger Tank - Tiger_1 Tank - Tiger_2 Tank - Tiger_3 Snowcat - PB300 Snowcat - PB600 Snowcat - PB600_2 Snowcat - Prinoth Beast Wheel Loader - Liebherr Wheel Loader - Liebherr L586 Crawler - DET250 Crawler - Liebherr PR734 Crawler - T100 Ship - Barge Ship - Steamship Ship - Steamship SS

1x Beier sound module USM-RC-3 WITHOUT DVD. Individually programmable sound, light and movement module. Over 140 finished sound projects. Delivery without DVD/instructions. The sound module was specially developed for RC model making in order to create authentic and speed-dependent sounds, extensive lighting options and additional servo movements. Functional scope: Individually programmable sound, light and movement module Over 140 ready-made sound projects with preset and customizable sounds and noises Use of your own noises, sounds and songs possible Speed-dependent motor and movement sounds Optimal sound thanks to powerful amplifier NF amplifier: 20W 16 outputs for switching LEDs, lamps, relays, etc. Freely adjustable light sequences, e.g. for an all-round light 4 programmable servo outputs Easy updating of the sound teacher and the firmware Easy transfer of all settings via micro SD card The USM-RC-3 sound module is characterized by its high adaptability. All settings are saved on a micro SD card and can therefore be easily changed. All you need is a reader and the "Sound Teacher" software. There are 3 different operating modes: - Digital operation (connection to the receiver) The connection is made using a servo patch cable directly to the receiver and parallel to the speed controller. - Analogue operation (connection directly to the motor) - Mixed operation (combination of digital and analogue operation) These modes are used for speed controllers with special functions, such as cruise control. The speed of the model is measured directly from the motor. The functions can be controlled in various ways. The remote control is assigned using the sound teacher. Sound functions: Driving and engine sounds for the motor (speed-dependent) Additional sounds (horns, hydraulic and compressed air noises, etc.) Random sounds (chain squeaking, animal and ambient noises) Detailed: Starting noises (cold/warm start) Stopping noises Starting noises Stopping noises Standing noises Braking noises Reversing noises Only 1 loudspeaker needs to be connected to the sound module. (4 Ohm/8 Watt is recommended.)Light functions:The sound module offers 16 switching outputs. The individual outputs can be configured in the Sound Teacher. This allows functions such as frequent flashing, flickering or on/off possible. Movement functions: The USM-RC-3 sound module also offers 4 outputs for connecting servos. Technical data: Supply voltage: 5-15V DC Quiescent current: approx. 80mA operating current: depends on volume and switched load Switching inputs: 4 Switching outputs: 16 Proportional inputs: 8 Proportional outputs: 4 Servo outputs Recommended loudspeakers: 4-8 Ohm Volume adjustment: via external potentiometer or remote control Supported sound data: WAV format 8/16 bit mono/stereo, 22/44kHz Sound output: 16 bit, mono, 44kHz Weight: 25g Dimensions: 65x43x17 mm Scope of delivery: Sound module USM-RC-3 Micro SD card (32GB) + adapter (item 9818) 1 piece connection cable for loudspeaker (25cm) (item 9814) 2 pieces servo patch cable (30cm) for connection to a receiver, item 9812 1x ribbon cable (40cm) for connecting the switching outputs (item 9815 1x Fuse holder + fuse 4A (item 9817) There are sounds for the following vehicles: -Car - Ford F-350 (V8)-Car - Landrover Discovery TD-Car - Mercedes 320 CDI_1-Car - Mercedes 320 CDI_2-Car - Mercedes C63 AMG-Car - Mercedes G (diesel)-Car - Mercedes Sprinter-Car - V8-Car - VW Bus-Car - VW Golf GTI-Car - VW Beetle-Excavator - Liebherr-Excavator - Volvo-Airplane - Focke Wulf 190-Airplane - Me 109 G10-Airplane - Wright radial engine helicopter - Huey helicopter - Rescue helicopter dump truck - Volvo A25C crawler loader - Caterpillar locomotive - Climax locomotive - Steam locomotive locomotive - Steam locomotive_1 locomotive - Diesel locomotive - Electric locomotive locomotive - GP38 motorcycle - Harley Davidson tank - Elefant tank - Gepard tank - Gepard_1 tank - Jagdpanther tank - Jagdpanther_1 tank - KV-1 tank - Kanonenjagdpanzer tank - Königstiger tank - Königstiger_1 tank - Leopard 1 tank - Leopard 1_1 tank - Leopard 2 tank - Leopard 2A6 tank - M1 tank - M26 tank - M41 Walker Bulldog tank - MARS tank - Panther tank - Panther G tank - Panther G_1 tank - Panther_1 tank - Panzer III tank - Panzer III_1 tank - Panzer IV tank - Piranha IIIH tank - Sd.Kfz. 7-Tank - Sherman Tank - T-34 Tank - T-55 Tank - Tiger Tank - Tiger_1 Tank - Tiger_2 Tank - Tiger_3 Snowcat - PB300 Snowcat - PB600 Snowcat - PB600_2 Snowcat - Prinoth Beast Wheel Loader - Liebherr Wheel Loader - Liebherr L586 Crawler - DET250 Crawler - Liebherr PR734 Crawler - T100 Ship - Barge Ship - Steamship Ship - Steamship SS

Terminal for switching outputs For easy wiring of BEIER USM-RC-2, 1230 UFR and EXM-2. AKL-10-W terminal with slot 10 series resistors.

1x extension module EXM-2 for the BEIER sound module USM-RC-2. Extension by 6 proportional and 10 switching outputs. At a glance: - 6 additional proportional channels - 10 additional switching outputs - 2 programmable servo outputs - Small motor controller - Easy programming via "Sound Teacher" Description: The extension module EXM-2 is connected to the proportional channel X2/1 of the sound module USM-RC-2 and increases the number of proportional channels by a further 6 channels. With the EXM-2, the sound module can be controlled via a total of 10 proportional channels. There are also 10 additional switching outputs on the EXM-2. Like the 12 switching outputs on the USM-RC-2, these can be assigned any light function and brightness. The EXM-2 contains 2 additional programmable servo outputs, which, like the two servo outputs on the USM-RC-2, can be positioned in up to 4 positions + 1 basic position. As a special feature, the EXM-2 also offers a small motor controller to which a motor for an auxiliary drive (e.g. turret rotation on a tank) can be directly connected. NOT suitable for the SFR-1 sound speed controller!

1x USB stick "Sound-Teacher USM-RC-3" from Beier. With contents of CD USM-RC-3.

1x Micro SD card 32GB with SD adapter.

1x Y-cable with fuse holder For connection to battery and travel controller With Dean's T-connector, fuse 4A. For Beier sound module. Matching connectors and couplings can be found as article 7835.

1x post connector for 10-pin flat cable, black. Female, 10-pin, with cable guide. Post connector 10-pin IDC, black. Connector type: IDC Connector type: female Number of pins: 10 Connector variant: with cable guide Electrical mounting: IDC Mechanical mounting: for flat cable 10-pin Flat cable pitch: 1.27mm Contact coating: gold flash Contact pitch: 2.54mm Connector output system: 2x5

Output test board LED-8. For easy testing/checking of the outputs of various Beier modules. LED-8. A practical tool for checking the switching outputs of the following BEIER modules: Sound module USM-RC-3 Sound speed controller SFR-1 Double sound speed controller SFR-1-D Sound speed controller for the tanks from Torro/Taigen and Heng Long SFR-1-HL Speed ​​controller UFR-1230 Double speed controller UFR-1230-D Light modules LM-BT-16-4 and LM-IR-16-4 Attention: Not suitable for the sound module USM-RC-2!With the LED output test board, the light settings of up to eight outputs can be easily displayed and checked.The board is particularly helpful in the planning and testing phase. All light functions, various settings, output sequences and automatic or combined lights can be tested before the actual wiring.If there are problems with the lighting, you can quickly find out whether these are due to the sound teacher settings or the wiring or hardware.The output test board is connected directly to the BEIER modules. The LEDs of outputs 1 and 2 light up red, outputs 3 and 4 green, outputs 5 and 6 yellow and outputs 7 and 8 blue.The length of the ribbon cable is approx. 20 cm.

1x connection terminal with constant current outputs AKL-10-K, allows the connection of LEDs without a series resistor. No soldering work thanks to spring clamps. Suitable for BEIER USM-RC-2 and EXM-2. The AKL-10-K enables easy connection of LEDs to the sound module USM-RC-2 and to the extension module EXM-2 without additional soldering work. The constant current source has 10 separate and current-limited outputs for directly controlling LEDs. Each constant current source delivers a current of approx. 20 mA, regardless of the supply voltage, making it easy to connect LEDs without additional series resistors.The constant current source can be plugged directly into the sound and expansion module using the ribbon cable provided.The battery voltage is connected to the black screw terminal.The lighting can now be wired up easily without additional soldering using the spring-loaded terminals of outputs 1 - 10.Technical data:Supply voltage (Ub):Double screw terminals for the supply voltageCurrent consumption: Quiescent current: approx. 10 mA, + 20 mA per outputOutputs:10 piecesPlus (anode) and minus (cathode) of the LEDs must be connectedConnection cable: 10-pin ribbon cable, 20 cm long, can be plugged directly into the sound moduleDimensions:53 x 52 x 20 mmWeight:35 g

1x Y-cable with fuse holder For connection to battery and travel controller With Dean's T-connector, fuse 4A. For Beier sound module.

1x Micro-SD card reader.

1x Beier mini sound module MSM-1. Fully preconfigured sound and light module for RC models and therefore a simple plug & play sound module that is very suitable for beginners. The MSM-1 at a glanceControl of sound + light in one unitControl Suitable for many types of models 14 different model types with all sound and light settings Plug & Play - ideal for beginners No computer required for model selection or other settings Supply voltage between 5 - 14 V DC 6 proportional inputs for controlling sound and light functions with a standard remote control Model types 3 x trucks 2 x cars 1 x emergency vehicle 1 x tractor 2 x construction vehicles 2 x tanks 3 x ships Sound Driving sounds for 14 different model types Various additional sounds depending on the model type: e.g. Horn, fanfare, ship's horn, cannon shot, machine gun fire, radio message, hydraulic noise, animal noises, siren, announcements. Optimal sound thanks to integrated, powerful amplifier. Light 8 outputs for connecting LEDs, lamps, relays, etc. Different outputs depending on model type: e.g. Lights, indicators, brake lights, reversing lights, cannon flash, machine gun flash, warning lights, speed cameras Connection for an IR light module to forward the light and servo signals to semi-trailers and trailers Accessories (not included) Loudspeaker with housing Connection terminals for easy connection of LEDs Battery Y-cable for parallel connection of sound module and speed controller to the battery Volume potentiometer for manual volume adjustment Description The MSM-1 is a completely pre-configured sound and light module for RC models and is therefore a "simple" plug & play sound module that is very suitable for beginners. 14 different model types with all sound and light settings are permanently stored in the memory. There are: 3 trucks 2 cars 1 emergency vehicle 1 tractor 2 construction vehicles 2 tanks 3 ships The desired model can be easily selected using a standard RC transmitter. No software, computer or other programming hardware is required to select the model. The MSM-1 has 6 proportional inputs that can evaluate 6 channels of an RC receiver. The 1. Channel is always the gas channel, the 2nd In most models the channel is the steering. Additional sounds and lights can be controlled via the remaining 4 channels. The sound and light functions vary depending on the model type. To realize various lighting effects, the MSM-1 has 8 switching outputs to which LEDs, lamps and relays can be connected. Lighting functions such as low beam, reversing light, brake light, indicators, hazard lights, etc. can be controlled easily and in accordance with sound and movement. Each of the 14 pre-configured models has its own driving sound (engine sound) and additional sounds that match the model type, which can be triggered via the RC transmitter. Attention: The sounds and settings of the 14 models cannot be changed on the MSM-1! If you want to change sounds or other settings yourself or can be adapted, we recommend the sound module USM-RC-3.The MSM-1 can also be seen as a "simple" plug & play sound module and it is very suitable for beginners.Technical data Supply voltage (Ub):5 to 14 V DC Current consumption: Quiescent current: approx. 60 mAOperation: depends on volume and load Proportional inputs: 6 PWM (1,000 - 2,000 ms) Switching outputs: 8 minus switching - open collector: max. 1,5 A per output, total current of all outputs must not exceed 3,0 A NF amplifier: 20 W Recommended loudspeakers: 4 - 8 Ohm Volume adjustment: Through external potentiometer (100 kOhm) and/or remote control Memory for the sound data: Internal flash 64 MB Sound output: 16 bit, mono, 22 kHz Model types: 14 models 3 x truck 2 x car 1 x emergency vehicle 1 x tractor 2 x construction vehicle 2 x tank 3 x ship Available sounds: Driving sounds (starting sound, stopping sound, starting sound, stopping sound, idle sound, braking sound, reversing alarm, squeaking when cornering, indicator sound) Various additional sounds depending on the model (horn, compressed air fan, ship's horn, depth sounder, turret rotation, machine gun, cannon shot, radio message, animal sounds, hydraulic sound, siren, announcements) Other interfaces: Interface for data cable K-USB-2 (currently still without Function!) or IR transmitter diode for light modules LM-IR-8-1 and LM-IR-16-4 Protection functions: Current monitoring of the switching outputs Permissible ambient temperature: 0 to 60°C Permissible relative humidity: Max.

1x connection terminal with relay outputs With the AKL-10-R, consumers with a high current consumption (up to 10A) can be connected to the sound module or EXM-2 without additional soldering work. 6V
