Trailer electronics AMO, with infrared receiver, 7,2V-12V

Trailer electronics AMO with infrared receiver, 7,2V-12V, controls 6 outputs, driving light, brake light, indicator light and tail light plus a special function, 700mA per output - short-circuit proof.Trailer electronics AMO with infrared receiver, 7,2V-12V, controls 6 outputs, driving light, brake light, indicator light and tail light plus a special function, 700mA per output - short-circuit proof. One servo output for switching functions (2 in conjunction with K15/30/60) two servo outputs proportional (in conjunction with AIR4 and AIR7/AIRU), integrated BEC for servos 5V/1A, suitable for all Servonaut systems and with the AIR7/AIRU also for most systems from other manufacturers. Dimensions approx. 70x30x12mm.Instructions are available for downloading this article. Downloading is free! (except your online costs).Trailer electronics with IR receiverSuitable for all Servonaut systems and with AIRU module also for most systems from other manufacturersControls 5 to 6 outputs e.g. driving light, brake light, indicator light and tail light and a special functionAlso suitable for road train applications.All outputs 700 mA short-circuit proofOne servo output for switching functions (two in conjunction with K15/30/40/60), two servo outputs proportional (in conjunction with AIR4 and AIR4/AIRU)Integrated BEC for servo 5V/1ASupply voltage: 7,2 to 12 VCurrent consumption: 20 mA (quiescent)Switching function: 5-6Switching voltage: same as supply voltageServo outputs: 3-4Protection function: short circuit, overloadDimensions: approx. 70 x 30 x 12 mmScope of delivery: Module with IR receiver and 3-stage switchIR transmitter AIR4, AIRU or LA10 are NOT included in delivery. Please order separately.

Available immediately, delivery time: 1-4 days

Product number: 5086

€ 95,20 *

Subscriptions

Infrared Kingpin matching Tamiya. With retaining clip

Infrared Kingpin matching Tamiya. Diode retaining clip for AMO-IR reception. The diode is simply clicks on. Delivery without IR diode. KBT.

Available immediately, delivery time: 1-4 days

Product number: 5089

€ 10,29 *

Subscriptions

Infrared extension module SM-IR-16 2

1x infrared extension module SM-IR-16-2 for the BEIER sound module USM-RC-2, for controlling lights on the trailer. Also compatible with SFR-1. DISCONTINUED ITEM! This module is required in the trailer! Description: With this additional module, the lighting on a truck trailer can be controlled with numerous light effects as well as movements. The (light) signals are transmitted wirelessly via an infrared diode. A connection cable between the truck and trailer is therefore not necessary. However, a separate battery must be installed in the trailer for the supply voltage. - Light functions: The SM-IR-16-2 has 16 switching outputs for lamps and LEDs, for example. 12 of the 16 outputs are a copy of the 12 switching outputs of the USM-RC-2. Various functions are available for the remaining 4 outputs, such as a 1- and 4-channel rotating light, a 4- and 8-channel running light and various flashers. -The speed of the rotating light, running light and flasher can be adjusted using a trimmer. -Motion functions: In addition to the 16 switching outputs, there are also 2 servo outputs with which various movements can be controlled. Possible applications for this include the movement of trailer supports, locking and unlocking a saddle support, tipping a tipper and many other movements.Technical data:-Voltage: 5-14V DC-Current consumption:25mA Quiescent current switching outputs: 16-Servo outputs: 2-Dimensions: 67x55x17 mm-Weight: 35gThis module comes with both the IR transmitting and receiving diodes!These infrared diodes are also available individually:IR transmitting diode: Article 9845IR receiving diode: Article 9844Interference suppression is particularly important if trailer supports are also controlled! A ferrite ring should be used on the receiving diode as well as on the motor cable of the supports. Ferrite ring 11770 is recommended.-

Available immediately, delivery time: 1-4 days

Product number: 9810

€ 65,85 * € 79,95 * (17.64% saved)

Subscriptions

Infrared Kingpin matching Carson. With retaining clip

Infrared kingpin suitable for Carson. With retaining clip for AMO IR receiver diode. The diode is simply clicked in. Delivery without IR diode. KBC. For Carson trailers! For standard modular fifth wheel plate. Adjustments are necessary for Goldhofer semi-trailers and dump trucks. Does NOT fit flatbed trailers

Available immediately, delivery time: 1-4 days

Product number: 5361

€ 10,29 *

Subscriptions

1x Light Module Truck-Profi2.Control for turn signals and 3

1x light module Truck-Profi2. Control for indicators and 3 light switching functions. Steering servo signal is looped through. Outputs 2-18V, 2x 2A, 1x 3A load current. The Truck-Profi II lighting module is perfect for anyone who wants to light up their vehicle in a simple way without much effort. The Truck-Profi II is connected parallel to the steering servo and to a free channel and takes over the indicator control of your vehicle. You can use the second channel to switch on any three additional functions such as (horn, fog lights, ...) and the hazard lights. TIP: Together with the AS12-35RW TRUCK EVO III you also have a fully automatic brake and reversing light! -Features: --Flashes automatically when steering -Programmable: Adjustable at what steering angle the indicator starts -5 functions can be switched via switching channel (one is the hazard light)

Available immediately, delivery time: 1-4 days

Product number: 9855

€ 25,94 *

Subscriptions

1x mini lighting system ML4 V2 with 4 functions on 4

1x mini lighting system ML4 V2 with 4 functions on 4 short-circuit-proof switching outputs 700mA/24V for indicators, breakdown indicators, parking lights and driving lights. As an extension for E20, T20, F30T, M212T, M220, also universally usable. The indicator can be switched off either manually or automatically after 5 seconds. Supply comes from the receiver with 4,8V to 6V. 1 free receiver channel required. Dimensions approx. 43x20x13mm. NEW in version 2.0: Can also be operated via multiswitch - XENON mode with xenon effect for low beam CLASSIC mode with incandescent lamp effects With battery plug, suitable for BECB - Instructions are available for downloading for this article. Downloading is free! (except for your online costs).

Available immediately, delivery time: 1-4 days

Product number: 9501

€ 43,99 *

Subscriptions

Infrared transmitting diode

1x Infrared Transmitting diode for BEIER system

Available immediately, delivery time: 1-4 days

Product number: 9845

€ 3,55 *

Subscriptions

Lighting system LA10 of Servonaut with 10 switching outputs

Lighting system LA10 from Servonaut with 10 switching outputs and IR transmitter. Outputs: Can be used with light bulbs or LEDs WITH series resistors. - Lighting system with 10 switching outputs and IR transmitter - Classic or Xenon light (jumper) - Parking, low beam, flasher and high beam - Indicators L/R and breakdown indicators - Front fog lights / cornering light and rear fog light - 2 extra outputs - IR transmitter for AMO trailer electronics already installed - 2 servo inputs for direct transmission to the trailer - Graupner Nautic and Robbe Multiswitch compatible - Adjustable via Prog-Card or Display-Card: 1. Cornering light 2. American tail light 3. Brightness of the outputs 4. Xenon and incandescent lamp intensity - Outputs 700mA, overload-proof - For battery voltages 7,2 to 12V - Dimensions approx. 52 x 32 x 15 mm - IR diode not included Matching transmitter diode: Article 10825 (with 3-pin socket). The CARD (Article 9096)!

Available immediately, delivery time: 1-4 days

Product number: 10304

€ 125,00 *

Subscriptions

1 transmitting diode (infrared). Spare part for AIRU (new), AIR4 (new

1 transmitting diode (infrared). Spare part for AIRU (new), AIR4 (new), LA10.

Available immediately, delivery time: 1-4 days

Product number: 10825

€ 5,34 *

Subscriptions

Infrared transmitter for wireless data transfer to AIR4

Infrared transmitter AIR4 for wireless data transmission to an AMO module in the trailer/semi-trailer. Is connected with a plug to Servonaut K15T/K30T/K60T or M12T/M20T/M20+/M24. Additionally with 1 or 2 plugs to free channels of the receiver. A total of 3 servos can be used in the trailer on M systems and 4 on K systems. Dimensions approx. 55x20x12mm. Incl. infrared diode. Instructions for this article are available for download. Downloading is free! (except for your online costs). An IR transmitter diode is included in the delivery. The IR transmitter diodes 6667 (old) and 10825 (new) are available as spare parts.

Available immediately, delivery time: 1-4 days

Product number: 5088

€ 52,49 *

Subscriptions

Infrared light module LM-IR-16-4 for the BEIER modules

1x infrared light module LM-IR-16-4 for the BEIER modules USM-RC-2 and -RC-3, SFR-1 for controlling lights on the trailer. Also compatible with UFR-1230. This module is required in the trailer!Description:With this additional module, the lighting on a truck trailer can be controlled with numerous light effects as well as movements (servos and motors).The (light) signals are transmitted wirelessly via an infrared diode. A connection cable between the truck and trailer is therefore not necessary. However, a separate battery must be installed in the trailer for the supply voltage.This module is suitable for expanding the Beier modules SFR-1, USM-RC-2, USM-RC-3 and UFR-1230.Light functions:The LM-IR-16-4 has 16 switching outputs for e.g. lamps and LEDs. 12 of the 16 outputs are a copy of the 12 switching outputs of the USM-RC-2. Various functions are available for the remaining 4 outputs, such as a 1- and 4-channel rotating light, a 4- and 8-channel running light and various flashers. -Motor control:The motor output on this light module can be used to directly control e.g. support motors, ramps or tilt functions. A switch for manual control of the motor output can also be optionally connected to the module.Movement functions:In addition to the 16 switching outputs, there are also 4 servo outputs with which various movements can be controlled. Possible applications for this include the movement of trailer supports, locking and unlocking a saddle support, tilting a tipper and many other movements.In order to control additional motors, speed controllers can also be connected to these servo outputs.Another IR transmitter diode can be connected to the light module, which forwards the received IR signal 1:1 to another light module.Technical data:-Voltage: 6-12V DC-Current consumption:25mA Quiescent current switching outputs: 16-Servo outputs: 4-1 Motor output: max. 2A-Dimensions: 58x44x17 mm-Weight: 26gMany settings can be changed using the LM-Teacher software.Both the IR transmitter and the IR receiver diode are included in the scope of delivery of this module!These infrared diodes are also available individually:IR transmitter diode: Article 9845IR receiver diode: Article 9844Interference suppression is particularly important if trailer supports are also controlled! In this case, a ferrite ring should be used on the receiving diode as well as on the motor cable of the supports. Ferrite ring 11770 is recommended.

Available immediately, delivery time: 1-4 days

Product number: 12261

€ 89,95 *

Subscriptions

1x mini MultiSwitch MM4 with 4 functions on 4

1x mini multiswitch MM4 with 4 functions on 4 short-circuit-proof switching outputs 700mA/24V and 2 additional servo outputs. Universally usable. Version 2! Supports e.g. combined headlight flasher with high beam and windshield wiper via a servo. Supply from the receiver with 4,8 or 6V. 1 free receiver channel required. Operation on the transmitter either via joystick or a button/switch with 3 positions. Dimensions approx. 43x20x13mm. NEW in version 2: Control also possible via multiswitch In multiswitch mode, a servo output can be controlled directly, e.g. for a 3-speed manual gearbox Instructions are available for download for this article. Downloading is free! (except for your online costs).

Available immediately, delivery time: 1-4 days

Product number: 9502

€ 43,99 *

Subscriptions

Infrared transmitter for wireless data transfer to Airu

Infrared transmitter AIRU for wireless data transmission to an AMO module in the trailer/semi-trailer. Universally usable for lighting systems and multi-switch systems with 6 outputs that switch to ground. Also suitable for Servonaut S10/S20/S22/T20/E20/E22/M212/M220, e.g. in conjunction with the mini lighting system ML4. 2 proportional channels are also transmitted. Dimensions approx. 40x32x15mm. Incl. infrared transmitter diode. Also suitable for multi-switch systems from other suppliers (also for MFC-01, MFC-02, MFC-03). Instructions for this article are available for download. Downloading is free! (except your online costs).An IR transmitter diode is included in the delivery.The IR transmitter diode is available as a spare part under article 6667 (old) and 10825 (new).Is not required if LA10 (article 10304) is present!

Available immediately, delivery time: 1-4 days

Product number: 5087

€ 69,00 *

Subscriptions

Bluetooth light module LM-BT-16-4 for the BEIER modules

1x Bluetooth light module LM-BT-16-4 for the BEIER modules USM-RC-3, SFR-1 for controlling lights on the semi-trailer. This module is required in the semi-trailer!Description:With this additional module, both the lighting, with numerous light effects, and movements (servos and motors) on a truck trailer can be controlled.The (light) signals are transmitted wirelessly via a Bluetooth connection. A connection cable between the truck and the trailer is therefore not necessary. However, a separate battery must be installed in the trailer for the supply voltage.This module is for expanding the Beier modules SFR-1 and USM-RC-2. Light functions:The LM-BT-16-4 has 16 switching outputs for lamps and LEDs, for example. 12 of the 16 outputs are a copy of the 12 switching outputs of the USM-RC-2/SFR-1. Various functions are available for the remaining 4 outputs, such as a 1- and 4-channel rotating light, a 4- and 8-channel running light and various flashers. -Motor control:The motor output on this light module can be used to directly control e.g. support motors, ramps or tilt functions. A switch for manual control of the motor output can also be optionally connected to the module.Movement functions:In addition to the 16 switching outputs, there are also 4 servo outputs with which various movements can be controlled. Possible applications for this include the movement of trailer supports, locking and unlocking a saddle support, tilting a tipper and many other movements. To control additional motors, speed controllers can also be connected to these servo outputs. Another Bluetooth transmitter can be connected to the light module, which forwards the received signal 1:1 to another light module. Technical specifications: - Voltage: 6-12V DC - Current consumption: 25mA Quiescent current switching outputs: 16 - Servo outputs: 4-1 Motor output: max. 2A - Dimensions: 58x44x17 mm - Weight: 26g Many settings can be changed using the LM-Teacher software. This module comes with 1x the BT transmitter. This Bluetooth transmitter is also available individually: Bluetooth transmitter: Article 12263 Interference suppression is particularly important if trailer supports are also controlled! A ferrite ring should be used on the receiving diode as well as on the motor cable of the supports. The ferrite ring 11770 is recommended.

Available immediately, delivery time: 1-4 days

Product number: 12262

€ 104,99 * € 109,95 * (4.51% saved)

Subscriptions

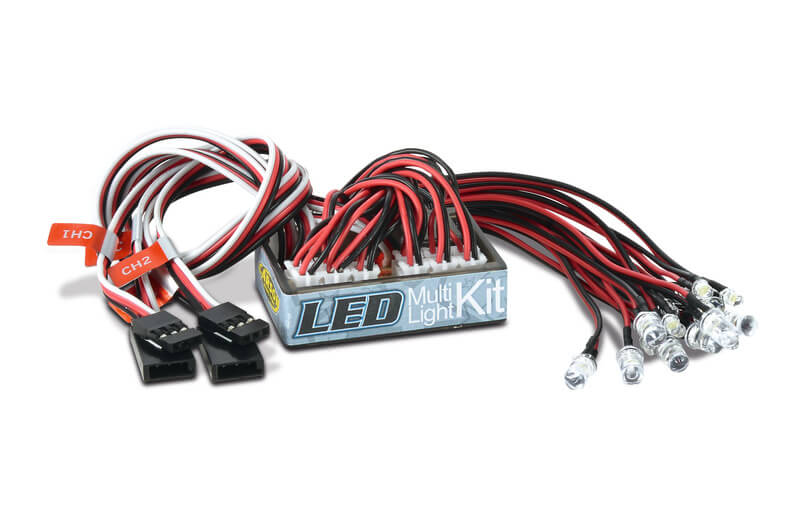

1x LED light unit truck. Carson. Ready for connection

1x LED light unit truck. Carson. Ready-to-connect light set for front/rear indicators, brake light, tail light, driving light. Contents:LED control module with servo counter cable for steering and speed controller2 servo connection cables for light control to the receiverCable sets:-Indicator with 4x 3mm LEDs-Headlight with 4x 5mm LEDs-Position lights with 5x 3mm LEDs-Tail light/brake light with 4x 5mm LEDsInstructions, cable ties, self-adhesive foamTechnical data:Supply voltage: 4-6V DCMax. power consumption: 210mAConnection system: FutabaDimensions: 42x32x13mmWeight: 44gr.

Available immediately, delivery time: 1-4 days

Product number: 8940

€ 22,59 * € 24,99 * (9.6% saved)

Subscriptions

1 transmitting diode (infrared). Spare parts for AIR, Airu, AIR4,

1 transmission diode (infrared). Spare part for AIR, AIRU, AIR4, AIR7. This transmitter diode is for the older versions! The transmitter diode with article number 4 is available for the current module versions of AIR10, AIRU and LA10825.

Available immediately, delivery time: 1-4 days

Product number: 6667

€ 5,19 *

Subscriptions

1 IR receiver. Infrared receiver for AMO

1 IR receiver. Infrared receiver for AMO.

Available immediately, delivery time: 1-4 days

Product number: 6668

€ 8,45 *

Subscriptions

Infrared receiver diode

1x infrared receiver diode.

Available immediately, delivery time: 1-4 days

Product number: 9844

€ 4,94 *

Subscriptions

Assortment of 28 LEDs, stranded and resistors

Assortment of 28 LEDs, wire and series resistors including instructions. 6x ultra-bright white 3mm LEDs, 8x ultra-bright 3mm in red and 6x ultra-bright 3mm yellow/orange. 2x 3mm red. 6x rectangular LEDs in yellow for position lights. 4m 2-pin cable, instructions. Series resistors with 150, 220, 330 Ohm/1 Watt and 470, 560 Ohm/0,25 Watt, 10 pieces each. Instructions are available for downloading for this article. Downloading is free! (except for your online costs).

Available immediately, delivery time: 1-4 days

Product number: 5362

€ 31,00 *

Subscriptions

Infrared Kingpin matching Wedico. With retaining clip

Infrared Kingpin matching Wedico. Diode retaining clip for AMO-IR reception. The diode is simply clicks on. Delivery without IR diode. KBW.

Available immediately, delivery time: 1-4 days

Product number: 5090

€ 9,50 *

Subscriptions

Emergency vehicle speed camera including 2 blue LEDs

Emergency vehicle flasher including 2 blue LEDs. Ready-made module. Voltage 8-16V. Dimensions: approx. 48x16mm. Height approx. 16mm. Type D. As with the original - multiple short flashing sequences with a short interruption signal: An emergency vehicle (modern) is on the road. Fully assembled SMD board.

Available immediately, delivery time: 1-4 days

Product number: 6394

€ 24,50 *

Subscriptions

On / off board for model trucks. 7,2V version. With V

On/off circuit board for model trucks. 7,2V version. With reverse polarity protection. Relay can handle up to 8A. Screw terminals for all connections. Input for charging socket. Dimensions: approx. 40x40mm.

Available immediately, delivery time: 1-4 days

Product number: 11276

€ 19,00 *

Subscriptions

UL4 micro-light system of Servonaut

UL4 micro lighting system from Servonaut. - Micro lighting system with four constant current outputs of 20mA each - especially for small models - for LEDs, no series resistors required! - Indicators, breakdown indicators, parking lights and dipped beam - Indicators with automatic shutdown after 5 seconds - one channel required, operation identical to ML4 - short-term short-circuit proof at 5V to 12V - with realistic light bulb effect - dimensions approx. 35 x 17 x 8 mm

Available immediately, delivery time: 1-4 days

Product number: 10310

€ 28,80 *

Subscriptions

King pin IR for Tamiya KB-IR-T with retaining clip for

1 king pin IR for Tamiya KB-IR-T with retaining clip for IR receiver BEIER.

Available immediately, delivery time: 1-4 days

Product number: 12267

€ 9,95 *

Subscriptions

Flash module. Suitable for connecting LEDs, lamps, etc

Flash module. Suitable for connecting LEDs, lamps, etc. Max. current 8A when flashing, 5A when continuously operating. Flash module is suitable for connecting LEDs, lamps, etc. with a current requirement of max. 8A/channel when flashing, 5A/channel when continuously operating. (Note the series resistor for LEDs!) The output flashes, the flash speed can be regulated depending on the proportional channel and can be switched on or off. This module is suitable for connection to a remote control receiver. Connection of the switching module to an output of the receiver. The switching voltage is connected to input 3. Consumers are connected to the connector strip and supplied by the external voltage. Technical data: Operating voltage 4,8-9 V Switching voltage max. 30V Switching current max. 8ASwitch function 1 Dimensions approx. 12x40 mm Weight approx. 3,5g

Available immediately, delivery time: 1-4 days

Product number: 10895

€ 23,09 * € 23,90 * (3.39% saved)

Subscriptions

On / off board for model trucks. 12V version. With Ve

On/off circuit board for model trucks. 12V version. With reverse polarity protection. Relays can handle up to 8A. Screw terminals for all connections. Input for charging socket. Dimensions: approx. 40x40mm. For safely and easily switching on the power supply of a model truck. To switch the truck on or off, all you need is a suitable switch (note the total current consumption of your truck). The current that the speed controller consumes also flows through this switch. A switch must therefore be used that can also switch this power. You should also install a charging socket and a fuse. You have it easier with these switch boards. These boards naturally have a few special features: 1. Reverse polarity protection Now you can (finally) connect your battery incorrectly!!! Swapping the + and - connections has no consequences. The electrical system and the speed controller are simply not switched on. It only works again once the + and - connections are correctly made. 2. Relay The entire power supply is switched on via a relay. (Load capacity 8A)3. SwitchThere is a screw terminal on the circuit boards for an externally mounted switch. This switch can be a miniature version. It only has to switch the control current for the relay (approx. 100 mA). We can supply a suitable switch.4. Charging socket connectionOur BU.02 or your own version can be used as the charging socket.The circuit boards also contain a fuse for the electrical system.All connections are made via screw terminals.

Available immediately, delivery time: 1-4 days

Product number: 11275

€ 19,00 *

Subscriptions

1x Blink Electronics BE8 Servonaut for round lights and

1x BE8 Servonaut flashing electronics for rotating lights and running lights, 8 different adjustable effects. **CLEARANCE item! 1x BE8 Servonaut flashing electronics for rotating lights and running lights, 8 different adjustable effects. **CLEARANCE item! Instructions are available for download for this item. Downloading is free! (except for your online costs).

Available immediately, delivery time: 1-4 days

Product number: 4301

€ 41,70 *

Subscriptions

Magnetic sensor LM-MS with magnet BEIER

1 LM-MS magnetic sensor with BEIER magnet.

Available immediately, delivery time: 1-4 days

Product number: 12269

€ 5,25 *

Subscriptions

UM4 micro-light system of Servonaut

UM4 micro lighting system from Servonaut. - Micro lighting system with four constant current outputs of 20mA each - especially for small models - for LEDs, no series resistors required! - two outputs for headlight flasher/high beam left/right - two universal outputs - one channel required, operation identical to MM4 - short-term short-circuit proof at 5V to 12V - dimensions approx. 35 x 17 x 8 mm>

Available immediately, delivery time: 1-4 days

Product number: 10312

€ 28,80 *

Subscriptions

Side indicator module, Servonaut. The module leaves the side m

Side indicator module, Servonaut. The module allows the side marker lights on trailers, tractors and semi-trailers to flash as additional indicators. Controls left and right side markers Can be retrofitted to Servonaut lighting systems and trailer electronics (with the exception of the UL4) Two constant current outputs of 10mA each For two to four LEDs per side, no series resistors required! Robust screw terminals, easy connection Short-term short-circuit proof at 6V to 12V Dimensions approx. 35 x 20 x 14mm A side indicator module is supplied. Other components that can be seen in the product photos are only for illustrative purposes.

Available immediately, delivery time: 1-4 days

Product number: 12373

€ 21,29 *

Subscriptions

UAL micro-cornering of Servonaut

UAL micro cornering light from Servonaut. - Fog and cornering light with four constant current outputs of 20mA each - universal for LEDs with and without series resistors or LED boards - with realistic light bulb dimming effect - two outputs for cornering light/fog lamps left/right - two outputs for additional fog lamps front/rear - one channel required for fog lamps front/rear - cornering light is controlled by the steering channel or an extra channel - a Y-cable must be ordered separately if necessary - short-term short-circuit proof at 5V to 12V - dimensions approx. 35 x 17 x 8 mm

Available immediately, delivery time: 1-4 days

Product number: 10311

€ 29,39 *

Subscriptions

Switch for manual motor operation LM-SW on the Beier

1 switch for manual motor operation LM-SW on the Beier light module. For connection to the pin header X5 / 6 of a Beier light module LM-IR / BT-16-4.

Available immediately, delivery time: 1-4 days

Product number: 12270

€ 5,95 *

Subscriptions

Blink module. Suitable for connecting LEDs, lamps, etc

Flashing module. Suitable for connecting LEDs, lamps, etc. Max. current 8A when flashing, 5A when continuously operating. Flashing module is suitable for connecting LEDs, lamps, etc. with a current requirement of max. 8A/channel when flashing, 5A/channel when continuously operating. (Note the series resistor for LEDs!) The output flashes, the flashing speed can be regulated depending on the proportional channel and can be switched on or off. This module is suitable for connection to a remote control receiver. Connection of the switching module to an output of the receiver. The switching voltage is connected to input 3. Consumers are connected to the connector strip and supplied by the external voltage. Technical data: Operating voltage 4,8-9 V Switching voltage max. 30V Switching current max. 8ASwitch function 1 Dimensions approx. 12x40 mm Weight approx. 3,5g

Available immediately, delivery time: 1-4 days

Product number: 10894

€ 22,49 * € 23,90 * (5.9% saved)

Subscriptions

King pin BT for Tamiya KB-BR-T with retaining clip for

1 king pin BT for Tamiya KB-BR-T with retaining clip for the BEIER magnetic sensor.

Available immediately, delivery time: 1-4 days

Product number: 12268

€ 9,95 *

Subscriptions

Programmable light effect module BE8PC for round lights

Programmable light effect module BE8PC for rotating lights and running lights and other light effects. 4 freely definable sequences switchable via RC channel. Programming software is included on CD. Cable for programming via serial PC interface included. Instructions are available for downloading this article. Downloading is free! (except for your online costs).

Available immediately, delivery time: 1-4 days

Product number: 5965

€ 57,80 *

Subscriptions

1x electrical system incl. MF-A for Trailers (797)

1x electrical system MF-A for semi-trailers and trailers (797). Can be combined with items 4817, 4819 and 11543. Infrared receiver for implementing the lighting functions on the semi-trailer or trailer. The signals are transmitted wirelessly via infrared information from the towing vehicle. A 12V battery must be present to operate the system in the trailer/semi-trailer.

Ready to ship in 5 days, delivery time 1-4 days

Product number: 4820

€ 194,86 * € 199,00 * (2.08% saved)

Subscriptions

Road-Train adapter IR RTA

1x Road-Train-Adapter IR-RTA With this module, trains with multiple trailers can be realized. With the Road-Train-Adapter IR-RTA it is possible to forward the IR signal, which is sent from the sound module USM-RC-2 to the semi-trailer/trailer, to another trailer. In this way, with several trailers. A road train adapter is required for each IR signal to be forwarded to the next trailer. Each trailer requires an SM-IR-16-2 light module and a battery.The light and servo functions are the same on each trailer! It is therefore not possible, for example, to control a servo output differently on the 1st and 2nd trailer.Technical data:Supply voltage (Ub):5V direct current (from SM-IR-16-2)Current consumption: approx. 10 mAInputs:Outputs:1 IR transmitter diode (cable length approx. 100 cm)Permissible ambient temperature: 0 - 60°CDimensions:Weight:

Available immediately, delivery time: 1-4 days

Product number: 9846

€ 29,95 *

Subscriptions

Lighting system LA6 from Servonaut with 6 switching outputs and IR

Lighting system LA6 from Servonaut with 6 switching outputs and IR transmitter. Outputs: Can be used with light bulbs or LEDs WITH series resistors. - small lighting system with 6 switching outputs and IR transmitter - suitable for Servonaut speed controllers S10, S20, S22, G22, G24, E22 - also for the dual speed controllers M224 and M211 - simple connection, brake light and reversing light on screw terminals - Classic or Xenon light (jumper) - parking light, low beam, flasher and high beam - indicators L/R and breakdown indicators - another output e.g. for fog lights - IR transmitter for AMO trailer electronics already installed - 1 or 2 servo inputs for direct transmission to the trailer (depending on the control) - Graupner Nautic and Robbe Multiswitch compatible - compatible with MulitBus - SBus compatible with teach-in without CARD or computer - adjustable via Prog-Card or Display-Card: 1. Cornering light 2. American tail light 3. Brightness of the outputs 4. Xenon and light bulb intensity - outputs 700mA, overload-proof, professional terminals - for battery voltages 7,2 to 12V - dimensions approx. 48 x 25 x 13 mm - IR diode not included in delivery Matching transmitter diode: article 10825 (with 3-pin socket). The CARD (article 9096) is suitable for programming!

Available immediately, delivery time: 1-4 days

Product number: 13233

€ 89,25 *

Subscriptions

Bluetooth transmitter module Beier LM-BT-S. For use with

1 Beier LM-BT-S Bluetooth transmitter module. For use with the light module LM-BT-16-4.

Available immediately, delivery time: 1-4 days

Product number: 12264

€ 21,96 *

Subscriptions

Emergency vehicle speed camera incl. 2 blue LEDs. prefab

Emergency vehicle speed camera including 2 blue LEDs. Finished module. Voltage 8-16V. Dimensions: approx. 50x16mm. Type A.

Available immediately, delivery time: 1-4 days

Product number: 10814

€ 22,96 *

Subscriptions

USB adapter USB2.0 to serial RS232. Suitable for SM +

USB adapter USB2.0 to serial RS232. Suitable for use with BE8-PC and SM+.

Available immediately, delivery time: 1-4 days

Product number: 11045

€ 8,00 *

Subscriptions

Servonaut Multibus Decoder MD12. Multiswitch decoder

Multibus Decoder MD12. Multiswitch decoder with automatic recognition of the transmitter encoder module. Universal multiswitch prop decoder with 10 switching and 5 servo outputs compatible with Graupner Nautic, Robbe Multiswitch and Servonaut MultiBus. Format is automatically recognized! Optional: 10 switching & 3 prop functions, 8 switching & 4 prop functions or 6 switching & 5 prop functions 10 switching outputs each 700mA short-circuit proof, optionally with memory function - switches the drive battery voltage, suitable for light bulbs and LEDs with series resistors for battery voltages 4,8 to 18 V Dimensions approx. 55x33x15mm New in the MD12: Switch-on behavior and servo operation have been improved Note: the servo outputs of the MD12 are also supplied from the receiver. For powerful or many servos, we recommend an additional BEC (e.g. Servonaut BEC4)

Available immediately, delivery time: 1-4 days

Product number: 10848

€ 106,20 *

Subscriptions

Rear lighting board. Suitable for MVT-07 (Gewu) Arti

A ribbon cable with a post connector (10-pin) is also required. For example item 11274

Available immediately, delivery time: 1-4 days

Product number: 11273

€ 10,00 *

Subscriptions

Ribbon cable 10-pin, gray. With 2 post connectors. (80

Ribbon cable 10-pin, gray. With 2 post connectors. (80cm). Length can be selected in 10 cm steps.

Available immediately, delivery time: 1-4 days

Product number: 11274

€ 4,31 *

Subscriptions

Electrical system incl. MF f.Zugmaschinen (796)

Electrical system incl. MF f.Zugmaschinen (796).

Ready to ship in 5 days, delivery time 1-4 days

Product number: 4819

€ 293,39 * € 299,00 * (1.88% saved)

Subscriptions

Electr. System for Kastenecken- lighting (786)

Electric system for box corner lighting (786). (Wedico) 10 incandescent lamps, 2 distributor terminals, 12 red lenses, 12 orange lenses.

Ready to ship in 5 days, delivery time 1-4 days

Product number: 4815

€ 39,95 * € 39,99 * (0.1% saved)

Subscriptions

Electrical system MFL for tractors with speed controller, 12-

MFL electrical system for tractors with speed controller, 12-channel lighting system, infrared transmitter. Operating voltage 7,2-12V. The MFL is the complete 12-channel lighting system with speed controller and infrared transmitter for your tractor or truck! The combination of integrated speed controller and lighting system in one module and additional BUS system makes the new MFL extremely space-saving! You install the small central circuit board with speed controller in the vehicle and place the small lighting boards at the front and rear. The three boards are only connected by a narrow 3-pin cable. No more space is required. The supplied light bulbs are screwed to the corresponding lighting board at the front or rear using the shortest route. The boards are also LED-capable.On the rear lighting board there is a micro piezo buzzer for the reversing beeper and an infrared transmitter diode for wireless control of the trailer lighting system (item 4820).The integrated lighting functions are triggered by the remote control receiver via three proportional channels.The following functions are possible:IndicatorHazard warning lightsDipped beamHigh beamFog lightRear fog lightReversing lightBrake lightActivate infrared transmitter diodeAdditional switching function 1 (500mA short-circuit proof) is also transmitted to the trailer system 4820./li>Additional switching function 2 (500mA short-circuit proof) is also transmitted to the trailer system 4820.Engine sound (optional module!)Horn (optional module!)The 12 functions are triggered on the remote control via a free servo channel. Each servo channel has 4 functions. Long and short up and down.Technical data:Operating voltage: 7,2/7,4-11,1V/12VSpeed controller:7,2-12V, 5A continuous current, 16kHz clock frequency for sensitive starting. Optimized for our 115-W motor.Connection: AMPDimensions of central board:Width: 50mm, depth: 40mm, height: 22mmDimensions of lighting board:Width: 48mm, depth: 26mm, height: 15mmScope of delivery:Central board with speed controller, lighting board front and rear, 5V bulb, mounting material and instructions.The new optional WEDICO-models sound module is simply plugged onto the MFL to save space.

Ready to ship in 5 days, delivery time 1-4 days

Product number: 11543

€ 279,00 *

Subscriptions

Fuses for 796, elec. Conditioning (798)

Available immediately, delivery time: 1-4 days

Product number: 4821

€ 9,40 * € 10,30 * (8.74% saved)

Subscriptions

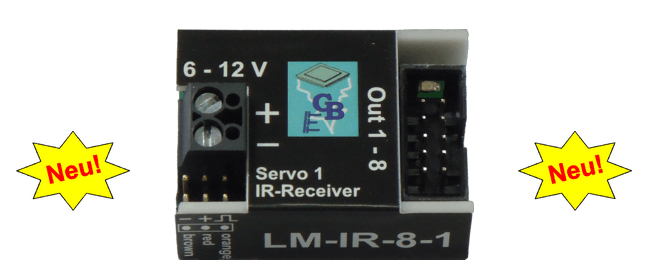

Infrared light module LM-IR-8-1 for the BEIER modules SFR-1

1x infrared light module LM-IR-8-1 for the BEIER modules USM-RC-2 and -RC-3, SFR-1, MSM-1 for controlling lights on semi-trailers. Also compatible with UFR-1230. This module is required in the semi-trailer!Description:With this additional module, both the lighting with numerous light effects and movements (servo and motor) on a truck trailer can be controlled.The (light) signals are transmitted wirelessly via an infrared diode. A connection cable between the truck and trailer is therefore not necessary. However, a separate battery must be installed in the trailer for the supply voltage.This module is suitable for expanding the Beier modules SFR-1, USM-RC-2, USM-RC-3, MSM-1 and UFR-1230.Light functions:The LM-IR-8-1 has 8 switching outputs for e.g. lamps and LEDs. The 8 outputs are a copy of the 8 switching outputs of the main module.Servo control:There is 1 servo output on the light module with which various movements can be controlled. Possible applications for this include the movement of trailer supports, locking and unlocking a saddle support, tilting movement for a tipper, steerable axles and many other movements.To control a motor, a speed controller can be connected to this servo output.Technical data:Voltage: 6-12V direct currentCurrent consumption:15mA quiescent currentSwitching outputs: 8, negative switchingOutput voltage: corresponds to the supply voltagemax. Continuous current: 1,5A/output, max. current of all outputs: 3A Servo outputs: 1Light functions:8, 1:1 copy of outputs 1 to 8 of the main module Servo output: 1, max. current consumption 1A, short-term 4ADimensions: 39x28x17mmWeight: 12gAmbient temperature: 0-60°CMany settings can be changed using the LM-Teacher software.This module comes with both the IR transmitter and the IR receiver diode!These infrared diodes are also available individually:IR transmitter diode (blue): article 9845IR receiver diode (red): article 9844Interference suppression is particularly important if trailer supports are also controlled! A ferrite ring should be used on the receiver diode as well as on the motor cable of the supports. The ferrite ring 11770 is recommended.Scope of delivery:Mini light module LM-IR-8-1IR transmitter diode (blue)IR receiver diode (red)1x ribbon cable (40cm) for connecting the switching outputsOperating instructions (German/English)

Available immediately, delivery time: 1-4 days

Product number: 13333

€ 69,95 *

Subscriptions

Servo add-on module, also f.Infrarot (792)

Servo auxiliary module, also f.Infrared (792). SOLD OUT!

No longer available

Product number: 4818

€ 56,79 * € 69,00 * (17.7% saved)

Subscriptions

Details

Infrared transmitter for tractors (790) For wireless

Infrared transmitter for tractors (790) For wireless transmission of lighting functions to the trailer using an infrared signal. Note: The infrared receiver (item 4820) must be installed in the trailer! The system transmits all light switching functions to the trailer. In addition, up to 3 switching functions (e.g. trailer supports, lifting axle, loading ramps) can be transmitted.

No longer available

Product number: 4817

€ 59,85 *

Subscriptions

Details

Ribbon cable 10-pin, gray. With 2 post connectors. (50

Ribbon cable 10-pin, grey. With 2 post connectors. (50cm). Length can be selected in 10cm increments. Ribbon cable 10-pin, grey. With 2 post connectors. (50cm). Length can be selected in 10cm increments.

Available immediately, delivery time: 1-4 days

Product number: 11580

€ 3,79 *

Subscriptions

Ribbon cable 10-pin, gray. With 2 post connectors. (30

Ribbon cable 10-pin, grey. With 2 post connectors. (30cm). Length can be selected in 10cm increments. Ribbon cable 10-pin, grey. With 2 post connectors. (30cm). Length can be selected in 10cm increments.

Available immediately, delivery time: 1-4 days

Product number: 12351

€ 3,79 *

Subscriptions

Ribbon cable 10-pin, gray. With 2 post connectors. (10

Ribbon cable 10-pin, gray. With 2 post connectors. (100cm). Length can be selected in 10 cm steps.

Available immediately, delivery time: 1-4 days

Product number: 12352

€ 3,79 *

Subscriptions

Lighting systems
